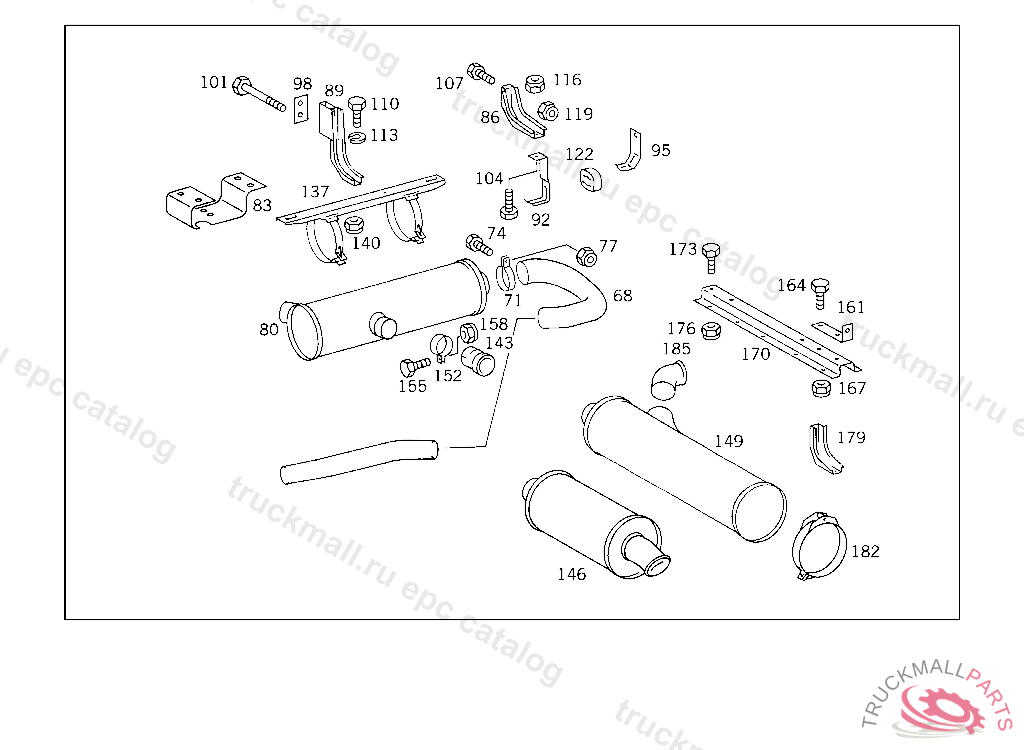

Поз.
Артикул
Описание
68
EXHAUST PIPE REAR EXHAUST PIPE TO MUFFLER
71
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
74
SCREW BRACKET TO SIDE MEMBER
74
SCREW , Replaced By: N304017010002
77
NUT , Replaced By: N910113010000
77
NUT STRAP TO BRACKET
80
EXHAUST MUFFLER RIGHT, Replaced By: A6454900001, +001A6994929890
80
EXHAUST MUFFLER FRONT, TRANSVERSE
83
CONSOLE EXHAUST MUFFLER,FRONT
86
CONSOLE REAR EXHAUST MUFFLER
89
SUPPORT , Replaced By: A6994902834
89
SUPPORT EXHAUST MUFFLER,LEFT
89
SUPPORT , Replaced By: A6994902934
89
SUPPORT , Replaced By: A6994902834
89
SUPPORT EXHAUST MUFFLER,LEFT
92
BRACKET EXHAUST MUFFLER
95
BRACKET REAR EXHAUST PIPE TO DAMPING PAD,5 193595
98
PLATE , Replaced By: A3874751584
98
SHIM BRACKET TO FRAME
101
SCREW MOUNTING TO SIDE MEMBER M 14X85
104
SCREW , Replaced By: N304017010040
104
SCREW STRUT TO CROSS MEMBER M 10X25
107
SCREW BRACKET TO SIDE MEMBER M 12X28
107
HEXAGON HEAD BOLT , Replaced By: A0029902704
107
SCREW , Replaced By: N308676012013
110
SCREW BRACKET TO FRAME M 12X35
113
SPRING WASHER CAB FLOOR
116
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
119
HEXAGON NUT. NUT SPRING BOLT
119
HEXAGON NUT. NUT SPRING BOLT
119
NUT , Replaced By: N910113012005
122
DAMPING PAD PARTICLE FILTER
137
SUPPORT EXHAUST MUFFLER,FRONT
137
SUPPORT , Replaced By: A6204900051
137
SUPPORT FRONT EXHAUST MUFFLER,5 193594
140
NUT , Replaced By: N913004008001
140
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
143
EXHAUST PIPE CONNECTING PIPE
146
EXHAUST MUFFLER LEFT
149
EXHAUST MUFFLER
152
CLAMP EXHAUST PIPE TO MUFFLER
155
SCREW END PIECE TO EXHAUST PIPE M 10X25
158
NUT , Replaced By: N910113010000
158
NUT STRAP TO BRACKET
161
ANGLE AIR RESERVOIR
164
SCREW BRACKET TO SIDE MEMBER M 12X28
164
SCREW BRACKET TO FRAME M 12X35
167
NUT , Replaced By: N910113012005
167
HEXAGON NUT. NUT SPRING BOLT
170
SUPPORT ROCKER PANEL
173
SCREW SUPPORT TO SIDE MEMBER
176
NUT , Replaced By: N910113012005
176
HEXAGON NUT. NUT SPRING BOLT
179
CONSOLE EXHAUST MUFFLER,FRONT
182
STRAP EXHAUST MUFFLER TO BRACKET
185
REAR EXHAUST PIPE (TAIL PIPE), NOT USED
