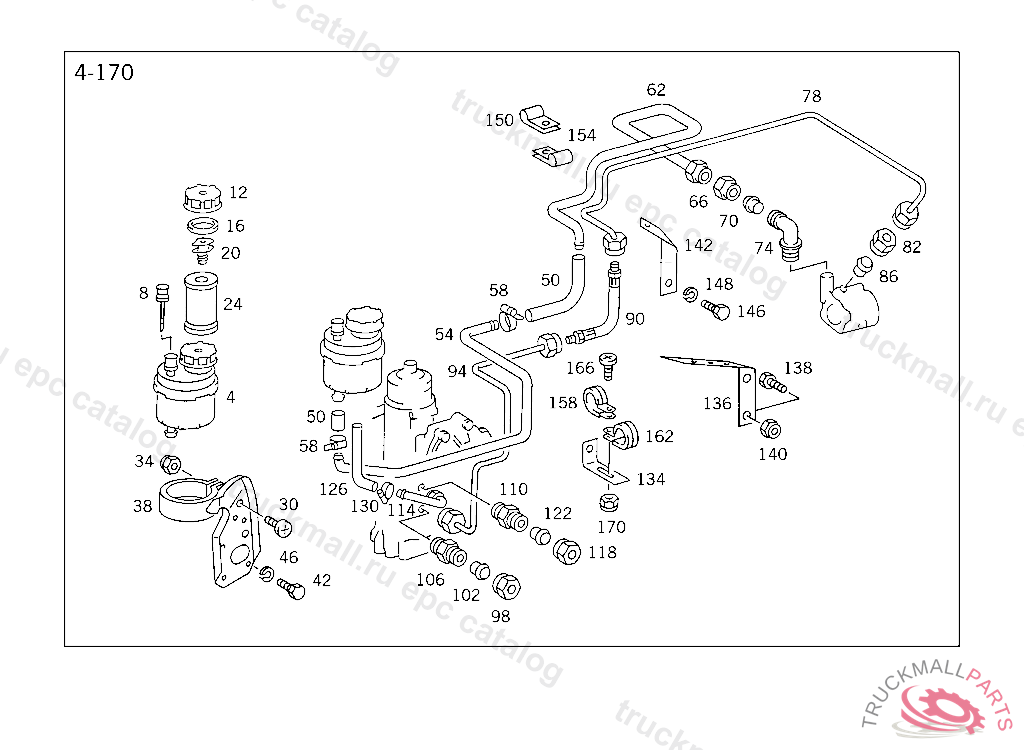

Поз.
Артикул
Описание
4
TANK OIL
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
12
FILLER CAP
16
SEAL RING
20
BRACKET
24
FILTER
24
FILTER
30
SCREW OIL TANK TO BRACKET
34
NUT OIL TANK TO BRACKET
34
NUT , Replaced By: N913002006009
38
BRACKET OIL TANK
38
BRACKET OIL TANK
42
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
42
SCREW , Replaced By: N304017010028
46
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
50
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
50
HOSE , Replaced By: A3859971582
54
LINE , NOT USED
54
LINE , NOT USED
58
CLAMP , Replaced By: N000000000667
58
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
62
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
62
LINE SUCTION LINE TO OIL PUMP
66
UNION NUT LINE CONNECTION, Replaced By: N000000006243
66
NUT LINE CONNECTION
70
SEAL CONE LINE CONNECTION
70
GLAND , Replaced By: A0019901267
74
FITTING SUCTION LINE TO OIL PUMP
78
LINE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
78
LINE FROM PUMP TO HIGH PRESSURE HOSE
82
UNION NUT LINE CONNECTION, Replaced By: N000000006239
82
UNION NUT LINE CONNECTION
86
SEAL CONE LINE CONNECTION
86
GLAND , Replaced By: A0019901967
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
94
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
94
LINE , NOT USED
98
UNION NUT LINE CONNECTION
98
UNION NUT LINE CONNECTION, Replaced By: N000000006239
102
SEAL CONE LINE CONNECTION
102
GLAND , Replaced By: A0019901967
106
SCREW-IN FITTING DELIVERY LINE TO PUMP
110
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
114
LINE FROM STEERING TO OIL TANK
118
UNION NUT LINE CONNECTION
122
GLAND LINE CONNECTION
126
HOSE , NOT USED
126
HOSE , Replaced By: A3859971682
126
HOSE , Replaced By: A6999974082
130
CLAMP HOSE TO FITTING AND TO OIL TANK
130
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
134
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
136
BRACKET DELIVERY AND SUCTION LINES TO FRAME
136
BRACKET DELIVERY AND SUCTION LINES TO FRAME
136
BRACKET , Replaced By: A6564660040
138
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
138
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
138
SCREW , Replaced By: N308676012026
140
NUT SUPPORT TO SIDE MEMBER
142
BRACKET DELIVERY AND SUCTION LINES TO FRAME
142
BRACKET FUEL LINES TO TRANSMISSION
146
SCREW END PIECE TO EXHAUST PIPE M 10X25
150
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
150
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
154
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
158
CLAMP DELIVERY AND SUCTION LINES TO FRAME
158
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
162
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
166
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
170
NUT , Replaced By: N913004006001
170
NUT PUMP TO BRACKET
999
DRAG LINK END , Replaced By: A0004602848
999
DRAG LINK END , Replaced By: A0004602948
999
PROTECTIVE CAP
999
STEERING SHAFT , USED WITH SHORT MERCEDES-BENZ CAB, Replaced By: A6504600209
999
DRAG LINK , Replaced By: A6204602805
999
DRAG LINK , Replaced By: A6204603805
999
DRAG LINK , Replaced By: A6204603705
999
DRAG LINK , Replaced By: A6204603905
999
NUT STRAP TO BRACKET
999
NUT , Replaced By: N910113010000
