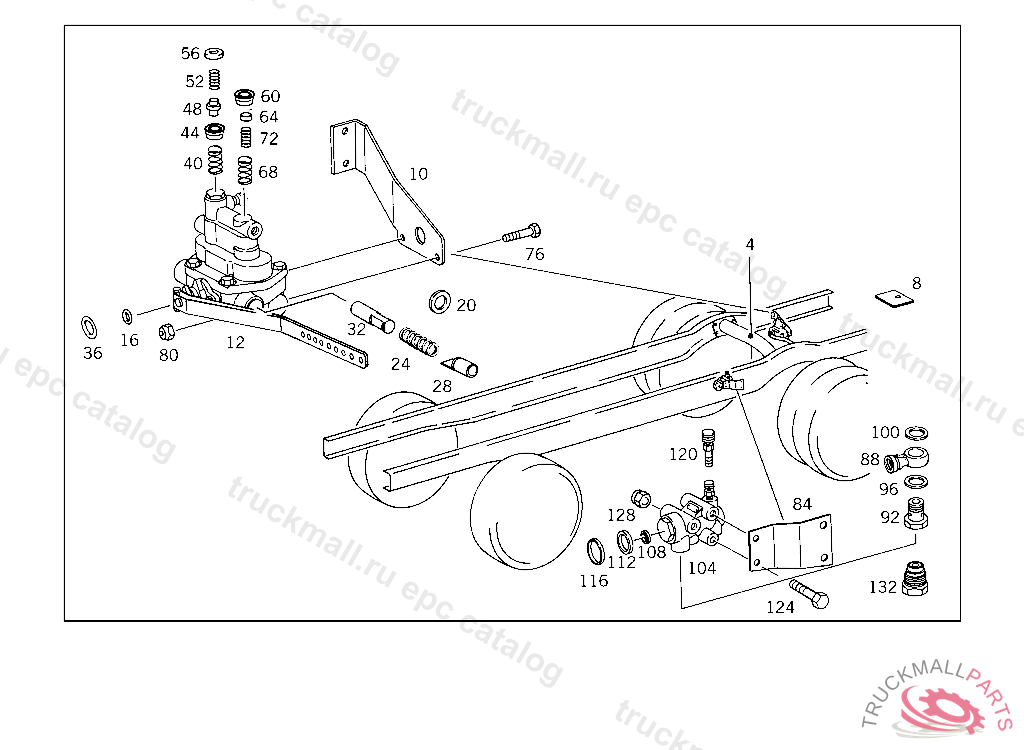

Поз.
Артикул
Описание
4
CROSS MEMBERN 0.6
8
BRACKET BRAKE LINES TO CROSS MEMBER
10
BRACKET BRAKE POWER REGULATOR
12
BRAKE PRESSURE REGULATOR
16
SEAL RING
20
SEAL RING BOTTOM RIGHT
24
SPRING BOTTOM RIGHT
28
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
32
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
36
SEAL RING FRONT BOTTOM 31X1.5
40
SPRINGTO 000 431 46 12,001 431 12 12
44
SEAL RINGTO 000 431 43 12,000 431 44 12
48
VALVE PART
52
SPRING
56
SEAL RING
60
SEAL RING
64
GUIDE BUSHING
68
SPRINGTO 000 431 46 12,001 431 12 12
72
SPRING
76
SCREW MOUNTING AND RAIL TO LEAF SPRING
80
NUT STRAP TO BRACKET
80
NUT , Replaced By: N910113010000
84
BRACKET PRESSURE REGULATOR VALVE
88
CONNECTOR MASTER CYLINDER,CONNECTION "2.1",4 338292
92
HOLLOW SCREW CONNECTION "2.1",4 314611
96
SEAL RING PRESSURE REGULATOR VALVE
100
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
104
VALVE PRESSURE REGULATOR,4 478330
108
SEAL RINGTO 000 431 46 13,4 478330
112
SEAL RINGTO 000 431 46 13,4 478330
116
SEAL RINGWABCO
116
SEAL RING , Replaced By: A0019975945
120
VALVE , Replaced By: A3075530107
120
VALVE CLUTCH SLAVE CYLINDER
124
SCREW REAR AXLE REGULATING SOLENOID VALVE
128
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
128
NUT , Replaced By: N913004008001
128
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
132
SCREW PLUG CONNECTION "1","2",4 478330
999
LEVER TOOTHED
999
LEVER
999
VALVE PRESSURE REGULATOR,4 478330
999
SEAL RINGTO 000 431 46 13,4 478330
