Mercedes N000000005892 - Хомут 130 / 150 X 13

1422 F,1424 F,1426 F, 1427 F,1431 F 651.087

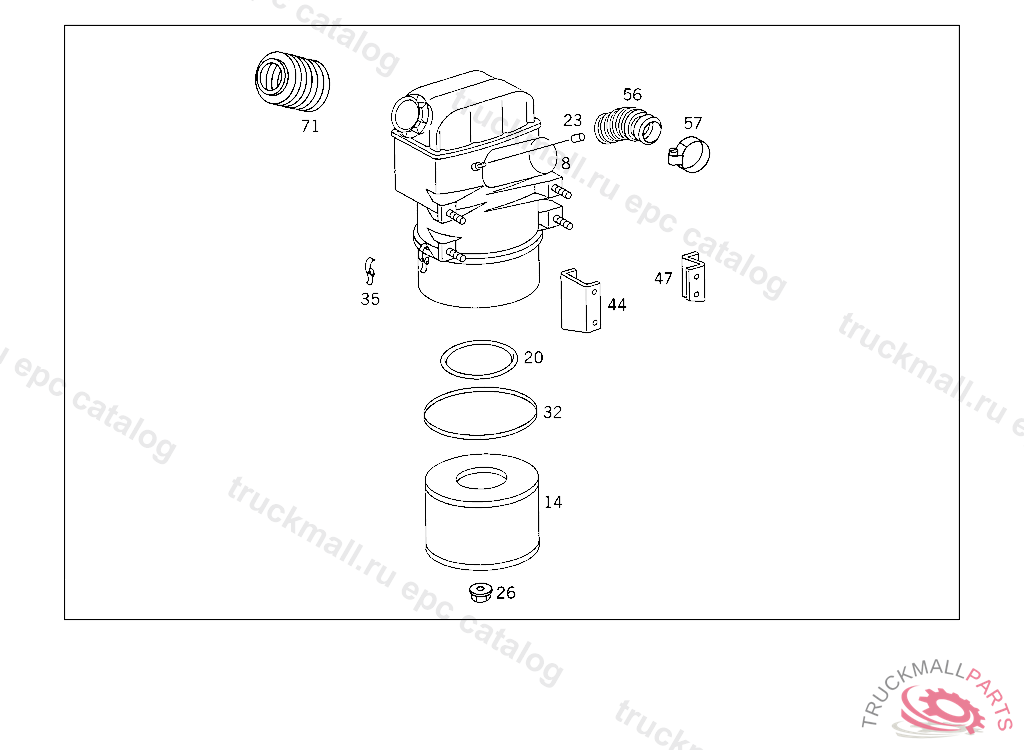

52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE IL. 1

Поз.
Артикул
Описание
8
A0160948802
AIR CLEANER
8
A0160945702
AIR CLEANER
14
A0030944204
FILTER ELEMENT AIR CLEANER
14
A0030944904
FILTER ELEMENT AIR CLEANER
20
A0000941560
SEAL RING AIR CLEANER ELEMENT
23
A0000940276
WASHER FELT
26
A0009901550
NUT
32
A0010949280
GASKET AIR CLEANER BOWL
35
A0000941255
FASTENER
44
A6555282640
BRACKET AIR CLEANER,FRONT RIGHT
44
A6455281440
BRACKET , Replaced By: A6555282640
47
A6455281840
BRACKET AIR CLEANER,REAR RIGHT
47
A6455281540
BRACKET AIR CLEANER,REAR RIGHT
47
A6455281640
BRACKET AIR CLEANER,FRONT LEFT
47
A6555282540
BRACKET AIR CLEANER,FRONT LEFT
56
A6555280182
HOSE FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
57
N000000005892
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
57
N916017130000
CLAMP , Replaced By: N000000000678
57
N000000000678
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
71
A6505280091
BOOT
999
A0000900507
HOUSINGTO 014 094 93 02
999
A0009903978
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
A0009904278
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
A6525200406
PIPE ELBOW OIL REFILLING
999
A6525280582
HOSE PIPE ELBOW
999
A6555280940
BRACKET OIL DIPSTICK GUIDE TUBE
