Mercedes
TRUCK
1422 F,1424 F,1426 F, 1427 F,1431 F
651.087
46 STEERING

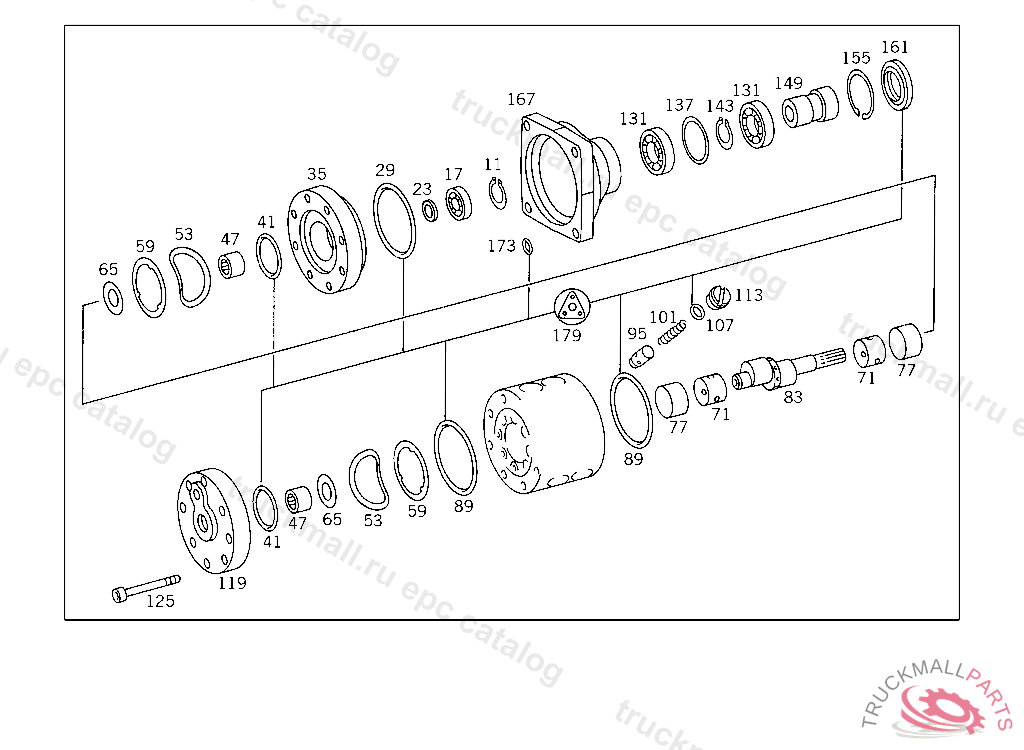

001 POWER STEERING PUMP,BELT DRIVEN IL.2

Mercedes N000471020001 - ПРЕДОХРАНИТЕЛЬ

1422 F,1424 F,1426 F, 1427 F,1431 F 651.087

46 STEERING - 001 POWER STEERING PUMP,BELT DRIVEN IL.2

Поз.
Артикул
Описание
11
N000471020001
LOCK RING
17
N000625900200
GROOVED BALL BEARING
23
A0004660151
SPACER RING
29
A0239979748
SEAL RING P.T.O.
29
A0109977348
SEAL RING , Replaced By: A0239979748
35
A0004665405
COVER
41
A0119978948
SEAL RING
47
A0049819510
NEEDLE BEARING
53
A0004661875
WASHER
59
A0004660093
SPRING
65
A0004661852
SPACER WASHER
71
A0004660750
BUSHING
77
A0004660950
BUSHING
83
A0004662520
DRIVE SHAFT
89
A0119979048
SEAL RING
95
A0004662583
PISTON
101
A0059934001
SPRING
107
A0069978648
SEAL RING
113
A0004660871
SCREW
119
A0004669505
COVER
125
N000912008083
SCREW SECONDARY PUMP
125
N000912010186
SCREW
131
N000625506007
GROOVED BALL BEARING
137
A0004662475
WASHER
143
N000471035002
LOCK RING
149
A0004660858
CONNECTOR
155
N000472062002
LOCK RING
161
A0149972547
SEAL RING
167
A0004661145
FLANGE
173
A0139976348
SEAL RING
179
A0004603361
GASKET KIT POWER STEERING PUMP AT TRANSMISSION
999
A3141550528
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
999
A3521550272
NUT TIGHTENER PULLEY TO LEVER
999
A3524660271
SCREW POWER STEERING PUMP BRACKET
999
A3641550028
CLAMPING PIECE TIGHTENER PULLEY
999
A4031500572
CLAMPING BOLT FOR V-BELT TENSIONING
999
A4031550250
BUSHING
999
A6254660052
SPACER WASHER
999
N000931010264
SCREW RADIATOR M 10X45
999
N000933008147
SCREW , Replaced By: N304017008021
999
N000960012189
SCREW , Replaced By: N308676012031
999
N304017008021
SCREW PIPE CLAMP
999
N308676012011
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
999
N308676012031
SCREW , Replaced By: N308676012011
999
N910113010000
NUT STRAP TO BRACKET
999
N910113012002
NUT SUPPORT TO SIDE MEMBER
999
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
N913004010008
NUT , Replaced By: N910113010000
