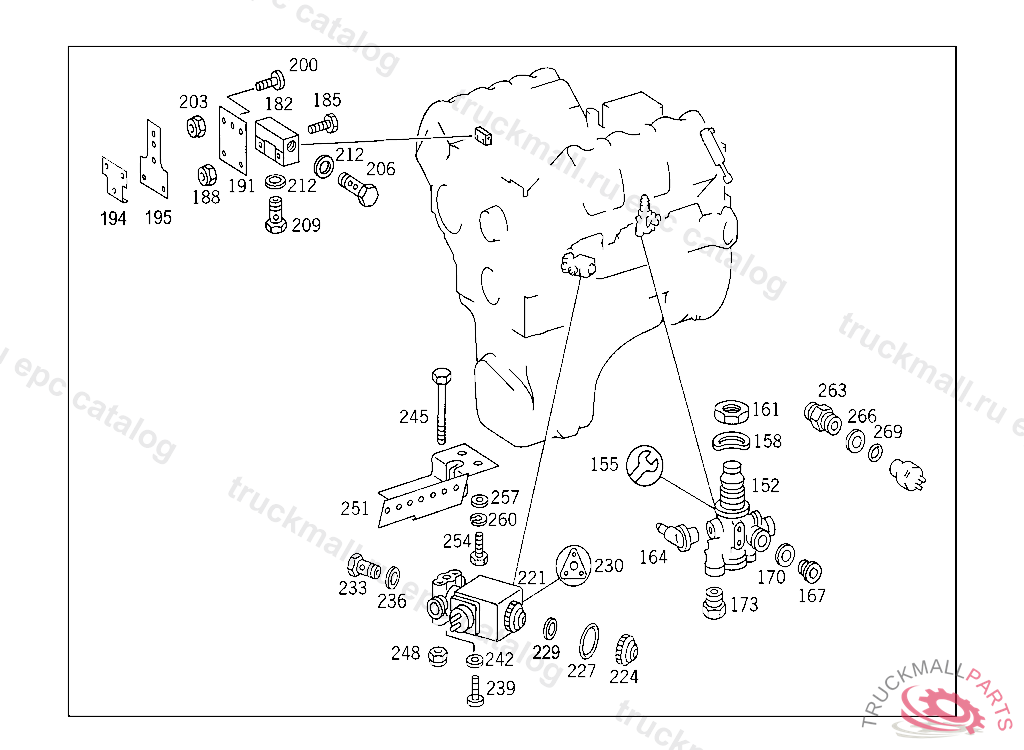

Поз.
Артикул
Описание
152
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
152
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
155
REPAIR KIT 3/2-WAY VALVE WABCO
155
REPAIR KIT 3/2-WAY VALVE BOSCH
158
SPRING WASHER AT CAB FLOOR
161
NUT SUCTION LINE TO OIL PUMP
164
BREATHER , Replaced By: A3933280065
164
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
167
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
167
SCREW PLUG , Replaced By: N000908012009
170
SEAL RING LINE CONNECTION
173
SCREW. UNION SCREW , Replaced By: A0009973734
173
SCREW. UNION SCREW LINE CONNECTION
182
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
185
SCREW TWO-WAY VALVE TO BRACKET
188
NUT TWO-WAY VALVE TO BRACKET
191
BRACKET 3/2-WAY SOLENOID VALVE
194
BRACKET CONNECTOR TO FRAME
200
SCREW CLAMP MOUNTING M 6X16
200
SCREW , Replaced By: N000000001146
203
NUT , Replaced By: N913004006001
203
NUT PUMP TO BRACKET
206
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
209
HOLLOW SCREW FUEL LINE TO FEED PUMP
209
HOLLOW SCREW , Replaced By: N915036010108
212
SEAL RING FUEL LINE TO FEED PUMP
221
VALVE (3/2-WAY SOLENOID VALVE) EKS
224
PROTECTIVE CAPWABCO
227
SEAL RINGWABCO
227
SEAL RINGBOSCH
229
SEAL RINGBOSCH
230
GASKET KITKNORR
233
HOLLOW SCREW HEATING CONNECTION
236
SEAL RING LINE CONNECTION
239
SCREW TO PLUG THE FREE CONNECTIONS
242
SEAL RINGBOSCH
245
SCREW VALVE TO BRACKET
245
SCREW VALVE TO BRACKET, Replaced By: N304014008002
248
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
248
NUT , Replaced By: N913004008001
248
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
251
BRACKET 3/2-WAY SOLENOID VALVE
251
BRACKET 3/2-WAY SOLENOID VALVE
254
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
254
SCREW , Replaced By: N304017008016
257
WASHER , Replaced By: N000125008443
257
WASHER EXHAUST MUFFLER TO STRAP
260
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
263
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
263
FITTING CONNECTION TO STOP LIGHT SWITCH
266
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
266
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
269
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SHIM 3/2-WAY SOLENOID VALVE
