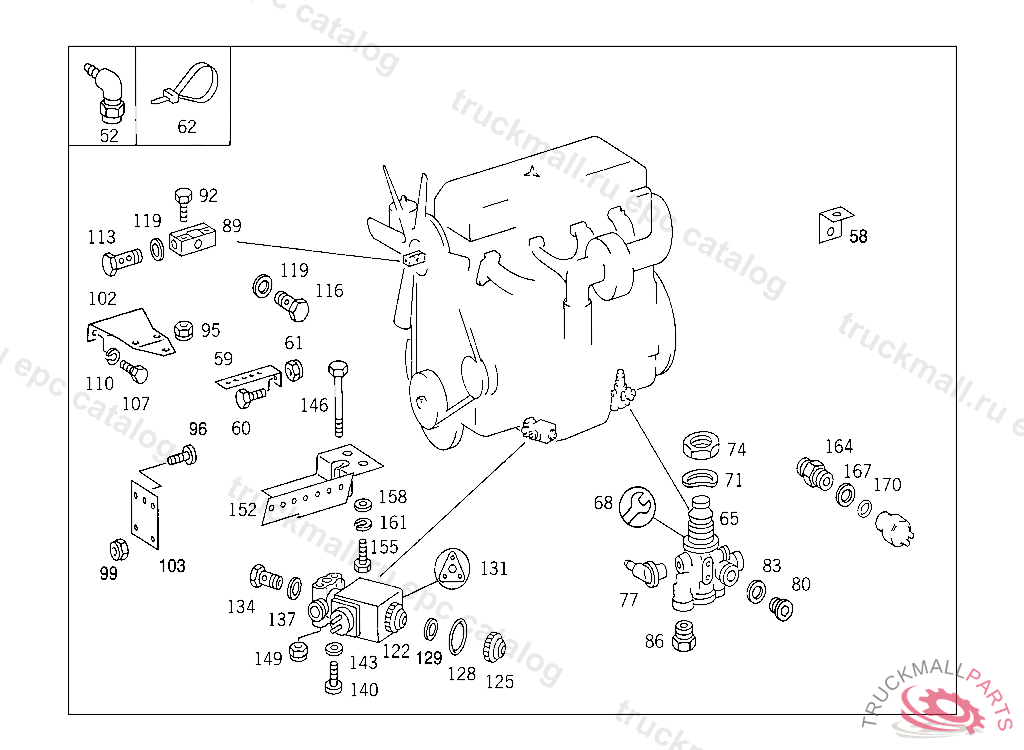

Поз.
Артикул
Описание
52
ELBOW FITTING
58
ANGLE LINE MOUNTING
59
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
60
SCREW REDUCTION VALVE TO BRACKET
60
SCREW , Replaced By: A0079900801
61
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
61
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
61
NUT , Replaced By: N913004008001
62
LOOM TIE LINE MOUNTING 280 MM
62
LOOM TIE LINE MOUNTING
65
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
65
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
68
REPAIR KIT 3/2-WAY VALVE WABCO
71
SPRING WASHER AT CAB FLOOR
74
NUT SUCTION LINE TO OIL PUMP
77
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
77
BREATHER , Replaced By: A3933280065
80
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
80
SCREW PLUG , Replaced By: N000908012009
83
SEAL RING LINE CONNECTION
86
SCREW. UNION SCREW LINE CONNECTION
86
SCREW. UNION SCREW , Replaced By: A0009973734
89
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
92
SCREW TWO-WAY VALVE TO BRACKET
95
NUT TWO-WAY VALVE TO BRACKET
96
SCREW OIL TANK TO BRACKET
99
NUT PUMP TO BRACKET
99
NUT , Replaced By: N913004006001
102
BRACKET LINE MOUNTING
107
SCREW END PIECE TO EXHAUST PIPE M 10X25
110
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
113
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
116
HOLLOW SCREW FUEL LINE TO FEED PUMP
116
HOLLOW SCREW , Replaced By: N915036010108
119
SEAL RING FUEL LINE TO FEED PUMP
122
VALVE (3/2-WAY SOLENOID VALVE) EKS
122
VALVE , Replaced By: A0049975736
125
PROTECTIVE CAPWABCO
128
SEAL RINGBOSCH
128
SEAL RINGWABCO
129
SEAL RINGBOSCH
131
GASKET KITKNORR
134
HOLLOW SCREW HEATING CONNECTION
137
SEAL RING LINE CONNECTION
140
SCREW TO PLUG THE FREE CONNECTIONS
143
SEAL RINGBOSCH
146
SCREW VALVE TO BRACKET
146
SCREW VALVE TO BRACKET, Replaced By: N304014008002
149
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
149
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
149
NUT , Replaced By: N913004008001
152
BRACKET 3/2-WAY SOLENOID VALVE
152
BRACKET 3/2-WAY SOLENOID VALVE
155
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
155
SCREW , Replaced By: N304017008016
158
WASHER EXHAUST MUFFLER TO STRAP
158
WASHER , Replaced By: N000125008443
161
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
164
FITTING CONNECTION TO STOP LIGHT SWITCH
164
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
167
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
167
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
170
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SHIM 3/2-WAY SOLENOID VALVE
