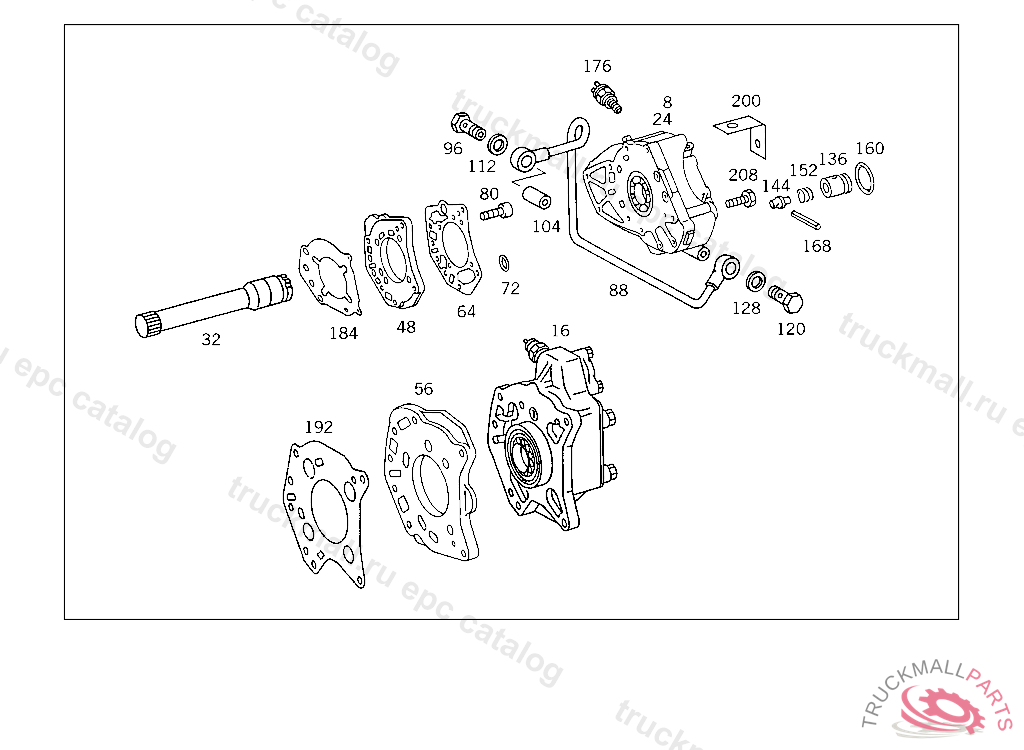

Поз.
Артикул
Описание
8
P.T.O. FOR BREAK-DOWN,SEE SA: 20492/15
8
P.T.O. FOR BREAK-DOWN,SEE SA: 20624/01
8
P.T.O. , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3872608405
16
P.T.O. , Replaced By: A3892601710, +001A9452610080, +001A3892640587, +011N910105010011
16
P.T.O.NA 4/120-1C-Z
24
P.T.O. FOR BREAK-DOWN,SEE SA: 20492/14
24
P.T.O. FOR BREAK-DOWN,SEE SA: 20492/13
24
P.T.O. FOR BREAK-DOWN,SEE SA: 20492/12
24
P.T.O. FOR BREAK-DOWN,SEE SA: 20492/04
24
P.T.O. , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3872608205
32
INTERMEDIATE SHAFT , Replaced By: A3892640505
32
INTERMEDIATE SHAFT WITH RETARDER
32
INTERMEDIATE SHAFTND0/1/2/3/7/8/9
32
INTERMEDIATE SHAFT WITH RETARDER
48
INTERMEDIATE FLANGE P.T.O. TO TRANSMISSION
48
INTERMEDIATE FLANGE P.T.O. TO TRANSMISSION
56
INTERMEDIATE FLANGE P.T.O. TO TRANSMISSION
56
INTERMEDIATE FLANGE P.T.O. TO TRANSMISSION
56
INTERMEDIATE FLANGE P.T.O. TO TRANSMISSION
56
INTERMEDIATE FLANGE P.T.O. TO TRANSMISSION
64
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3892611980
64
GASKET INTERMEDIATE FLANGE TO TRANSMISSION CASE
72
SEAL RING SHIFTING CYLINDER 5X3
80
SCREW INTERMEDIATE FLANGE TO TRANSMISSION CASE
88
PIPE OIL LINE TO TRANSMISSION
88
PIPE , Replaced By: A3872608485, +001A3872601462, +001N000125101532, +001N001593013001, +001N003901010001, +001N914125006300
96
HOLLOW SCREW PUMP CONNECTION
104
BUSHING PUMP CONNECTION
112
SEAL RING ON OIL PUMP HOUSING
120
HOLLOW SCREW , Replaced By: N915036010108
120
HOLLOW SCREW FUEL LINE TO FEED PUMP
128
SEALING RING. SEAL RING ENGINE BREATHING
136
BALL TRANSMISSION CASE REAR PART
144
SELECTOR VALVE OIL FLOW CONTROL
152
SPRING OIL FLOW CONTROL
160
SEAL RING OIL FLOW CONTROL
168
CLAMPING SLEEVE4X12 MM,TO 000 553 23 01,
176
SWITCH
176
SWITCH
176
SWITCH , Replaced By: A0015455709
184
GASKET P.T.O. TO TRANSMISSION
184
GASKET P.T.O. TO TRANSMISSION
184
BRACKET P.T.O. HOUSING
192
GASKET P.T.O. HOUSING
200
ANGLE LINE MOUNTING
208
SCREW TRANSMISSION CASE TO TRANSMISSION CASE
208
SCREW TRANSMISSION CASE TO TRANSMISSION CASE
