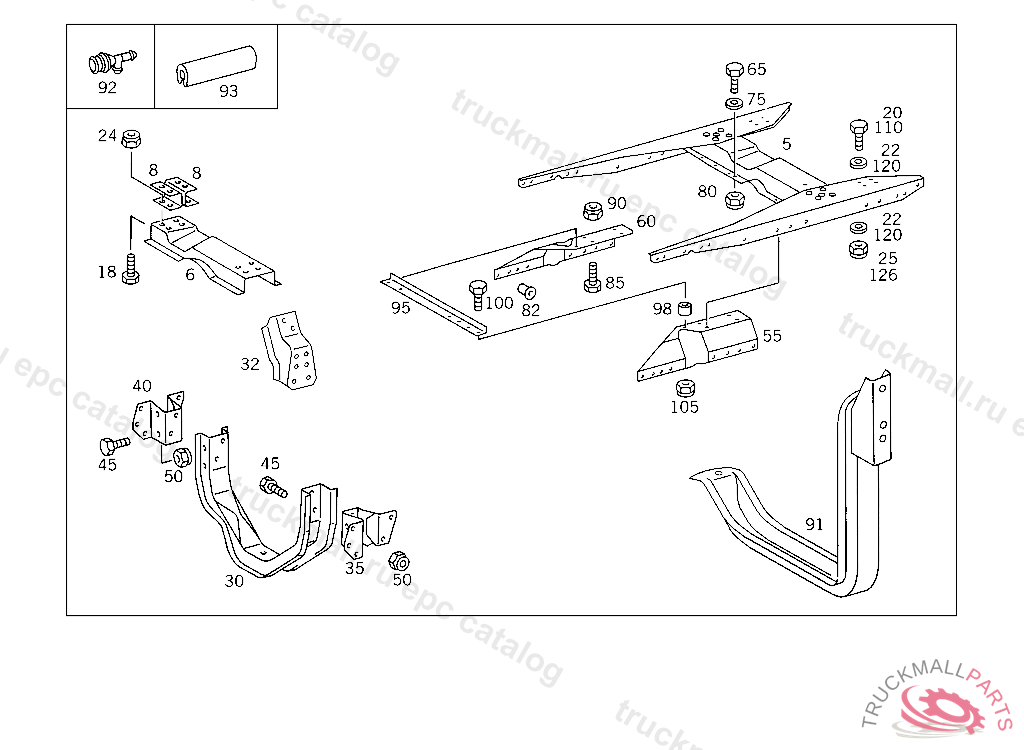

Поз.
Артикул
Описание
5
CROSS MEMBER
6
CROSS MEMBER BATTERY/APPARATUS SUPPORT NO.3, TO BE ADAPTED DURING ASSEMBLY
8
STRUT ANGLE TO CROSS MEMBER,TOP
8
STRUT ANGLE TO CROSS MEMBER,TOP
18
SCREW STRUT TO CONSOLE
18
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
18
SCREW , Replaced By: N308676012012
20
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
22
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
24
NUT STRAP TO SUPPORT
24
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
24
NUT , Replaced By: N910113012003
25
NUT , Replaced By: N910113012003
25
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
30
CROSS MEMBER ENGINE SUSPENSION
30
CROSS MEMBER
30
CROSS MEMBER , Replaced By: A6163120210
32
BRACKET , Replaced By: A6163120040
32
BRACKET LEFT AND RIGHT
35
CONSOLE , Replaced By: A6163100351
35
CONSOLE LEFT, TO BE ADAPTED DURING ASSEMBLY
40
CONSOLE RIGHT, TO BE ADAPTED DURING ASSEMBLY
40
CONSOLE , Replaced By: A6163100451
45
SCREW , Replaced By: N308676014008
45
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
45
SCREW MOUNTING TO CONSOLE M 14X35
45
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
45
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
NUT STEERING SUPPORT TO FRAME
50
NUT BRACKET TO SIDE MEMBER
50
NUT , Replaced By: N910113014001
50
NUT , Replaced By: N910113014000
55
GUSSET PLATE BOTTOM LEFT
55
GUSSET PLATE BOTTOM LEFT,5 411575
55
GUSSET PLATE BOTTOM LEFT
55
GUSSET PLATE BOTTOM LEFT
60
GUSSET PLATE BOTTOM LEFT
60
GUSSET PLATE BOTTOM RIGHT
60
GUSSET PLATE BOTTOM RIGHT,5 411575
65
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
65
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
65
SCREW , Replaced By: N308676012012
75
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
80
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
80
NUT , Replaced By: N910113012003
82
RIVET FRAME TRUSS TO SIDE MEMBER
82
RIVET REAR CROSS MEMBER 12X42 MM
85
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
85
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
85
SCREW , Replaced By: N308676012013
85
SCREW , Replaced By: N308676012012
85
HEXAGON HEAD BOLT , Replaced By: A0029902704
90
NUT BRACKET TO SIDE MEMBER
90
NUT , Replaced By: N910113012003
90
NUT , Replaced By: N910113014001
90
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
91
SUPPORT FUEL TANK
92
BRACKET FRONT AND REAR EXHAUST MUFFLERS,5 765950
92
BRACKET ,5 765950, Replaced By: A6174911841
92
BRACKET , Replaced By: A6524912341
93
EDGE GUARD SECTION , Replaced By: A0019872272
93
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
95
BRACKET CABLE HARNESS MOUNTING
98
SPACER RING BRACKET TO ANGLE
100
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
105
NUT SUPPORT TO SIDE MEMBER
110
SCREW EXHAUST PIPE TO BRACKET
110
SCREW , Replaced By: N000933010094
110
SCREW BRACKET TO FRAME M 12X35
120
WASHER STRUT TO CROSS MEMBER
120
WASHER , Replaced By: N007349010007
120
WASHER , Replaced By: N007349013005
120
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
126
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
126
NUT , Replaced By: N910113012003
999
ANGLE BOTTOM LEFT
999
ANGLE BOTTOM RIGHT
999
ANGLE TOP LEFT
999
ANGLE TOP RIGHT
999
CROSS MEMBER TRANSMISSION MOUNTING, TO BE ADAPTED DURING ASSEMBLY
999
ANGLE BOTTOM LEFT,5 297102
999
ANGLE BOTTOM RIGHT,5 297102
999
MOUNTING ANGLE ROCKER PANEL TO FRAME
999
GUSSET PLATE BOTTOM LEFT
999
GUSSET PLATE BOTTOM RIGHT
999
GUSSET PLATE BOTTOM RIGHT
999
STRUT BOTTOM RIGHT
999
GUSSET PLATE TOP LEFT, TO BE ADAPTED DURING ASSEMBLY
999
GUSSET PLATE TOP RIGHT, TO BE ADAPTED DURING ASSEMBLY
