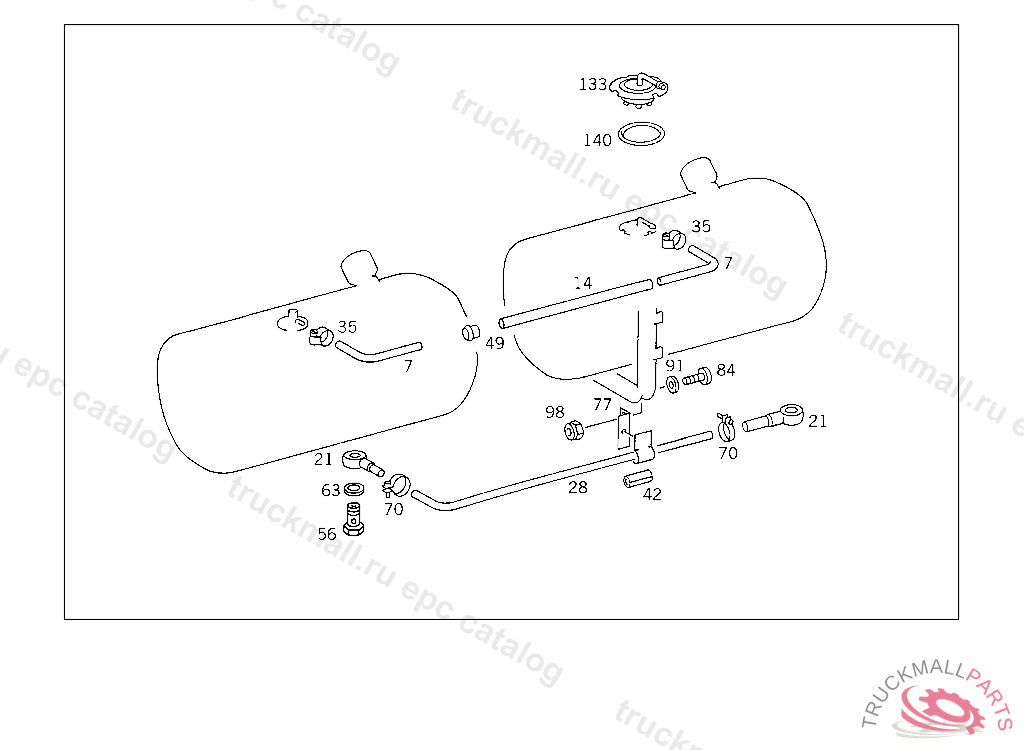

Поз.
Артикул
Описание
7
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
7
PLASTIC PIPE RISING PIPE 4X6 MM
7
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
14
HOSE LEAK LINE, ORDER BY THE METER
21
LINE WITH BANJO UNION
28
HOSE LEAK LINE
35
CLAMP LINE MOUNTING
42
RUBBER PAD FUEL LINE TO BRACKET
49
SLEEVE LEAK LINE
56
HOLLOW SCREW FUEL LINE TO FEED PUMP
56
HOLLOW SCREW , Replaced By: N915036010108
63
SEAL RING FUEL LINE TO FEED PUMP
70
CLAMP LINE MOUNTING
77
BRACKET FUEL LINE
84
SCREW HOOK TO BRACKET
84
SCREW HOOK TO BRACKET
84
SCREW , Replaced By: N007985005175
91
WASHER BOOT TO CAB FLOOR
91
WASHER , Replaced By: N000433005304
98
NUT HOOK TO BRACKET
98
NUT , Replaced By: N910113005001
133
COVERING FUEL GAUGE
140
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
999
COVER ,K 169123K 208916, Replaced By: A0004710167
999
COVER BREATHING
999
CONNECTOR , Replaced By: A0039908270
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
CONNECTOR BREATHER LINE CONNECTION
999
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SUPPORT FUEL TANK,FRONT AND REAR
999
PROTECTIVE PLATE TO MOUNT FUEL LINES
999
SCREW PROTECTION PLATE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
NUT BALL PIVOT TO LEVER
999
NUT , Replaced By: N304032005005
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
BANJO UNION , Replaced By: N000000000363
