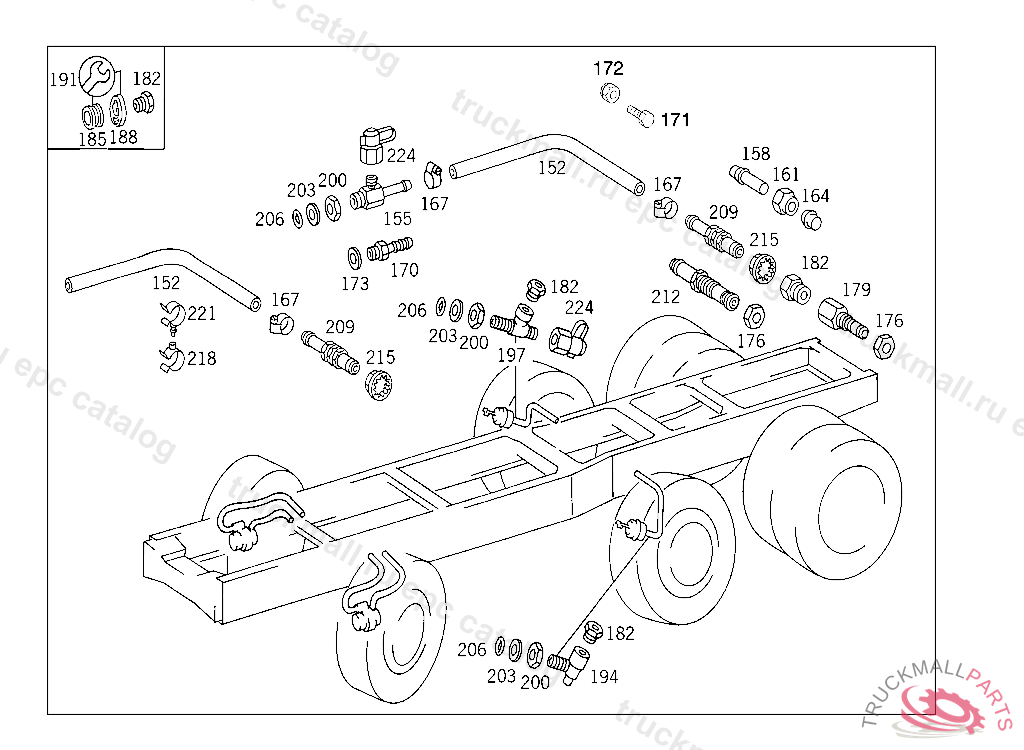

Поз.
Артикул
Описание
152
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
155
FITTING FRONT AND REAR AXLE BRAKE CYLINDERS, NOT USED
158
FITTING DIAPHRAGM CYLINDER,CONNECTION:
161
UNION NUT LINE CONNECTION
161
UNION NUT LINE CONNECTION, Replaced By: N000000006239
164
SEAL CONE LINE CONNECTION
164
GLAND , Replaced By: A0019901967
167
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
167
CLAMP HOSE TO FITTING AND TO OIL TANK
170
FITTING DIAPHRAGM CYLINDER,CONNECTION:
173
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
176
NUT BRACKET TO SIDE MEMBER
179
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
182
SCREW. UNION SCREW LINE CONNECTION
182
SCREW. UNION SCREW , Replaced By: A0009973734
182
SCREW. UNION SCREW LINE CONNECTION
185
LOCK RING LINE CONNECTION
185
SEAL RING , Replaced By: A0009940747
185
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
188
LOCK LINE CONNECTION
188
LOCK , Replaced By: A0009945448
188
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
191
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
191
REPAIR KIT , Replaced By: A0309971748
191
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
194
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
197
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
200
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
203
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
206
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
209
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
215
LOCK REAR AXLE BRAKE HOSE,K 181360
218
CLAMP BRAKE HOSE
221
CLAMP BRAKE HOSE
224
TEST CONNECTION
224
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
BRACKET COMPRESSED AIR LINES
999
BRACKET TEST CONNECTION
