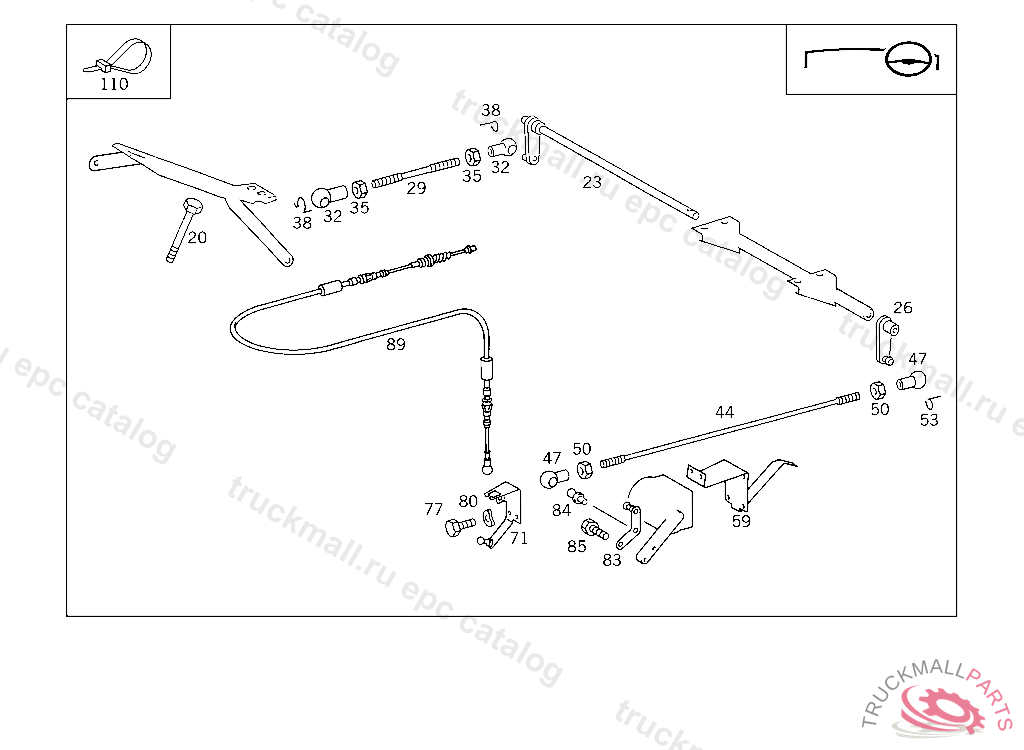

Поз.
Артикул
Описание
20
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
20
SCREW , Replaced By: N304017008028
23
SHAFT (CONTROL SHAFT)
26
LEVER , Replaced By: N071805010204, +002N071805010403, +002N304032006008, +001N900331006615
26
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
26
LEVER (CONTROL LEVER)
29
PULL ROD ENGINE CONTROL, TO BE ADAPTED DURING ASSEMBLY
32
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
35
NUT BALL PIVOT TO LEVER
38
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
44
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
47
BALL SOCKET PULL ROD TO LEVER
47
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
50
NUT BALL PIVOT TO LEVER
53
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
59
BRACKET SENDER UNIT
71
BRACKET WIRE CABLE
77
SCREW PUMP TO BRACKET
77
SCREW , Replaced By: N304017006016
80
SPRING WASHER LICENSE PLATE TO BRACKET
83
BRACKET CONTROL LEVER
84
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
84
BALL STUD. BALL PIVOT TOP B10X4,5 MM
84
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
85
SCREW , Replaced By: N304017006018
85
SCREW COVER PLATE TO COVER PLATE M 6 X 12
89
WIRE CABLE EMERGENCY DRIVE REGULATION
110
LOOM TIE LINE MOUNTING 280 MM
999
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
999
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
999
COVERING INTERMEDIATE BEARING
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
ROD LOAD SENSOR CONTROL
999
LEVER INTERMEDIATE BEARING
999
BEARING BRACKET INTERMEDIATE BEARING
999
LEVER (INTERMEDIATE LEVER)
999
LEVER INTERMEDIATE BEARING
999
ACCELERATOR PEDAL , Replaced By: A6583000004
999
BEARING BRACKET INTERMEDIATE BEARING
999
LEVER (INTERMEDIATE LEVER)
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
999
BEARING BRACKET INTERMEDIATE LEVER
999
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
999
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
999
BRACKET WIRE CABLE TO AIR BAFFLE BRACKET
999
KNOB IDLING ADJUSTMENT
999
BEARING BRACKET INTERMEDIATE BEARING
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
WIRE CABLE MANUAL CONTROL
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
WIRE CABLE MANUAL CONTROL
999
WIRE CABLE MANUAL CONTROL
999
SHIM
999
BRACKET WIRE CABLE TO RADIATOR MOUNTING
999
LEVER (INTERMEDIATE LEVER)
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
BEARING BRACKET INTERMEDIATE BEARING,5 324164
999
LEVER (INTERMEDIATE LEVER)
999
ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT,K 093739
