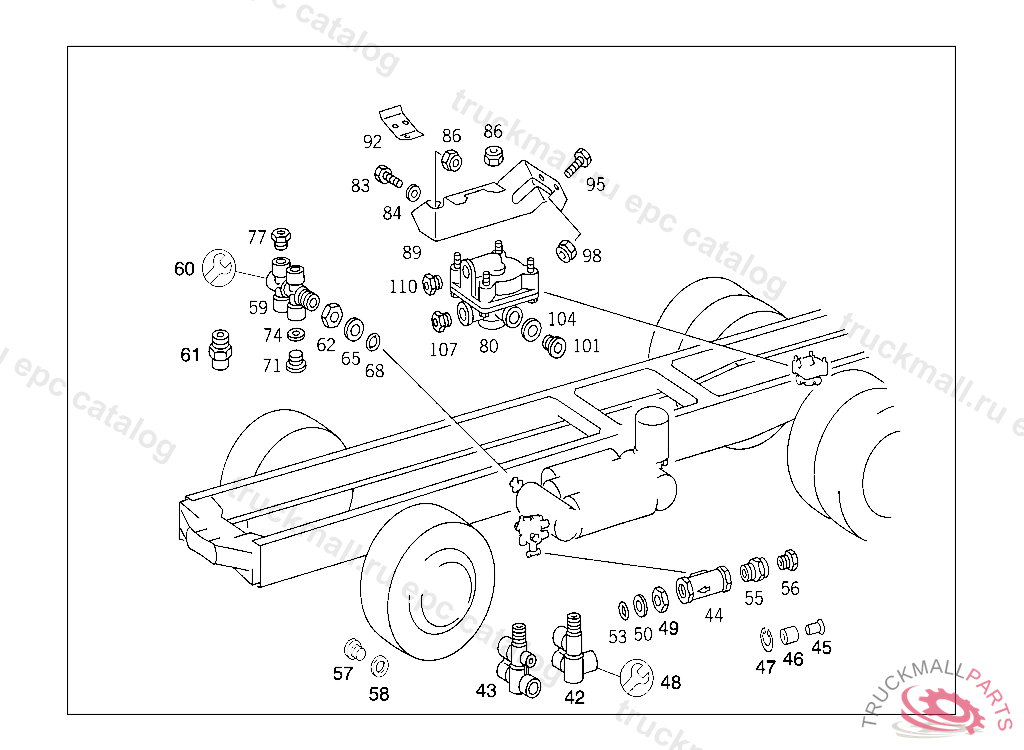

Поз.
Артикул
Описание
42
VALVE (CHECK VALVE),EPS & CLUTCH BOOSTER
43
T-FITTING WITH CHECK VALVE,K 169316
44
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
45
VALVE SEAT RINGWABCO,5 433388
46
BUSHINGWABCO,5 433388
47
LOCK RINGWABCO,5 433388
48
REPAIR KIT CHECK VALVE VOSS
55
FITTING LINE CONNECTION
56
SCREW. UNION SCREW LINE CONNECTION
56
SCREW. UNION SCREW LINE CONNECTION
59
DISTRIBUTOR WITH CHECK VALVE
60
REPAIR KIT CHECK VALVE VOSS
61
FITTING LINE CONNECTION
62
NUT CHECK VALVE TO AIR RESERVOIR
65
THRUST RING CHECK VALVE TO AIR RESERVOIR
65
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
68
O-RING CHECK VALVE TO AIR RESERVOIR
71
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
71
SCREW PLUG , Replaced By: N000908022011
74
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
77
SCREW. UNION SCREW LINE CONNECTION
80
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
80
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
83
SCREW SUPPORT TO FENDER
84
WASHER BRACKET TO CROSS MEMBER
86
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
86
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
86
NUT , Replaced By: N913004008001
92
BRACKET BRACKET TO SUPPORT
101
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
101
SCREW PLUG , Replaced By: N000908022011
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
107
SCREW. UNION SCREW LINE CONNECTION
110
SCREW. UNION SCREW LINE CONNECTION
110
SCREW. UNION SCREW , Replaced By: A0009973734
999
VALVEWABCO
