Поз.
Артикул
Описание

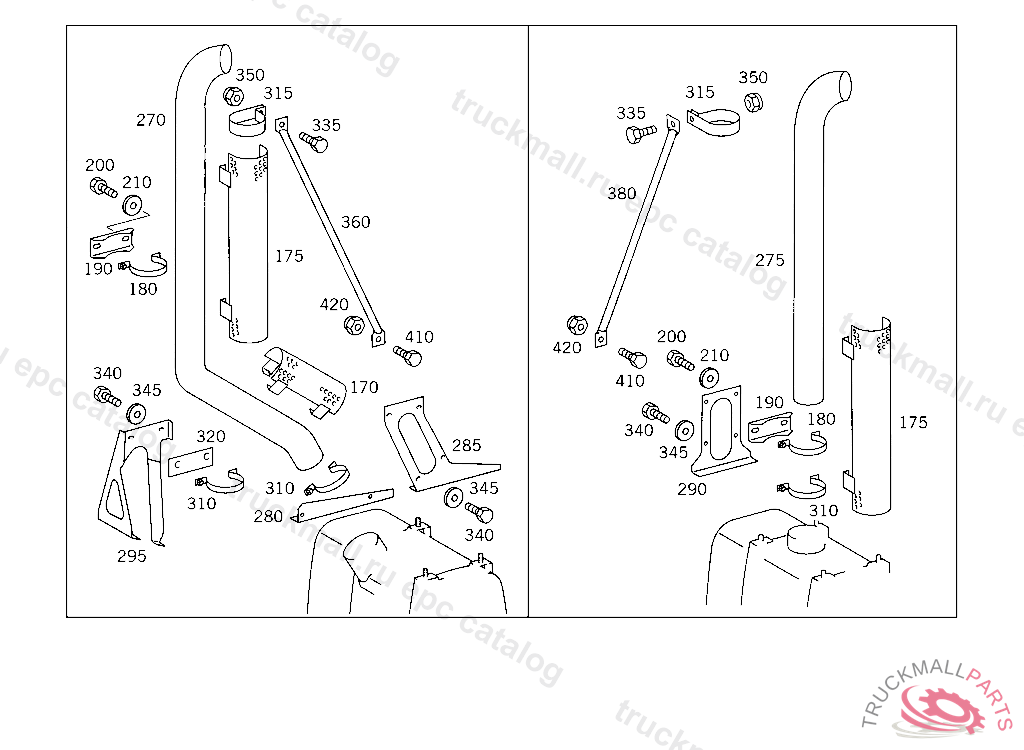

170
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER
175
PROTECTIVE PLATE HEAT PROTECTION PLATE ON EXHAUST PIPE
180
CLAMP EXHAUST PIPE TO BRACKET
190
BASE PLATE HEAT SHIELD TO TAILPIPE
200
SCREW , Replaced By: N304017008034
200
SCREW , Replaced By: N304017008033
200
SCREW BRACKET TO FRAME M 8X35
200
SCREW BRACKET TO CROSS CONNECTION STRUT
200
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
210
WASHER EXHAUST MUFFLER TO STRAP
210
WASHER BRACKET TO LEFT SIDE MEMBER
210
WASHER , Replaced By: N000125008443
210
WASHER , Replaced By: N009021008213
270
END PIECE
270
END PIECE
270
END PIECE
275
END PIECE
280
BRACKET
285
BRACKET EXHAUST PIPE TO BRACKET
290
BRACKET EXHAUST PIPE TO BRACKET
295
BRACKET EXHAUST PIPE TO BRACKET
295
BRACKET EXHAUST PIPE TO BRACKET
310
CLAMP EXHAUST PIPE TO BRACKET
315
CLAMP EXHAUST PIPE TO BRACKET
320
BASE PLATE HEAT SHIELD TO TAILPIPE
335
SCREW , Replaced By: N304017010002
335
SCREW EXHAUST PIPE TO SIDE MEMBER
335
SCREW END PIECE TO EXHAUST PIPE M 10X25
335
SCREW BRACKET TO SIDE MEMBER
340
SCREW BRACKET TO FRAME M 8X35
340
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
340
SCREW BRACKET TO CROSS CONNECTION STRUT
340
SCREW , Replaced By: N304017008027
340
SCREW , Replaced By: N304017008034
345
WASHER , Replaced By: N000125008443
345
WASHER , Replaced By: N009021008213
345
WASHER EXHAUST MUFFLER TO STRAP
345
WASHER EXHAUST PIPE TO BRACKET
345
WASHER BRACKET TO LEFT SIDE MEMBER
350
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
350
NUT STRAP TO BRACKET
350
NUT , Replaced By: N913023010002
350
NUT , Replaced By: N910113010000
360
BRACKET STRUT TO EXHAUST PIPE
360
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
380
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
410
SCREW VERTICAL TAIL PIPE BEHIND CAB
410
SCREW REAR EXHAUST PIPE TO MUFFLER
410
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
410
SCREW BRACKET TO SIDE MEMBER
410
SCREW , Replaced By: N910105010011
420
NUT , Replaced By: N910113014001
420
NUT BRACKET TO SIDE MEMBER
420
NUT BRACKET TO SIDE MEMBER
999
SCREW MOUNTING TO CONSOLE
999
PROTECTIVE PLATE FUEL TANK
999
BRACKET LEFT EXHAUST PIPE
999
COLLAR (SLIDING COLLAR)
999
BRACKET FRONT EXHAUST PIPE
999
STRUT
999
BRACKET RIGHT EXHAUST PIPE
