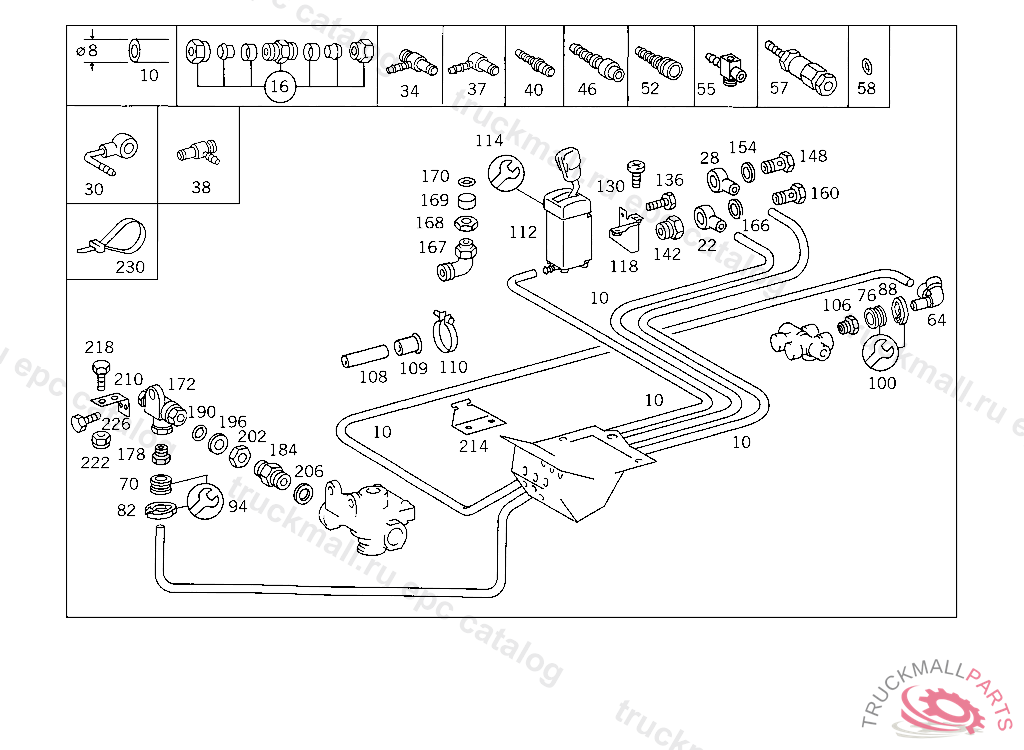

Поз.
Артикул
Описание
10
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
16
FITTING (PARTS KIT),LINE RUPTURE
16
FITTING , Replaced By: A0029905971
22
BANJO UNION HEATING CONNECTION,K 169122
28
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
30
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
34
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
34
ELBOW FITTING HOSE WIDTH, 6 MM,TO M 22
37
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
37
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
37
ELBOW FITTING , Replaced By: A0049905371
38
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
40
CONNECTOR HOSE WIDTH, 6 MM, TO M22
46
CONNECTOR DISTRIBUTOR TO CAB
52
CONNECTOR HOSE WIDTH, / I.D., 6 MM
55
CONNECTOR HOSE WIDTH, 6 MM
55
CONNECTOR DISTRIBUTOR TO CAB
57
CONNECTOR , Replaced By: A6739900278
57
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
58
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
58
SEAL RING
64
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
70
SEAL RING , Replaced By: A0009940747
70
LOCK RING LINE CONNECTION
76
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
82
LOCK , Replaced By: A0009945448
82
LOCK LINE CONNECTION
88
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
94
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
94
REPAIR KIT , Replaced By: A0309971748
100
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
106
SCREW. UNION SCREW LINE CONNECTION
108
HOSE8X12 MM, ORDER BY THE METER
109
SLEEVE LINE CONNECTION
110
CLAMP LINE CONNECTION
112
VALVE (EXTENSIBLE BRAKE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
112
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0034301881
114
REPAIR KIT , Replaced By: A0034305381
114
REPAIR KIT EXTENSIBLE BRAKE VALVE
118
BRACKET EXTENSIBLE BRAKE VALVE
118
BRACKET EXTENSIBLE BRAKE VALVE
130
SCREW BRACKET TO COVERING
130
SCREW EXTENSIBLE BRAKE VALVE TO BRACKET
130
SCREW , Replaced By: N000000001145
136
SCREW , Replaced By: N304017006016
136
SCREW EXTENSIBLE BRAKE VALVE TO BRACKET
136
SCREW PUMP TO BRACKET
142
REDUCER EXTENSIBLE BRAKE VALVE,CONNECTION: "20"
148
HOLLOW SCREW LINE CONNECTION
154
SEAL RING LINE CONNECTION
160
HOLLOW SCREW FUEL LINE TO FEED PUMP
160
HOLLOW SCREW , Replaced By: N915036010108
166
SEAL RING FUEL LINE TO FEED PUMP
167
ELBOW FITTING , Replaced By: A0004294638
167
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
168
NUT CHECK VALVE TO AIR RESERVOIR
169
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
169
THRUST RING CHECK VALVE TO AIR RESERVOIR
170
O-RING CHECK VALVE TO AIR RESERVOIR
172
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
172
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
172
SHUTTLE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0044292444
172
VALVE , Replaced By: A0044291544
178
SCREW. UNION SCREW , Replaced By: A0009973734
178
SCREW. UNION SCREW LINE CONNECTION
184
FITTING RELAY VALVE,CONNECTION: "40"
190
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
196
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
202
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
206
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
210
BRACKET DISTRIBUTOR
214
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
218
SCREW , Replaced By: N304017008021
218
SCREW PIPE CLAMP
222
NUT , Replaced By: N913004008001
222
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
226
SCREW DISTRIBUTOR TO BRACKET
230
LOOM TIE LINE MOUNTING
230
LOOM TIE LINE MOUNTING 280 MM
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
GUIDE SIGN EXTENSIBLE BRAKE
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
