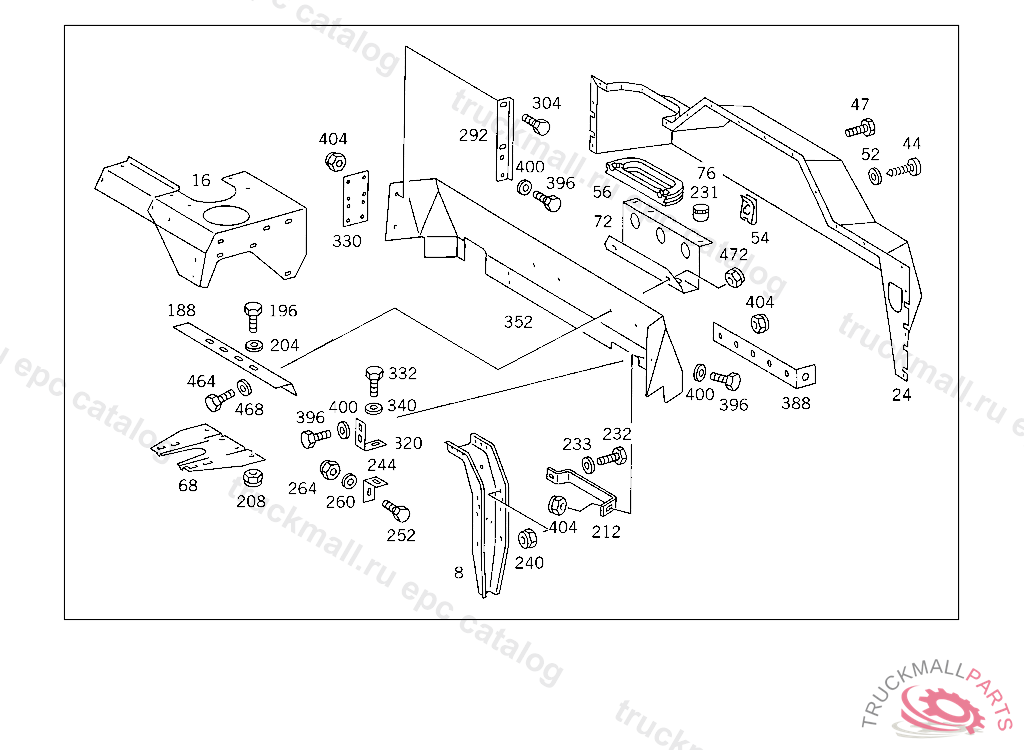

Поз.
Артикул
Описание
8
CONSOLE ADDITIONAL WORK ON FRAME
8
CONSOLE , Replaced By: A6208910031
16
SUPPORT ADDITIONAL WORK ON FRAME
24
COVERING CHASSIS
24
COVERING , Replaced By: A6555240433
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
47
SCREW PUMP TO BRACKET
47
SCREW , Replaced By: N304017006016
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COVERING TO CAB
52
WASHER COMPRESSED AIR LINE TO BRACKET
54
LOCK COVERING TO CAB
56
BOOT CROSS CONNECTION
68
BRACKET CROSS CONNECTION
68
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 099117, Replaced By: A6205244740
68
BRACKET , Replaced By: A6205234740
68
BRACKET COVERING
68
BRACKET COVERING
72
BRACKET ,5 002371 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290068
72
BRACKET CROSS CONNECTION
76
PLUG BRACKET TO STRUT
188
MOUNTING ANGLE COVERING
188
MOUNTING ANGLE BRACKET TO MOUNTING ANGLE
196
SCREW PIPE CLAMP
196
SCREW , Replaced By: N304017008021
204
WASHER , Replaced By: N000125008443
204
WASHER , Replaced By: N009021008213
204
WASHER BRACKET TO LEFT SIDE MEMBER
204
WASHER EXHAUST MUFFLER TO STRAP
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT , Replaced By: N913004008001
212
BRACKET LEFT
231
PLUG BRACKET TO STRUT
232
SCREW CONSOLE TO SIDE MEMBER
232
SCREW END PIECE TO EXHAUST PIPE M 10X25
232
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
232
SCREW , Replaced By: N308676012026
233
WASHER , Replaced By: N000125010532
233
WASHER
233
WASHER RADIATOR TO RUBBER MOUNTING
240
NUT , Replaced By: N913004008001
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
244
BRACKET FUEL LINES TO TRANSMISSION
244
BRACKET COVERING,5 736351
244
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
244
BRACKET COVERING
244
BRACKET , Replaced By: A6735460243
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6205240340
244
BRACKET COVERING
244
BRACKET LEFT
252
SCREW REAR EXHAUST PIPE TO MUFFLER
260
WASHER BRACKET TO FRAME
260
WASHER RADIATOR TO RUBBER MOUNTING
260
WASHER , Replaced By: N000125010532
264
NUT , Replaced By: N913004008001
264
NUT , Replaced By: N910113010000
264
NUT STRAP TO BRACKET
264
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
292
BRACKET MANUAL PUMP
304
SCREW REAR EXHAUST PIPE TO MUFFLER
320
BRACKET BRACKET TO CROSS MEMBER
320
BRACKET COVERING
320
BRACKET , Replaced By: A6205243040
320
BRACKET , Replaced By: A6205243040
330
COVER PLATE BRACKET TO PUMP, NOT USED
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
332
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
340
WASHER RADIATOR TO RUBBER MOUNTING
340
WASHER , Replaced By: N000125010532
352
ANTINOISE CAPSULE CHASSIS
388
BRACKET , Replaced By: A3184923441
388
BRACKET , Replaced By: A3604292940
388
BRACKET , Replaced By: A3184923641
388
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
388
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
396
SCREW SUPPORT TO FENDER
396
SCREW REDUCTION VALVE TO BRACKET
396
SCREW , Replaced By: N304017008021
396
SCREW , Replaced By: N304017008018
396
SCREW , Replaced By: N304017008034
396
SCREW , Replaced By: N304017008016
396
SCREW , Replaced By: A0079900801
396
SCREW PIPE CLAMP
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW BRACKET TO CROSS CONNECTION STRUT
400
WASHER BRACKET TO LEFT SIDE MEMBER
400
WASHER , Replaced By: N000125008443
400
WASHER , Replaced By: N009021008213
400
WASHER EXHAUST MUFFLER TO STRAP
404
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
404
NUT , Replaced By: N913004008001
464
SCREW END PIECE TO EXHAUST PIPE M 10X25
468
WASHER , Replaced By: N000125010532
468
WASHER RADIATOR TO RUBBER MOUNTING
472
NUT STRAP TO BRACKET
472
NUT , Replaced By: N910113010000
999
RUBBER BUFFER , NOT USED
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
999
SUPPORT , Replaced By: A3874320916
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
999
SUPPORT , Replaced By: A6214320116
999
BRACKET MANUAL PUMP
999
BRACKET LEFT
999
BRACKET RIGHT,5 385158
999
COVERING CHASSIS
999
BRACKET LEFT
999
BRACKET RIGHT
999
ANGLE LEFT
999
SUPPORT BRAKE LINE COUPLINGS
999
ANGLE RIGHT
999
COVERING CHASSIS,5 736351
999
COVERING CHASSIS
999
BRACKET , Replaced By: A6555240040
999
BRACKET , Replaced By: A6555240040
999
BRACKET HAND PUMP
999
FLAP CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
BRACKET BOOT
999
BRACKET CABLE HARNESS MOUNTING
999
WASHER , Replaced By: N000125010532
999
SCREW , Replaced By: N304017008021
999
WASHER , Replaced By: N009021008213
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
