Mercedes A6993204902 - ПЕРЕДНЯЯ ПРУЖИНА

1838,1844,1850,2038,25441835,1838,1844,1853,2044 655.337

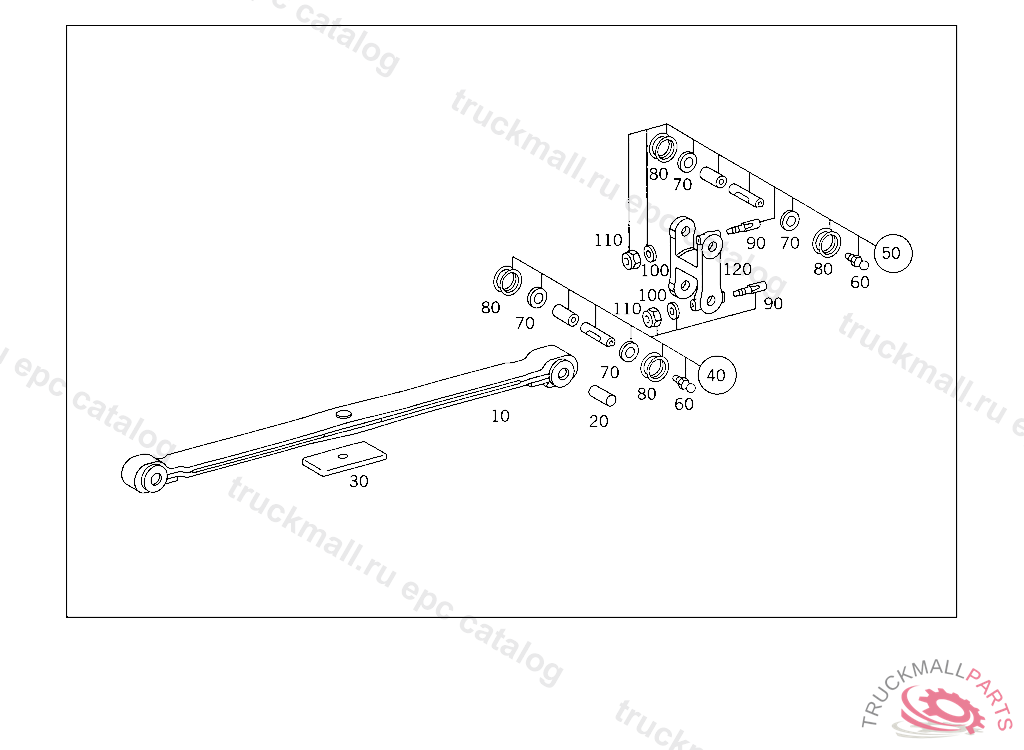

33 FRONT AXLE - 001 SPRING SUSPENSION USED FOR STEERED AXLE IL.1

Поз.
Артикул
Описание
10
A6573200002
FRONT SPRING STEERED AXLE,2 LEAVES
10
A6993204902
FRONT SPRING (GUIDE SPRING),2 LEAVES,FRONT AXLE II
20
A3523250150
BUSHING
20
A3853250050
BUSHING
30
A3953310028
SHIM BETWEEN SPRING AND SHIM,RIGHT, NOT APPLICABLE TO 620.086,096,466, 621.086,096,097,466, 623.068,073,473
40
A6223200065
SHACKLE PIN (PARTS KIT),FRONT & REAR SPRING EYES
50
A3853200065
SHACKLE PIN (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET
60
N071412010100
GREASE NIPPLE PROTECTIVE TUBE
70
A3523230976
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
70
A3523231076
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
80
A0029973040
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
90
A3529900337
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
90
A3839900337
BOLT FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
100
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
110
A0009906550
NUT EXHAUST PIPE TO SIDE MEMBER
120
A3913270040
BRACKET
