Главная
›
Mercedes
›
TRUCK
›
1838,1844,1850,2038,25441835,1838,1844,1853,2044
›
655.337
›
32 SPRINGS AND SUSPENSION
›

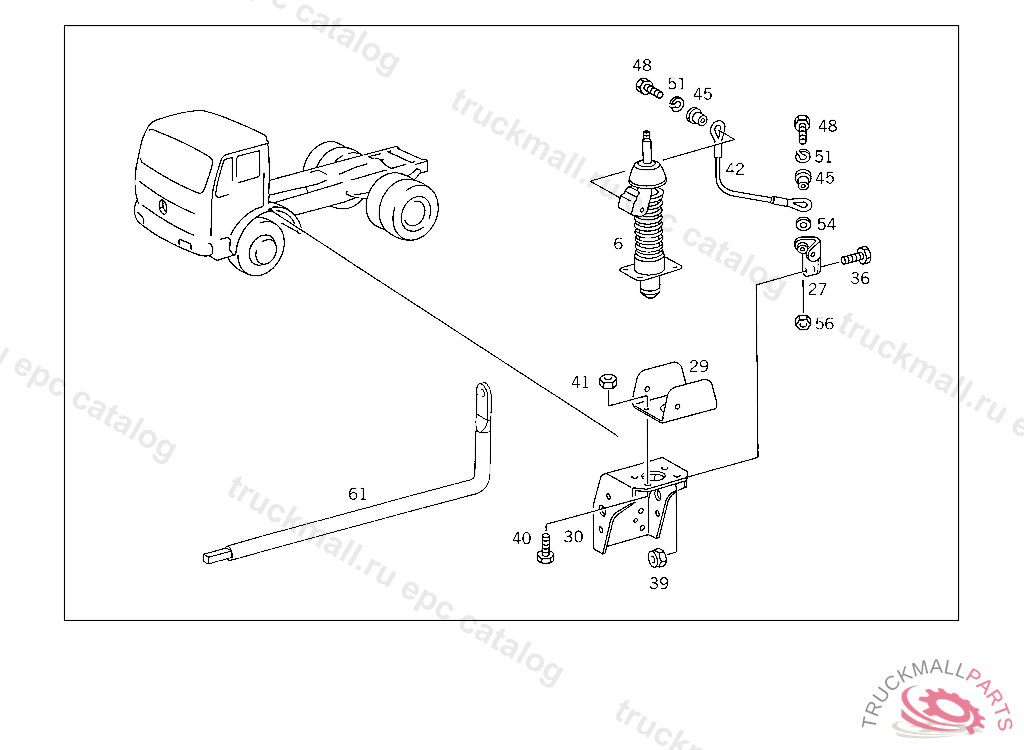

001 CAB REAR SUSPENSION,WITH RETAINING CABLE IL.2
Mercedes N304017008024 - БОЛТ М8
1838,1844,1850,2038,25441835,1838,1844,1853,2044 655.337
32 SPRINGS AND SUSPENSION - 001 CAB REAR SUSPENSION,WITH RETAINING CABLE IL.2
Поз.
Артикул
Описание
6
A3818901019
SHOCK ABSORBER CAB,REAR
6
A6208900419
SHOCK ABSORBER CAB,REAR
27
A6153100109
BRACKET RETAINING ROPE,RIGHT
27
A6153100009
BRACKET RETAINING ROPE,LEFT
29
A6503170040
BRACKET RETAINING ROPE
30
A3813171201
CONSOLE CAB SUSPENSION,REAR, TO BE ADAPTED DURING ASSEMBLY
30
A6153170101
CONSOLE , Replaced By: A3813171201
30
A6153170001
CONSOLE , Replaced By: A3813171201
36
N000961012052
SCREW , Replaced By: N308676012012
36
N308676012012
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
39
N910113012002
NUT SUPPORT TO SIDE MEMBER
40
N304017008024
SCREW BRACKET TO EXHAUST PIPE BRACKET
40
N000933008177
SCREW , Replaced By: N304017008024
41
N910113008001
NUT STRAP TO BRACKET
42
A3813170018
CABLE
45
A3813171750
BUSHING
48
N000933010145
SCREW REAR EXHAUST PIPE TO MUFFLER
48
N000933010128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
51
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
54
N009021010209
WASHER BRACKET TO COVERING
54
N009021010202
WASHER , Replaced By: N009021010209
56
N913004010008
NUT , Replaced By: N910113010000
56
N910113010000
NUT STRAP TO BRACKET
61
A6458910056
LEVER CAB LOCKING MECHANISM
999
A0008901389
FASTENER , Replaced By: A0008902389
