Mercedes
TRUCK
1838,1844,1850,2038,25441835,1838,1844,1853,2044
655.337

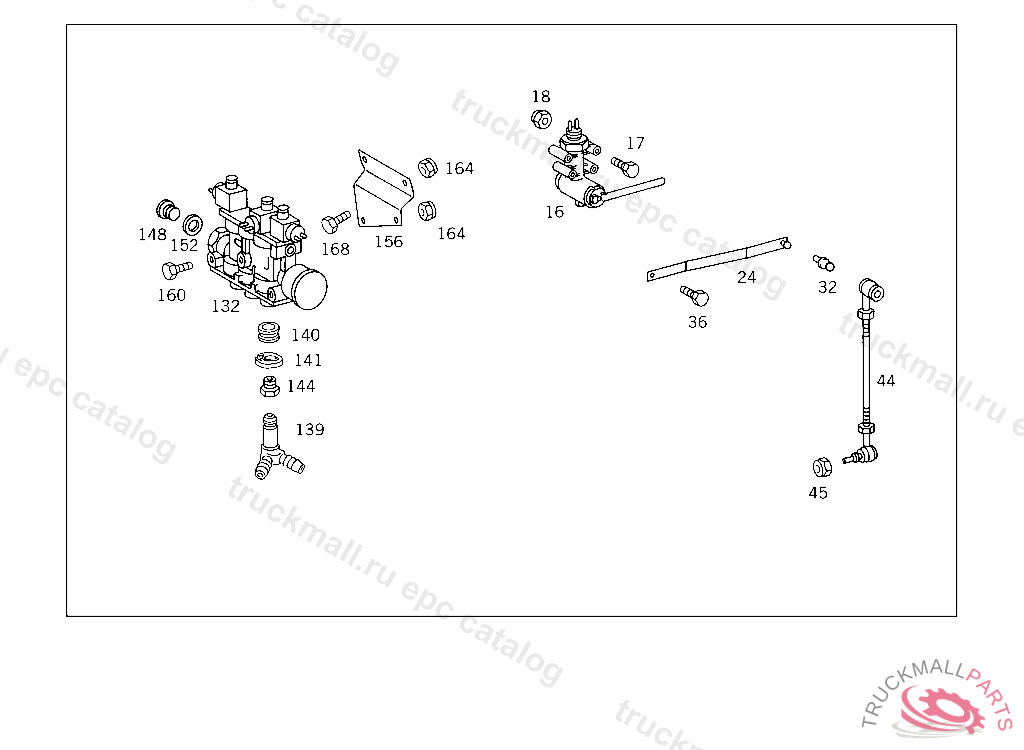

30 CONTROL
001 CONTROL AS WELL AS HYDRAULIC SHIFTING PARTS USED FOR LOCK-UP COUPLING IL.1

Mercedes N000931008254 - Деталь-SCREW

1838,1844,1850,2038,25441835,1838,1844,1853,2044 655.337

30 CONTROL - 001 CONTROL AS WELL AS HYDRAULIC SHIFTING PARTS USED FOR LOCK-UP COUPLING IL.1

Поз.
Артикул
Описание
16
A0105427817
TRAVEL SENSOR REAR AXLE,K 186868
17
N304014008002
SCREW VALVE TO BRACKET
17
N000931008254
SCREW VALVE TO BRACKET, Replaced By: N304014008002
18
N913004008004
NUT , Replaced By: N913004008001
18
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
18
N913004008002
NUT , Replaced By: A0009906350
24
A9453200627
LEVER TRAVEL SENSOR, TO BE ADAPTED DURING ASSEMBLY
24
A6523200827
LEVER , Replaced By: A9453200627
32
N071803010202
BALL STUD. BALL PIVOT TOP B10X4,5 MM
36
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
36
N000933006103
SCREW , Replaced By: N304017006018
44
A6533200389
ROD , Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008427
44
A6533200489
ROD , Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008427
44
A6533200589
ROD , Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008427
44
A6533201089
ROD ,K 166016, Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008427
44
A6533200189
ROD TRAVEL SENSOR
45
N913004008002
NUT , Replaced By: A0009906350
132
A0049972736
VALVE (3/2-WAY SOLENOID VALVE) WABCO
132
A0049972836
VALVE (3/2-WAY SOLENOID VALVE) KNORR
132
A0049975736
VALVE (3/2-WAY SOLENOID VALVE) EKS
132
A0003276225
VALVE REAR AXLE SELF-LEVELLING DEVICE
132
A0039975336
VALVE , Replaced By: A0049975736
139
A0029906370
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,5 9363665 812731
140
A0009940147
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
141
A0009941448
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
144
A0009970934
SCREW. UNION SCREW LINE CONNECTION
148
N000908022011
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
148
N000908022001
SCREW PLUG , Replaced By: N000908022011
152
N007603022403
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
156
A6523270140
BRACKET ,5 760168 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 962043, Replaced By: A6523270440
156
A6523270440
BRACKET AIR SPRING VALVE
160
N000931008248
SCREW , Replaced By: N304017008053
160
N304017008053
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
164
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
N913004008004
NUT , Replaced By: N913004008001
168
N000933008153
SCREW , Replaced By: N304017008034
168
N000933008154
SCREW , Replaced By: N304017008021
168
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
168
N304017008021
SCREW PIPE CLAMP
999
A0003290930
BALL JOINT TRAVEL SENSOR
999
A0003291030
BALL JOINT LEFT-HAND THREAD,BALL DIAMETER 10 MM
999
A0004206855
REPAIR KITTO 388 997 88 36
999
A0004293095
AIR CLEANER ,5 760168K 154651
999
A0005433485
MAGNET ,5 760168K 154651
999
A0014310087
PROTECTIVE CAPWABCO
999
A0019909871
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
A6523200127
LEVER AIR SPRING VALVE,5 760167
999
A6993286940
BRACKET TEST CONNECTION
999
A6994300126
CYLINDER REAR AXLE SELF-LEVELLING DEVICE
999
N000000006197
FITTING FROM PUMP TO CYLINDER
999
N007603012405
SEAL RING LINE CONNECTION
999
N007604012102
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
N007604012105
SCREW PLUGROCKINGER,TYP 59 U150
999
N304032008006
NUT
999
N304032008007
NUT BALL SOCKET TO ROD
999
N900331008427
PULL ROD PNEUMATIC SUSPENSION CONTROL
