Mercedes A0065457328 - ШТЕКЕР

1838,1844,1850,2038,25441835,1838,1844,1853,2044 655.337

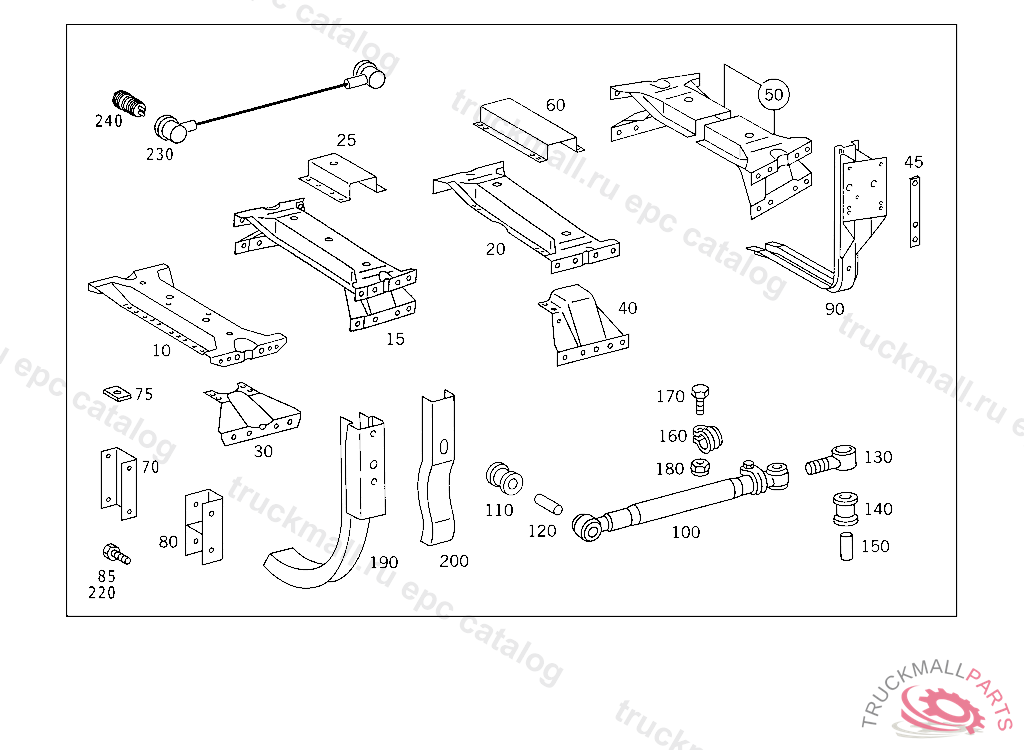

31 FRAME - 001 FRAME/WHEELBASE SHORTENING

Поз.
Артикул
Описание
10
A6173120017
CROSS MEMBERNO.3B
15
A6203100336
CROSS MEMBER IN FRAME BEND
20
A3893120025
CROSS MEMBERNO.4A
20
A3893120125
CROSS MEMBERNO.3A
25
A6623120165
STRUT CROSS MEMBER CONNECTION
30
A3523122360
REINFORCEMENT LEFT AND RIGHT
40
A3873121961
STRUT LEFT AND RIGHT
40
A3873120261
STRUT LEFT AND RIGHT
40
A3953120261
STRUT LEFT AND RIGHT
45
A6204310184
SHIM FUEL TANK TO FRAME
50
A3873100036
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY
50
A6753100237
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY FROM 08.95
60
A6623120365
STRUT CROSS MEMBER TO CROSS MEMBER
70
A6624750840
BRACKET FUEL TANK
75
A3854130111
REINFORCEMENT MOUNTING USED FOR FRAME CONNECTION PARTS
80
A6624900640
BRACKET EXHAUST PIPE SUSPENSION
85
A0029908201
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
85
A0039900901
SCREW , Replaced By: A0029908201
90
A6254701942
SUPPORT REAR TANK,5 758497
90
A6204700842
SUPPORT FUEL TANK, VERSION A VERSION B
100
A6212850055
ROD TRANSFER CASE TO FRAME
110
A0002420250
BUSHING
120
A0002420350
BUSHING
130
A0002850035
JOINT
140
A0002420250
BUSHING
150
A0002420350
BUSHING
160
A0009957044
CLAMP
170
N000960010023
SCREW
180
N910113010002
HEXAGON NUT
180
N913004010010
NUT , Replaced By: N910113010002
190
A3874701442
SUPPORT FUEL TANK
200
A6624910041
BRACKET EXHAUST PIPE SUSPENSION
220
A0079901101
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
230
A6505401836
ELECTRIC CABLE EXTENSION TOWARDS ASR SOLENOID VALVE
240
A0065457328
PLUG
