Поз.
Артикул
Описание

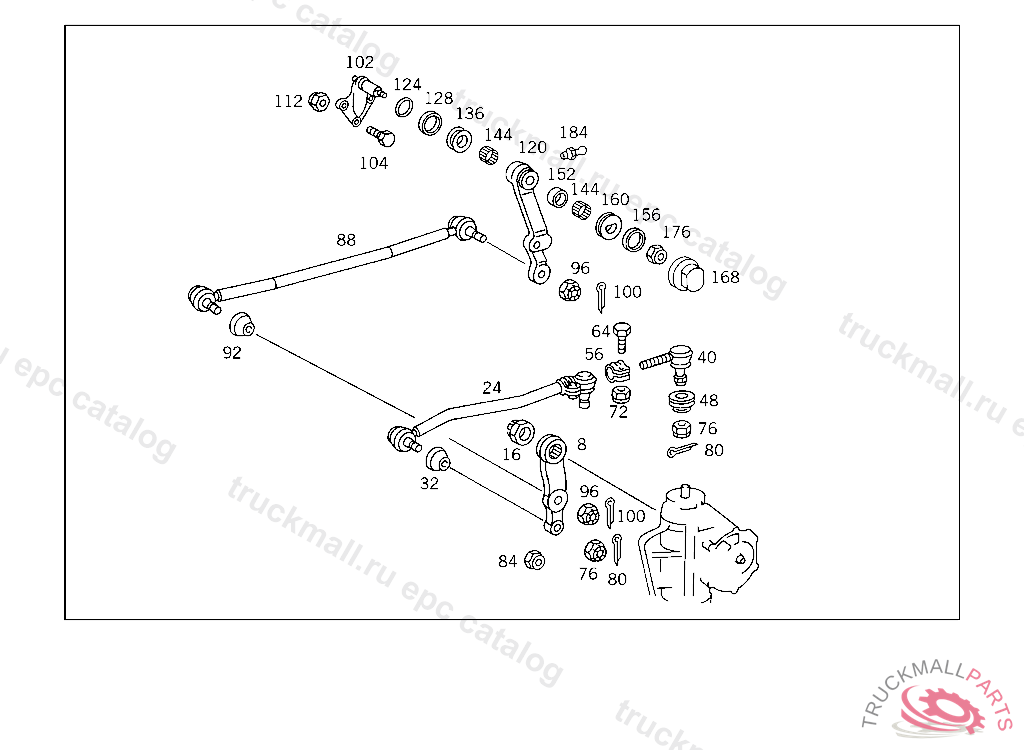

8
PITMAN ARM AT STEERING GEAR
16
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
24
DRAG LINK , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0004602605
24
DRAG LINKEHRENREICH
24
DRAG LINK FROM PITMAN ARM TO STEERING ARM
24
DRAG LINKEHRENREICH
24
DRAG LINKLEMFOERDER
24
DRAG LINKLEMFOERDERER
24
DRAG LINK , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0004602705
32
BOOT DRAG LINK
40
DRAG LINK END , Replaced By: A0014600848
40
DRAG LINK END , Replaced By: A0014601248, +001A0019905451
40
DRAG LINK END , Replaced By: A0014601748
40
DRAG LINK END , Replaced By: A0014602248
40
DRAG LINK END , Replaced By: A0014602248
40
DRAG LINK END , Replaced By: A0014607648
40
DRAG LINK END , Replaced By: A0014607748
40
DRAG LINK ENDEHRENREICH
40
DRAG LINK END R.H. THREAD EHRENREICH
48
BOOT DRAG LINK
48
BOOT
56
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
56
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
56
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
56
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
64
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
64
SCREW , Replaced By: N308676012017
72
NUT SUPPORT TO SIDE MEMBER
76
NUT , Replaced By: N000937024002
76
NUT DRAG LINK TO LEVER
80
COTTER PIN DRAG LINK TO LEVER
84
NUT DRAG LINK END M 24X1.5
88
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER, COMPONENT PARTS NOT AVAILABLE
88
DRAG LINK FROM PITMAN ARM TO STEERING BRACKET I EHRENREICH, COMPONENT PARTS NOT AVAILABLE
88
DRAG LINK FROM PITMAN ARM TO STEERING BRACKET I LEMFOERDER, COMPONENT PARTS NOT AVAILABLE
88
DRAG LINK
88
DRAG LINK FROM PITMAN ARM TO STEERING SUPPORT I EHRENREICH
88
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER
88
DRAG LINK FROM PITMAN ARM TO STEERING SUPPORT I LEMFOERDER
92
BOOT DRAG LINK
96
NUT , Replaced By: N000937024002
96
NUT DRAG LINK TO LEVER
100
COTTER PIN DRAG LINK TO LEVER
102
STEERING SUPPORTI
104
SCREW CONSOLE TO FRAME
104
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
104
SCREW GUSSET PLATE TO FRAME M 16X35
104
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
104
SCREW , Replaced By: N308676016006
104
SCREW , Replaced By: N308676016007
104
SCREW , Replaced By: N308676016020
112
NUT , Replaced By: N910113016001
112
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
112
NUT CONSOLE TO SUPPORT
120
STEERING INTERMEDIATE ARMI
120
STEERING INTERMEDIATE ARM"I"
120
STEERING INTERMEDIATE ARMI
124
SEAL RING INSIDE TO 622 463 01 10
128
SEAL RING INSIDE
128
SEAL RING INSIDE AND OUTSIDE TO 622 463 01 10
136
THRUST WASHER , Replaced By: A6574630162
136
THRUST WASHER INSIDE
144
NEEDLE BEARING INSIDE AND OUTSIDE
152
SPACER TUBE STEERING INTERMEDIATE ARM BEARING TO 622 461 00 40
156
SEAL RING OUTSIDE TO 622 463 01 10
160
THRUST WASHER , Replaced By: A6574630062
160
THRUST WASHER OUTSIDE
168
CAP STEERING SUPPORT
176
NUT , Replaced By: N910113018004
176
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
184
GREASE NIPPLE
184
GREASE NIPPLE , Replaced By: N071412008102
999
DRAG LINK END , Replaced By: A0014602348, +001A0019905451
999
DRAG LINK END , Replaced By: A0014602248
999
DRAG LINK END , Replaced By: A0014602248
999
DRAG LINK END , Replaced By: A0014602348
999
DRAG LINK END , Replaced By: A0014607748
999
DRAG LINK END , Replaced By: A0014607848
999
DRAG LINK END L.H. THREAD TRW, Replaced By: A0024600348
999
BALL JOINT L.H. THREAD TRW
999
DRAG LINKLEMFOERDER
999
DRAG LINKEHRENREICH
999
INTERMEDIATE LEVER"III"
999
SCREW , Replaced By: N308676012017
