Поз.
Артикул
Описание

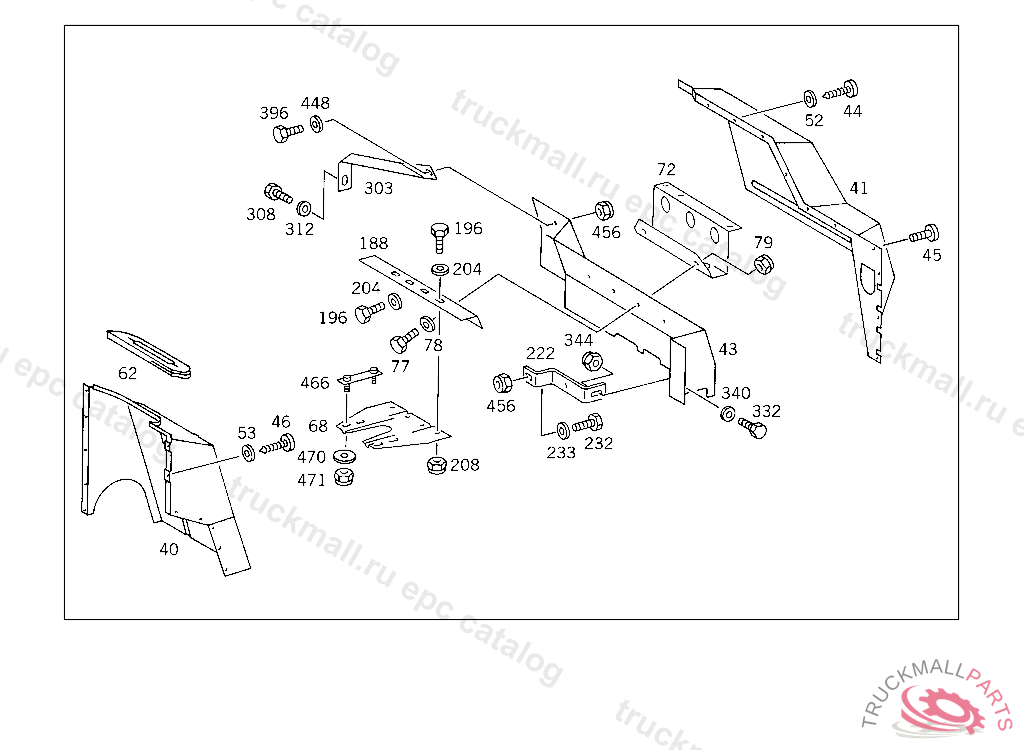

40
COVERING CHASSIS
40
COVERING CHASSIS
40
COVERING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 287352, Replaced By: A6205247933
40
COVERING CHASSIS
41
COVERING , Replaced By: A6575240033
41
COVERING CHASSIS
43
COVERING CHASSIS
43
COVERING CHASSIS
43
COVERING CHASSIS
43
COVERING CHASSIS
43
COVERING CHASSIS
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
45
SCREW CLAMP MOUNTING M 6X16
45
SCREW CLAMP MOUNTING M 6X16
45
SCREW , Replaced By: N000000001146
45
SCREW COVERING TO CAB
46
SHEET METAL SCREW COVER PLATE TO COVER PLATE
46
SHEET METAL SCREW COVER PLATE TO COVER PLATE
52
WASHER COMPRESSED AIR LINE TO BRACKET
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COMPRESSED AIR LINE TO BRACKET
52
WASHER COVERING TO CAB
52
WASHER COMPRESSED AIR LINE TO BRACKET
52
WASHER COMPRESSED AIR LINE TO BRACKET
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
WASHER COVERING TO CAB
53
WASHER COVER PLATE TO COVER PLATE
62
BOOT CROSS CONNECTION
68
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 099117, Replaced By: A6205244740
68
BRACKET , Replaced By: A6205234740
68
BRACKET COVERING
68
BRACKET CROSS CONNECTION
68
BRACKET COVERING
68
BRACKET CROSS CONNECTION
68
BRACKET COVERING
68
BRACKET CROSS CONNECTION
68
BRACKET CROSS CONNECTION
72
BRACKET ,5 002371 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290068
72
BRACKET ,5 002371 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290068
72
BRACKET ,5 002371 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290068
72
BRACKET CROSS CONNECTION
72
BRACKET CROSS CONNECTION
77
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
77
SCREW END PIECE TO EXHAUST PIPE M 10X25
78
WASHER BRACKET TO COVERING
78
WASHER , Replaced By: N009021010209
78
WASHER RADIATOR TO RUBBER MOUNTING
78
WASHER , Replaced By: N000125010532
79
NUT STRAP TO BRACKET
79
NUT STRAP TO BRACKET
79
NUT , Replaced By: N910113010000
188
MOUNTING ANGLE BRACKET TO MOUNTING ANGLE
188
MOUNTING ANGLE COVERING
188
MOUNTING ANGLE BRACKET TO MOUNTING ANGLE
196
SCREW , Replaced By: N304017008021
196
SCREW PIPE CLAMP
196
SCREW PIPE CLAMP
196
SCREW PIPE CLAMP
196
SCREW PIPE CLAMP
204
WASHER , Replaced By: N000125008443
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER , Replaced By: N009021008213
204
WASHER BRACKET TO LEFT SIDE MEMBER
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER BRACKET TO LEFT SIDE MEMBER
208
NUT , Replaced By: N913004008001
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
222
BRACKET LEFT
222
BRACKET LEFT
222
BRACKET LEFT
232
SCREW CONSOLE TO SIDE MEMBER
232
SCREW , Replaced By: N308676012026
232
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
232
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
232
SCREW END PIECE TO EXHAUST PIPE M 10X25
233
WASHER
233
WASHER , Replaced By: N000125010532
233
WASHER RADIATOR TO RUBBER MOUNTING
303
BRACKET MANUAL PUMP
303
BRACKET MANUAL PUMP
308
SCREW REAR EXHAUST PIPE TO MUFFLER
308
SCREW EXHAUST PIPE TO BRACKET
308
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
308
SCREW REAR EXHAUST PIPE TO MUFFLER
308
SCREW REAR EXHAUST PIPE TO MUFFLER
308
SCREW BRACKET TO SIDE MEMBER
308
SCREW , Replaced By: N304017010002
312
WASHER RADIATOR TO RUBBER MOUNTING
312
WASHER RADIATOR TO RUBBER MOUNTING
312
WASHER RADIATOR TO RUBBER MOUNTING
312
WASHER , Replaced By: N000125010532
332
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
332
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
332
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
332
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
340
WASHER RADIATOR TO RUBBER MOUNTING
340
WASHER RADIATOR TO RUBBER MOUNTING
340
WASHER RADIATOR TO RUBBER MOUNTING
340
WASHER , Replaced By: N000125010532
344
NUT STRAP TO BRACKET
344
NUT STRAP TO BRACKET
344
NUT STRAP TO BRACKET
344
NUT STRAP TO BRACKET
344
NUT STRAP TO BRACKET
344
NUT , Replaced By: N910113010000
396
SCREW PIPE CLAMP
396
SCREW PIPE CLAMP
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW REDUCTION VALVE TO BRACKET
396
SCREW , Replaced By: A0079900801
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW PIPE CLAMP
396
SCREW PIPE CLAMP
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW BRACKET TO CROSS CONNECTION STRUT
396
SCREW , Replaced By: N304017008034
396
SCREW SUPPORT TO FENDER
396
SCREW , Replaced By: N304017008018
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW , Replaced By: N304017008016
396
SCREW PIPE CLAMP
396
SCREW , Replaced By: N304017008021
448
WASHER EXHAUST MUFFLER TO STRAP
448
WASHER , Replaced By: N000125008443
456
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
456
NUT , Replaced By: N913004008001
456
NUT COVERING TO BRACKET
456
NUT , Replaced By: N910113008007
466
BRACKET STRUT TO CROSS MEMBER
470
WASHER BRACKET TO COVERING
470
WASHER BRACKET TO COVERING
470
WASHER , Replaced By: N009021010209
471
NUT STRAP TO BRACKET
471
NUT STRAP TO BRACKET
471
NUT , Replaced By: N910113010000
999
RUBBER BUFFER , NOT USED
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
999
SUPPORT , Replaced By: A3874320916
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
999
SUPPORT , Replaced By: A6214320116
999
BRACKET MANUAL PUMP
999
BRACKET LEFT
999
BRACKET RIGHT,5 385158
999
BRACKET COVERING
999
COVERING CHASSIS
999
BRACKET LEFT
999
BRACKET RIGHT
999
ANGLE LEFT
999
SUPPORT BRAKE LINE COUPLINGS
999
ANGLE RIGHT
999
COVERING CHASSIS,5 736351
999
COVERING CHASSIS
999
BRACKET , Replaced By: A6555240040
999
BRACKET , Replaced By: A6555240040
999
BRACKET HAND PUMP
999
FLAP CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
BRACKET BOOT
999
BRACKET CABLE HARNESS MOUNTING
