Поз.
Артикул
Описание

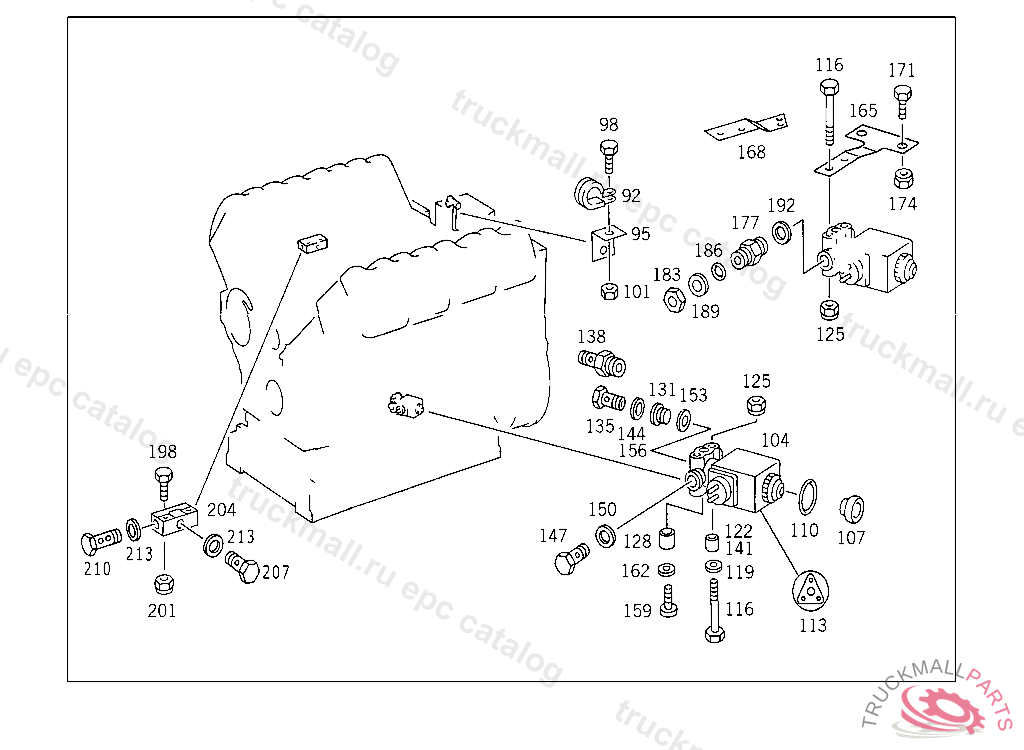

92
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
92
CLAMP ,K 147121, Replaced By: N000000000319
95
ANGLE LINE MOUNTING
98
SCREW PUMP TO BRACKET
98
SCREW , Replaced By: N304017006016
101
NUT , Replaced By: N913004006001
101
NUT PUMP TO BRACKET
104
VALVE (3/2-WAY SOLENOID VALVE) EKS
104
VALVE , Replaced By: A0049975736
107
PROTECTIVE CAPWABCO
110
SEAL RINGBOSCH
110
SEAL RINGBOSCH
110
SEAL RINGWABCO
113
GASKET KITKNORR
116
SCREW 3/2-WAY VALVE TO BRACKET
116
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
116
SCREW VALVE TO BRACKET M 8X55
116
SCREW , Replaced By: N304017008043
116
SCREW , Replaced By: N304014008009
119
WASHER , Replaced By: N007349008007
119
WASHER
122
SPACER TUBE 3/2-WAY VALVE TO BRACKET,5 556783
125
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
125
NUT , Replaced By: N913004008001
128
SEAL RING VALVE TO VALVE
131
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
131
SCREW PLUG , Replaced By: N000908012009
135
HOLLOW SCREW HEATING CONNECTION
138
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
138
HOLLOW SCREW FITTING CONSTANT THROTTLE 3/2-WAY VALVE, CONNECTION: "25"
141
SPACER TUBE 3/2-WAY VALVE TO BRACKET,5 556783
144
SEAL RING LINE CONNECTION
147
HOLLOW SCREW LINE CONNECTION
150
SEAL RINGBOSCH
153
SEAL RING FUEL LINE TO FEED PUMP
153
SEAL RING LINE CONNECTION
156
SEAL RING LINE CONNECTION
159
SCREW TO PLUG THE FREE CONNECTIONS
162
SEAL RINGBOSCH
165
BRACKET , Replaced By: A6454312140
165
BRACKET , Replaced By: A6454312140
165
BRACKET 3/2-WAY SOLENOID VALVE
168
BRACKET 3/2-WAY SOLENOID VALVE
171
SCREW END PIECE TO EXHAUST PIPE M 12X30
171
SCREW , Replaced By: N308676012013
171
SCREW , Replaced By: N304017012020
171
SCREW , Replaced By: N304017010002
171
SCREW , Replaced By: N304017008034
171
SCREW BRACKET TO SIDE MEMBER
171
SCREW BRACKET TO LEFT SIDE MEMBER
171
SCREW BRACKET TO CROSS CONNECTION STRUT
171
SCREW END PIECE TO EXHAUST PIPE M 10X25
171
HEXAGON HEAD BOLT , Replaced By: A0029902704
174
NUT END PIECE TO EXHAUST PIPE
174
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
174
NUT BRACKET TO SIDE MEMBER
174
NUT STRAP TO BRACKET
174
NUT , Replaced By: N910113010000
174
NUT BRACKET TO SIDE MEMBER,XB209706
174
NUT , Replaced By: N913004008001
174
NUT SUPPORT TO SIDE MEMBER
177
FITTING LINE CONNECTION
183
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
183
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
186
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
186
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
189
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
189
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
189
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
192
SEAL RING FUEL LINE TO FEED PUMP
198
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
201
NUT , Replaced By: N913004006001
201
NUT PUMP TO BRACKET
204
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
207
HOLLOW SCREW TWO-WAY VALVE
210
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
213
SEAL RING FUEL LINE TO FEED PUMP
999
HOLLOW SCREW , Replaced By: N915036010108
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
BRACKET 3/2-WAY VALVE
999
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
999
VALVE (3/2-WAY SOLENOID VALVE) WABCO
