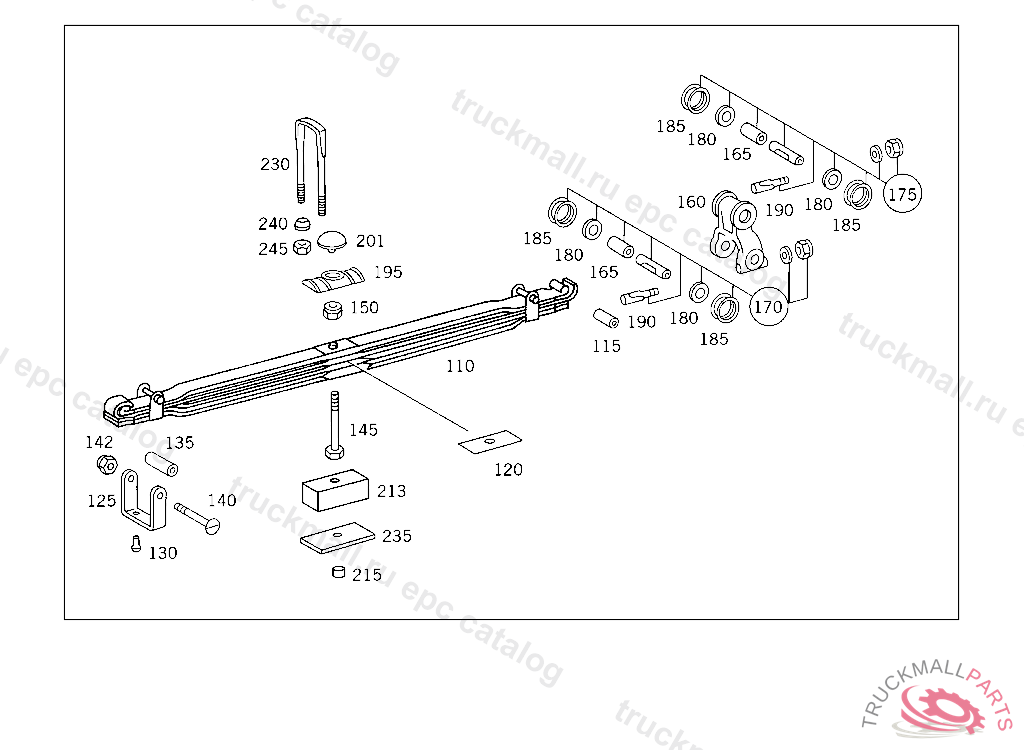

Поз.
Артикул
Описание
110
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: 4
110
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
115
BUSHING FRONT
115
BUSHING FRONT
120
SHIM SPRING LEAF
125
SPRING CLAMP
125
SPRING CLAMP FRONT SPRING,5 193395
130
RIVET SPRING CLAMP TO SPRING LEAF,5 940410
135
SPACER TUBE SPRING CLAMP
135
SPACER TUBE , Replaced By: A0003212753
140
SCREW FOR SPRING CLAMPS
140
SCREW FOR SPRING CLAMPS
142
NUT SUPPORT TO SIDE MEMBER
145
SCREW (SPRING BOLT)
145
SCREW (SPRING BOLT)
150
NUT STEERING SUPPORT TO FRAME
150
NUT , Replaced By: N910113014000
160
SHACKLE FRONT SPRING
165
BUSHING FRONT
165
BUSHING FRONT
170
SHACKLE PIN PARTS KIT
175
SHACKLE PIN PARTS KIT
180
WASHER AS REQUIRED 4.30 MM
180
WASHER AS REQUIRED 4.20 MM
180
WASHER AS REQUIRED 4.00 MM
185
SEAL RING SPRING SUSPENSION
190
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
195
PLATE FRONT SPRINGS TO FRONT AXLE,K 156938
195
PLATE FRONT SPRINGS TO FRONT AXLE
201
RUBBER BUFFER SPRING STOP
201
RUBBER BUFFER SPRING STOP
213
SHIM FRONT SPRINGS TO FRONT AXLE
215
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
215
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
215
PIN , Replaced By: A6573310074
215
PIN , Replaced By: A3893230074
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 430 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 390 MM,4 286050
230
U-BOLT FRONT AXLE TO FRONT SPRINGS
230
U-BOLT FRONT SPRINGS TO FRONT AXLE
230
U-BOLT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3873310325
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 460 MM,K 156938
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 410 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 480 MM
235
SHIM FRONT SPRINGS TO FRONT AXLE
235
SHIM FRONT SPRINGS TO FRONT AXLE
240
WASHER REAR SPRING TO REAR AXLE
245
NUT REAR SPRING TO REAR AXLE
245
NUT , Replaced By: N308674020000
245
NUT , Replaced By: N308673020002
