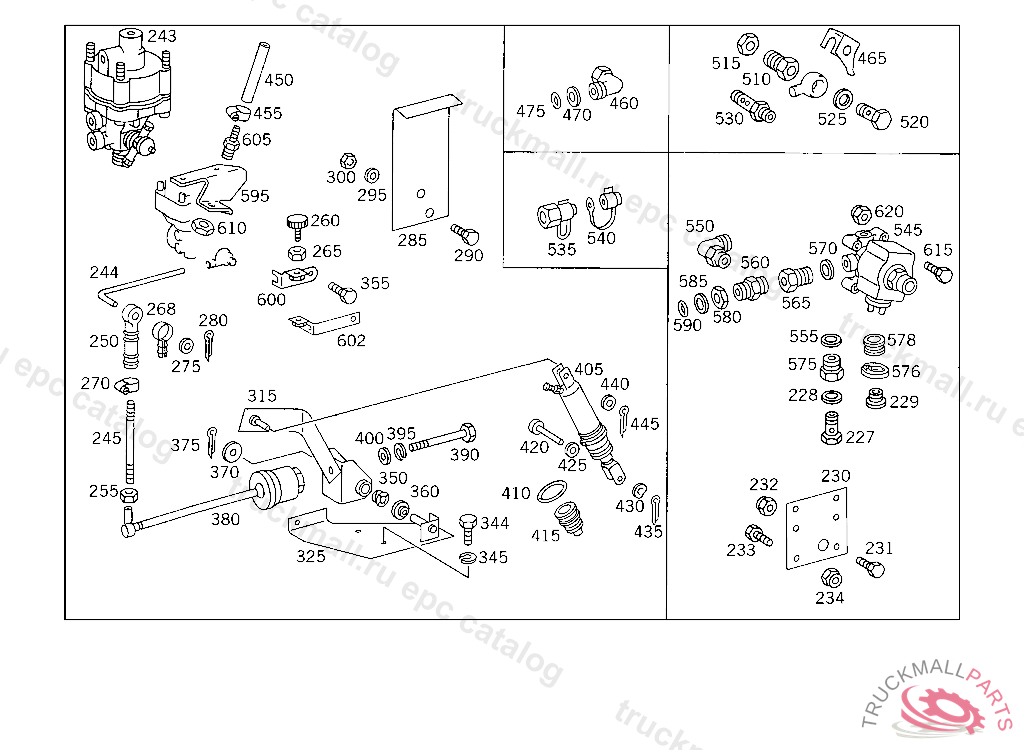

Поз.
Артикул
Описание
227
HOLLOW SCREW HEATING CONNECTION
228
SEAL RING LINE CONNECTION
229
SCREW PLUG , Replaced By: N000908012009
229
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
230
BRACKET , Replaced By: A3914311240
230
BRACKET RELAY VALVE TO CROSS MEMBER
230
BRACKET RELAY VALVE TO CROSS MEMBER
231
SCREW 3/2-WAY VALVE TO BRACKET
232
NUT , Replaced By: N913004006001
232
NUT PUMP TO BRACKET
233
SCREW , Replaced By: N304017008021
233
SCREW PIPE CLAMP
234
NUT , Replaced By: N913004008001
234
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
243
BRAKE PRESSURE REGULATOR ALB REGULATOR TO RELAY VALVE WABCO
244
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
244
LEVER BRAKE POWER REGULATOR, SIMPLE PART-PLEASE HAVE SHOP MADE
245
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
245
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
245
PULL ROD BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
250
CONNECTOR PULL ROD TO LEVER
255
NUT , Replaced By: N304032008006
255
NUT
260
KNURLED HEAD SCREW PRESSURE SWITCH
265
NUT , Replaced By: N304032008006
265
NUT
268
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
270
CLAMP , Replaced By: N000000000665
270
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
275
WASHER , Replaced By: N000125008443
275
WASHER EXHAUST MUFFLER TO STRAP
280
COTTER PIN PULL ROD
285
ANGLE METAL SPRING BELLOWS TO REAR AXLE
290
SCREW , Replaced By: N304017008023
290
SCREW CABLE HARNESS MOUNTING
295
WASHER BRACKET TO CROSS MEMBER
300
NUT , Replaced By: N304032008006
300
NUT
315
CONSOLE METAL SPRING BELLOWS
315
CONSOLE METAL SPRING BELLOWS
315
BRACKET METAL SPRING BELLOWS
315
BRACKET METAL SPRING BELLOWS
325
BRACKET METAL SPRING BELLOWS
325
BRACKET METAL SPRING BELLOWS TO REAR AXLE
344
SCREW METAL SPRING BELLOWS TO REAR AXLE
345
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
350
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
355
SCREW , Replaced By: A0079900801
355
SCREW REDUCTION VALVE TO BRACKET
360
COVERING INTERMEDIATE BEARING
360
COVERING
370
WASHER BEARING BRACKET TO BRACKET
375
COTTER PIN CYLINDER TO BRACKET
380
METAL SPRING BELLOWS ,4 9579425 498312
390
SCREW METAL SPRING BELLOWS TO BRACKET M 12X70
390
SCREW , Replaced By: N308676012012
390
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
395
LOCK WASHER FITTING TO BRACKET
400
WASHER
405
CYLINDER METAL SPRING BELLOWS,REAR AXLE I
410
SEAL RING , Replaced By: A0239975247
410
SEAL RING
415
BOOT
420
PIN WIRE CABLE TO LEVER
425
WASHER , Replaced By: N000125008443
425
WASHER EXHAUST MUFFLER TO STRAP
430
SPRING WASHER , Replaced By: N000137008212
430
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
435
COTTER PIN ROD TO INTERMEDIATE LEVER
440
WASHER BRACKET TO FENDER BRACKET
445
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
450
BRAKE HOSE FROM FITTING TO REAR AXLE ONE-CIRCUIT PISTON CYLINDER 450 MM
455
CLAMP HOSE TO FITTING
460
ELBOW FITTING DELIVERY LINE TO PUMP
465
LOCK BRAKE HOSE TO ANGLE
470
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
475
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
510
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
515
NUT BRACKET TO SIDE MEMBER
520
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
525
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
530
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
535
TEST CONNECTION
535
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
535
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
535
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
540
PLUG
545
VALVE P.T.O.
550
FITTING , Replaced By: A0019909871
550
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
550
FITTING FROM PUMP TO CYLINDER
555
SEAL RING LINE CONNECTION
555
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
560
FITTING 3/2-WAY VALVE,CONNECTION: "20"
565
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
570
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
575
SCREW. UNION SCREW LINE CONNECTION
575
SCREW. UNION SCREW LINE CONNECTION
576
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
578
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
580
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
585
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
590
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
595
BRACKET PRESSURE SWITCH
595
BRACKET HOSDE TO FRAME
600
BRACKET TRAILING AXLE CONTROL
602
BRACKET TRAILING AXLE CONTROL
605
FITTING HOSE TO BRACKET
610
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
615
SCREW EXHAUST PIPE TO BRACKET
620
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
620
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
620
NUT , Replaced By: N913004008001
999
BRACKET BRAKE POWER REGULATOR
999
ROD BRAKE POWER REGULATOR CONTROL
999
BRACKET METAL SPRING BELLOWS TO REAR AXLE
999
SHIM METAL SPRING BELLOWS
