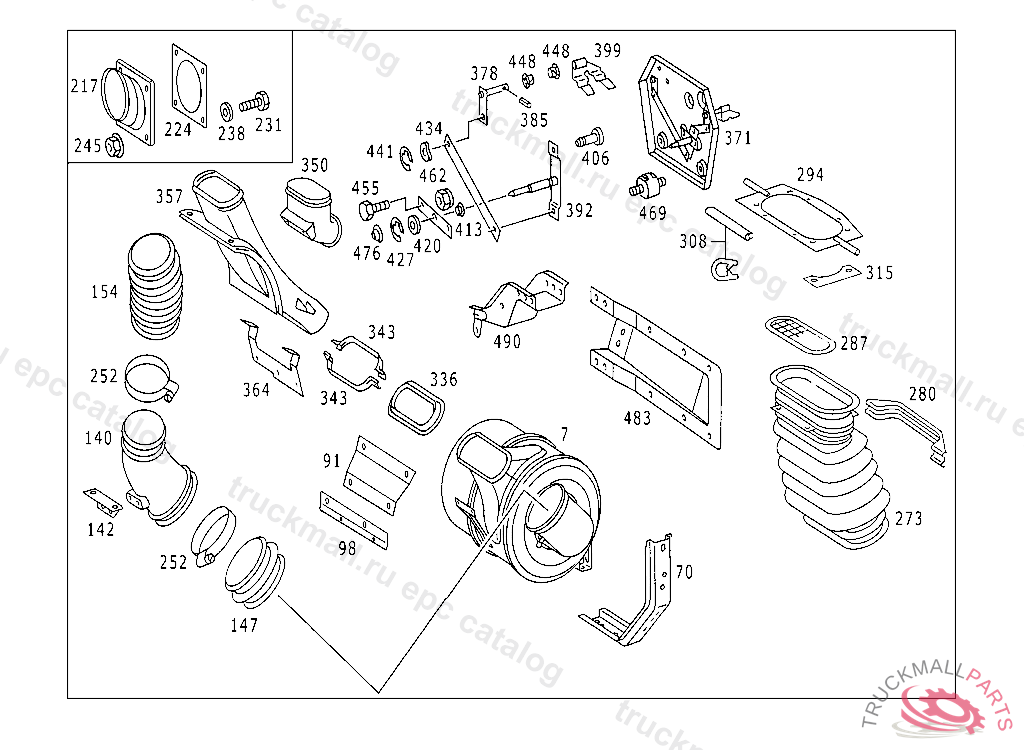

Поз.
Артикул
Описание
7
AIR CLEANERMANN & HUMMEL
7
AIR CLEANER
7
AIR CLEANERMANN + HUMMEL
7
AIR CLEANER
7
AIR CLEANERMANN+HUMMEL
7
AIR CLEANERMANN+HUMMEL
7
AIR CLEANER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0150949802
70
SUPPORT , Replaced By: A6555202133
70
SUPPORT AIR INTAKE, TO BE ADAPTED DURING ASSEMBLY
91
BRACKET AIR CLEANER TO FENDER BRACKET
91
BRACKET AIR CLEANER TO FENDER BRACKET
98
BRACKET AIR CLEANER TO FENDER BRACKET
140
PIPE ELBOW FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
140
AIR INTAKE PIPE
142
BRACKET AIR INTAKE PIPE
147
HOSE AIR INTAKE
147
HOSE , Replaced By: A9415281182
147
HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
154
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
217
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE
217
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE
224
GASKET FROM AIR CLEANER TO ENGINE
231
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
238
WASHER
245
NUT SUPPORT TO SIDE MEMBER
252
CLAMP AIR INTAKE
252
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
252
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
252
CLAMP , Replaced By: N000000000678
252
CLAMP HOSE
273
BOOT FROM AIR CLEANER TO INTAKE PIPE
273
BOOT FROM AIR CLEANER TO INTAKE PIPE
280
CLAMP BOOT TO AIR DUCT AND TO AIR CLEANER
287
STRAINER BOOT
287
STRAINER BELLOWS
294
BRACKET BOOT
294
BRACKET BOOT
308
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
308
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
315
BRACKET BOOT
336
HOSE FROM AIR CLEANER TO INTAKE PIPE
343
STRAP HOSE TO AIR CLEANER AND TO INTAKE PIPE
350
AIR INTAKE PIPE
350
AIR INTAKE PIPE
350
AIR INTAKE PIPE
357
AIR INTAKE PIPE
364
BRACKET AIR INTAKE PIPE
371
COVER AIR DUCT
378
PLATE TOP LEFT AND RIGHT
385
CLAMPING SLEEVE BRACKET TO PLATE
392
LEVER LOCKING MECHANISM
399
BRACKET
399
BRACKET
406
PIN PLATE TO PLATE AND TO LEVER
413
WASHER PLATE TO LEVER
420
WASHER
427
LOCK PLATE INTERMEDIATE BEARING
434
SPRING WASHER SHIFTING CYLINDER TO YOKE
441
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
448
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
455
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
462
NUT , Replaced By: N913004008001
462
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
469
RUBBER BUFFER SUPPORT TO BRACKET
476
GROMMET EXPANSION PLUG
483
BRACKET RIGHT FENDER
483
BRACKET RIGHT FENDER
490
CONSOLE CAB SUSPENSION,REAR
999
CONSOLE
999
HOSE FROM AIR CLEANER TO INTAKE PIPE, ONLY VALID FOR ENGINE 356.988
