Mercedes N000931008254 - Деталь-SCREW

2538 L,2544 L 658.419 DATACARD: CHASSIS-SA 5...../..

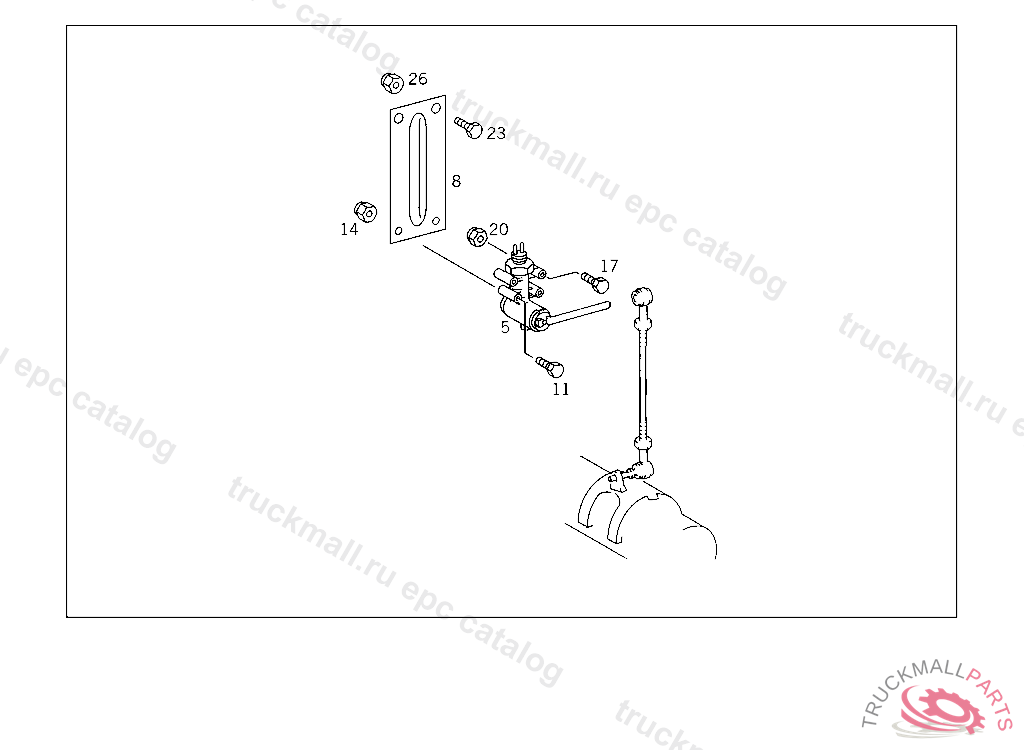

30 CONTROL - 001 ACCELERATOR PEDAL

Поз.
Артикул
Описание
5
A0105427817
TRAVEL SENSOR REAR AXLE,K 186868
8
A6533281640
BRACKET TRAVEL SENSOR TO FRAME SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
11
N304017008053
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
11
N000931008248
SCREW , Replaced By: N304017008053
14
N913004008004
NUT , Replaced By: N913004008001
17
N304014008002
SCREW VALVE TO BRACKET
17
N000931008254
SCREW VALVE TO BRACKET, Replaced By: N304014008002
20
N913004008004
NUT , Replaced By: N913004008001
23
N000933010157
SCREW SUPPORT TO CROSS MEMBER M 10X28
26
N910113010000
NUT STRAP TO BRACKET
26
N913004010008
NUT , Replaced By: N910113010000
999
A6533281140
BRACKET , Replaced By: A6533281640
