Mercedes N000939010050 -

2538 L,2544 L 658.419 DATACARD: CHASSIS-SA 5...../..

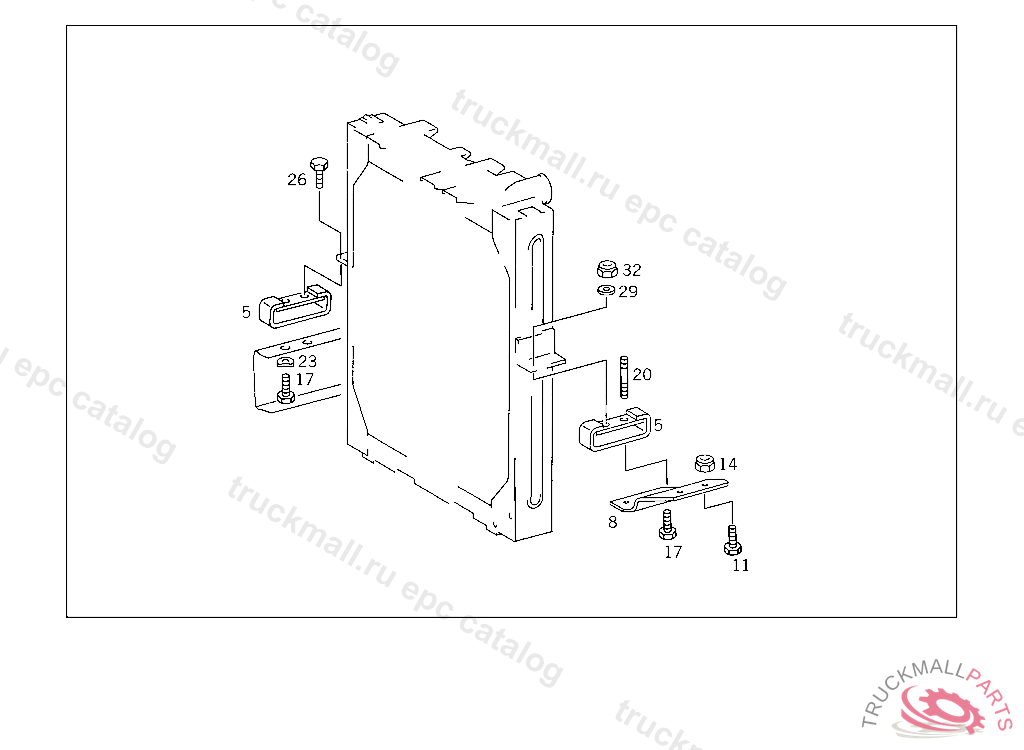

50 RADIATOR - 001 RADIATOR MOUNTING CONSOLE

Поз.
Артикул
Описание
5
A6205040112
RUBBER MOUNTING RADIATOR
8
A6205040801
SUPPORT RADIATOR,LEFT
11
N000961012122
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
14
N910113012002
NUT SUPPORT TO SIDE MEMBER
17
N000933010238
SCREW , Replaced By: N304017010028
17
N304017010028
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
17
N000933010105
SCREW END PIECE TO EXHAUST PIPE M 10X25
20
N000939010050
STUD BOLT BEARING COVER TO TRANSMISSION CASE, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
23
N000137010201
SPRING WASHER STEERING COLUMN BRACKET TO CAB
26
N000933010128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
29
N000125010518
WASHER , Replaced By: N000125010532
29
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
32
N913004010008
NUT , Replaced By: N910113010000
32
N910113010000
NUT STRAP TO BRACKET
