Mercedes N000127004203 - Шайба пружинная A 4

2538 L,2544 L 658.419 DATACARD: CHASSIS-SA 5...../..

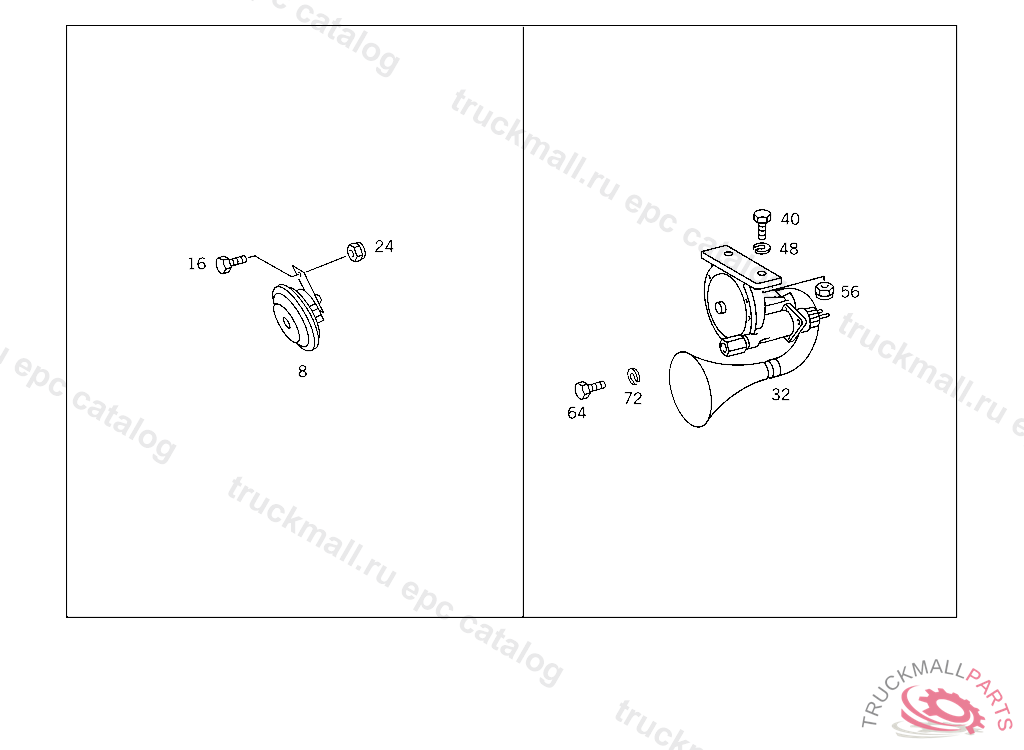

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 HORN,AIR HORN,MOUNTING

Поз.
Артикул
Описание
8
A0045423020
HORN HIGH NOTE BOSCH
8
A0045424520
HORN HIGH NOTE HELLA
8
A0045422920
HORN , Replaced By: A0045424420
8
A0045424420
HORN LOW NOTE BOSCH
16
N000933010128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
24
N910113010000
NUT STRAP TO BRACKET
24
N913004010008
NUT , Replaced By: N910113010000
32
A0005422921
AIR HORN
32
A0005422821
AIR HORN
40
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
40
N000933008153
SCREW , Replaced By: N304017008034
48
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
56
N913004008004
NUT , Replaced By: N913004008001
64
N007985004123
SCREW ELECTRIC CABLE TO HORN
72
N912004004102
LOCK WASHER T-FITTING TO BRACKET
72
N000127004203
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
