Mercedes N000931008396 - Болт

2538 L,2544 L 658.419 DATACARD: CHASSIS-SA 5...../..

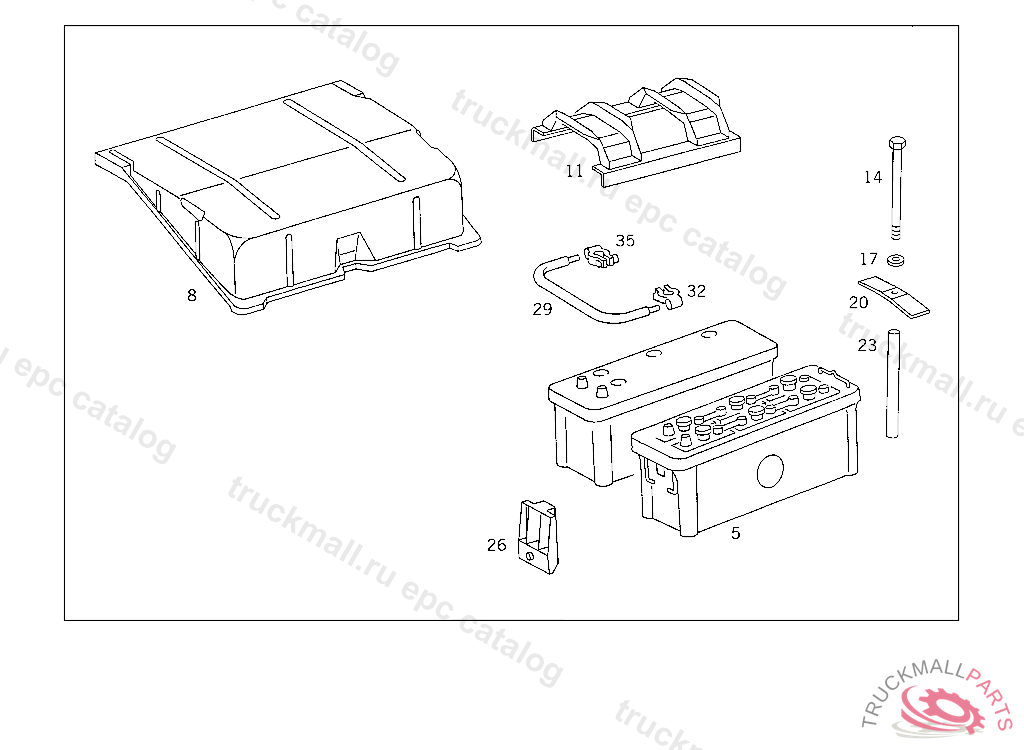

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 BATTERY-CABLE/COVER/ATTACHMENT

Поз.
Артикул
Описание
5
A0045410601
BATTERY12V/200 AH
5
A0045415101
BATTERY12 V/165 AH
5
A0025413701
BATTERY , Replaced By: A0045415101
5
A0025411101
BATTERY12 V/135 AH
5
A0045419001
BATTERY12 V/115 AH
5
A0035418801
BATTERY12V/120 AH
5
A0035410901
BATTERY , Replaced By: A0035418801
8
A6205410303
COVER BATTERY/APPARATUS SUPPORT
11
A6555400023
MOUNTING FRAME BATTERY
11
A6255400123
MOUNTING FRAME BATTERY
11
A6205400023
MOUNTING FRAME BATTERY
14
N000931008367
SCREW BATTERY MOUNTING
14
N000931008396
SCREW BATTERY MOUNTING M 8X260X40
17
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
17
N009021008205
WASHER , Replaced By: N009021008213
20
A6555410226
BRACKET BATTERY MOUNTING
20
A6205410526
BRACKET BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
23
A6205410053
SPACER TUBE BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
26
A6255410016
STOP BATTERY MOUNTING
26
A6205410416
STOP BATTERY MOUNTING
29
A6735460013
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
32
N072332013100
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
35
N072332013200
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
