Mercedes N304017006020 - Винт M 6 X 20 8.8

2538 L,2544 L 658.419 DATACARD: CHASSIS-SA 5...../..

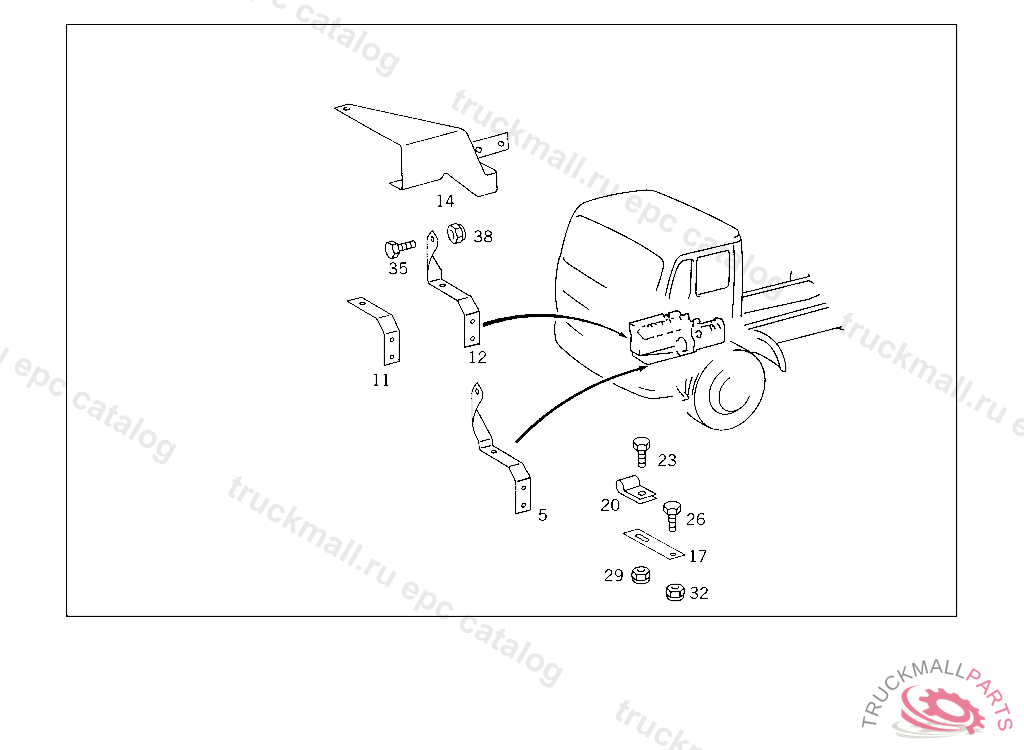

26 TRANSMISSION - 001 COMPRESSED-AIR LINE,FRAME

Поз.
Артикул
Описание
5
A6674710541
BRACKET AT CROSS MEMBER
11
A6552601462
BRACKET AT ENGINE, FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHEK 131865
12
A6552600962
BRACKET AT ENGINE
14
A6555000231
BRACKET CONNECTOR
14
A6552602362
BRACKET OIL LINE TO ENGINE,K 131866
17
A3604280243
ANGLE LINE MOUNTING
20
A3609950601
CLAMP FEED LINE TO THERMOSTAT
23
N000933006121
SCREW , Replaced By: N304017006020
23
N304017006020
SCREW LICENSE PLATE TO BRACKET
26
N000933008154
SCREW , Replaced By: N304017008021
26
N304017008021
SCREW PIPE CLAMP
29
N913004006002
NUT , Replaced By: N913004006001
29
N913004006001
NUT PUMP TO BRACKET
32
N913004008004
NUT , Replaced By: N913004008001
35
N000933008153
SCREW , Replaced By: N304017008034
35
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
35
N000933008147
SCREW , Replaced By: N304017008021
35
N304017008021
SCREW PIPE CLAMP
38
N913004008004
NUT , Replaced By: N913004008001
999
A6552601562
BRACKET BELL HOUSING
