Поз.
Артикул
Описание
5

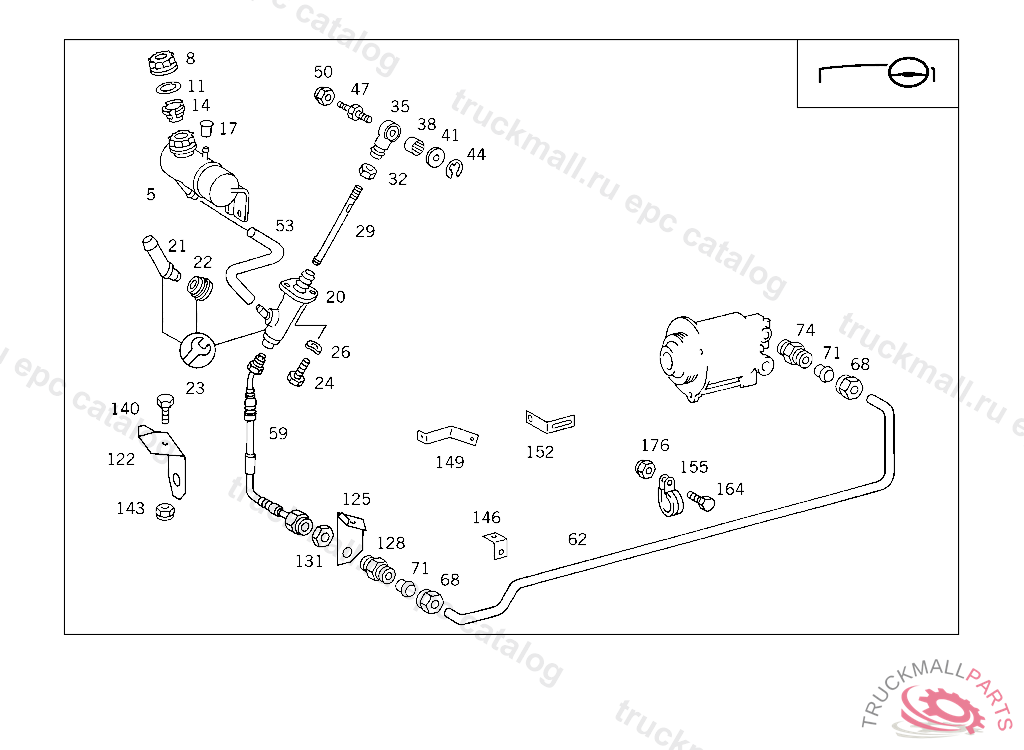

RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
MASTER CYLINDER CLUTCH
21
INTERMEDIATE PIECE
22
PLUG
23
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER
24
SCREW COVER PLATE TO BRACKET
26
SPRING WASHER LICENSE PLATE TO BRACKET
29
ROD CLUTCH MASTER CYLINDER
32
NUT
32
NUT , Replaced By: N304035008001
35
ARTICULATION PIECE CLUTCH MASTER CYLINDER
35
ARTICULATION PIECE CLUTCH MASTER CYLINDER
38
NEEDLE BEARING JOINT TO PIN
38
NEEDLE BEARING JOINT TO PIN
38
NEEDLE BEARING JOINT TO PIN
38
NEEDLE BEARING JOINT TO PIN
41
WASHER BRACKET TO FENDER BRACKET
44
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
47
PIN CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
50
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
50
NUT , Replaced By: N913004008001
53
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
59
LINE FROM MASTER CYLINDER TO PARTITION FITTING 1680 MM,5 582441K 130132
62
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
68
UNION NUT LINE CONNECTION
68
UNION NUT
71
GLAND LINE CONNECTION
74
FITTING (PARTS KIT),LINE RUPTURE
122
BRACKET HYDRAULIC LINE
125
BRACKET BRACKET TO FAN SHROUD BRACKET,K 130132
128
FITTING HYDRAULIC LINE TO BRACKET,K 130132
131
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
140
SCREW COVER PLATE TO BRACKET
143
NUT PUMP TO BRACKET
143
NUT , Replaced By: N913004006001
146
ANGLE LINE MOUNTING
149
BRACKET HYDRAULIC LINE TO BELL HOUSING,5 547965K 130132
152
BRACKET FUEL LINE TO BELL HOUSING
155
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
155
CLAMP ,K 147121, Replaced By: N000000000319
164
SCREW , Replaced By: N304017006016
164
SCREW PUMP TO BRACKET
176
NUT PUMP TO BRACKET
999
CLAMP LINE MOUNTING
