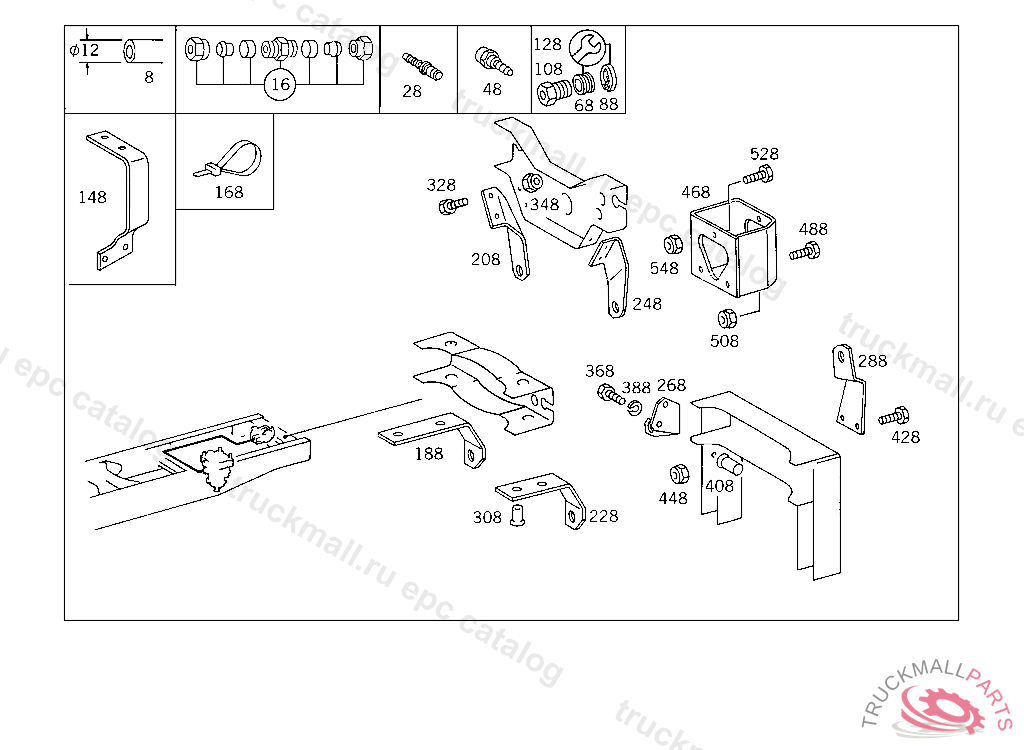

Поз.
Артикул
Описание
8
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
8
HOSE , Replaced By: A0009872827
16
FITTING (PARTS KIT),LINE RUPTURE
28
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
48
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
68
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
88
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
108
SCREW. UNION SCREW LINE CONNECTION
128
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
148
BRACKET TO MOUNT PLASTIC PIPING
168
LOOM TIE LINE MOUNTING
168
LOOM TIE , Replaced By: A0019978490
188
BRACKET , Replaced By: A6554292940
188
BRACKET BRAKE LINE COUPLING,"SUPPLY",K 119510
208
BRACKET RIGHT BRAKE LINE COUPLING,5 561192
228
BRACKET BRAKE LINE COUPLING,"SUPPLY",K 119510
248
BRACKET LEFT BRAKE LINE COUPLING,5 561192
268
BRACKET BRAKE LINE COUPLING
288
BRACKET BRAKE LINE COUPLING
308
RIVET REAR CROSS MEMBER 12X42 MM
308
RIVET FRAME TRUSS TO SIDE MEMBER
328
SCREW , Replaced By: N304017008021
328
SCREW PIPE CLAMP
348
NUT , Replaced By: N913004008001
348
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
368
SCREW REAR EXHAUST PIPE TO MUFFLER
388
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
408
RIVETED NUT BRACKET TO UNDERRUN PROTECTION
428
SCREW PIPE CLAMP
428
SCREW , Replaced By: N304017008021
448
NUT , Replaced By: N913004008001
448
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
468
BRACKET DOUBLE BRAKE LINE COUPLING,K 119510
468
BRACKET DOUBLE BRAKE LINE COUPLING,K 119510
488
SCREW SUPPORT TO CROSS MEMBER M 10X28
508
NUT STRAP TO BRACKET
508
NUT , Replaced By: N910113010000
528
SCREW END PIECE TO EXHAUST PIPE M 10X25
548
NUT , Replaced By: N910113010000
548
NUT STRAP TO BRACKET
999
NUT , Replaced By: N913004008001
999
SCREW , Replaced By: N304017008021
999
WASHER , Replaced By: A3609902340
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
