Поз.
Артикул
Описание

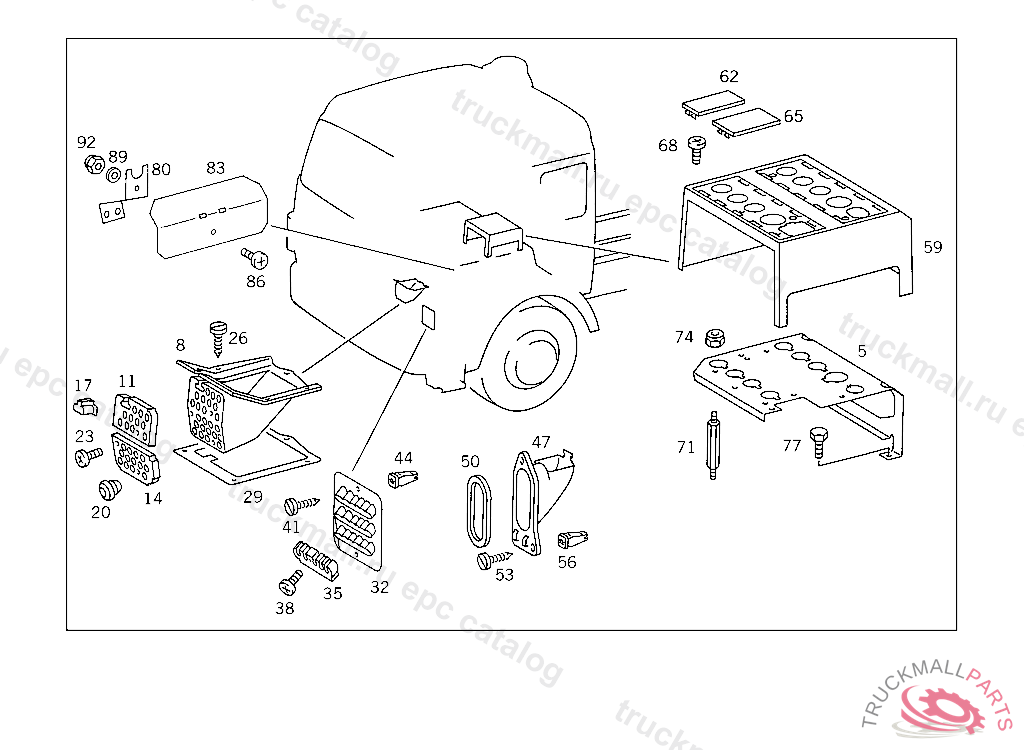

5
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
5
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
8
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
11
PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
14
PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
17
GASKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
20
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
23
SCREW PLATE TO BRACKET
26
SHEET METAL SCREW BRACKET TO FLOOR PLATE
29
GASKET BETWEEN BRACKET AND CAB FLOOR
32
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
32
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
35
PLATE COMPRESSED AIR LINE MOUNTING
38
SCREW PLATE TO BRACKET, Replaced By: N007985006590
38
SCREW PLATE TO BRACKET, Replaced By: N000000001481
38
SCREW PLATE TO BRACKET
41
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
41
SHEET METAL SCREW BRACKET TO FIRE WALL
44
TREENAIL BRACKET TO FIRE WALL
44
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
47
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
47
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
50
GASKET BRACKET
53
SHEET METAL SCREW BRACKET TO FIRE WALL
53
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
56
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
56
TREENAIL BRACKET TO FIRE WALL
59
PROTECTIVE PLATE BRACKET
59
PROTECTIVE PLATE BRACKET, Replaced By: A6554300562
59
PROTECTIVE PLATE BRACKET, Replaced By: A6554300662
59
COVERING BRACKET, Replaced By: A6554300162
59
COVERING BRACKET, Replaced By: A6554300262
59
PROTECTIVE PLATE BRACKET
62
COVERING IN PLACE OF SWITCH 82X44,5 MM
65
COVERING IN PLACE OF SWITCH 82X56,5 MM
68
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
71
PIN BRACKET TO ENGINE TUNNEL
74
NUT PUMP TO BRACKET
74
NUT , Replaced By: N913004006001
77
SCREW , Replaced By: N304017006034
77
SCREW COVER PLATE TO COVER PLATE M 6 X 10
80
BRACKET HEAT SHIELD MOUNTING
83
COVERING EXHAUST PIPE
86
SCREW CLAMP MOUNTING M 6X16
86
SCREW , Replaced By: N000000001146
89
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
89
WASHER COMPRESSED AIR LINE TO BRACKET
92
NUT , Replaced By: N913004006001
92
NUT PUMP TO BRACKET
