Главная
›
Mercedes
›
BUS
›
O 371 UP S&S TRANSITBUS
›
665.008
›
55 HYDRAULIC SYSTEM
›
090 COMPRESSOR
Mercedes N000934010005 - ГАЙКА М10

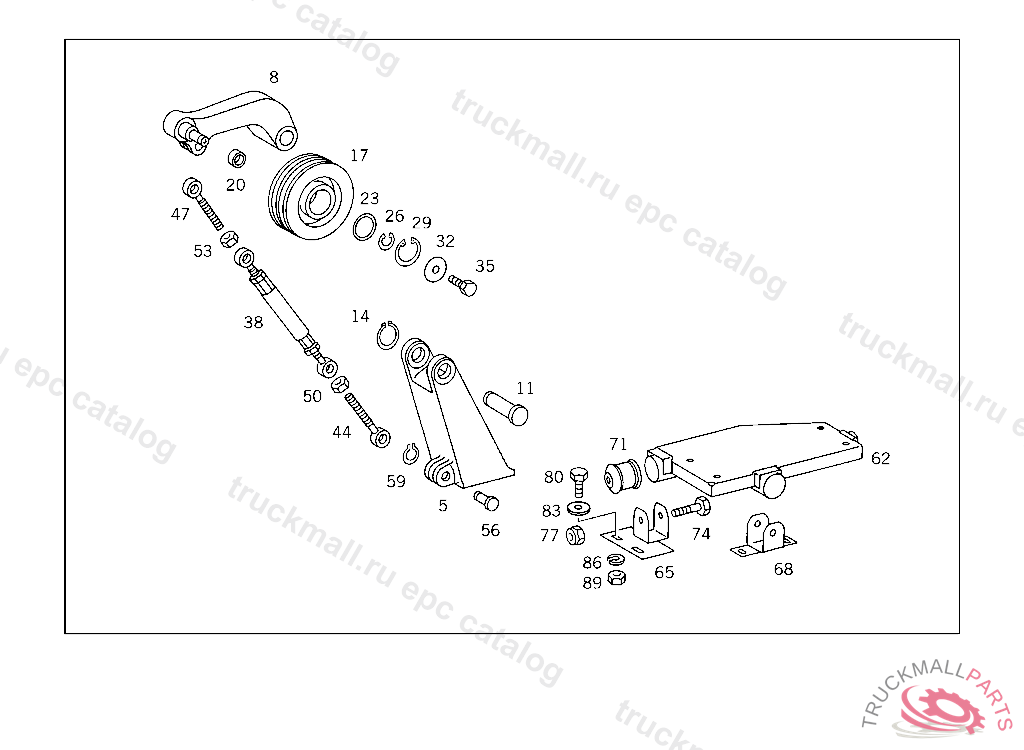

O 371 UP S&S TRANSITBUS 665.008
55 HYDRAULIC SYSTEM - 090 COMPRESSOR
Поз.
Артикул
Описание
5
A3645527040
8
A3645507013
11
A3645517174
14
N000471025001
LOCK RING
17
A3645527079
20
A3012060053
SPACER TUBE
23
A3022050552
SPACER WASHER BELT TIGHTENER 0.20 MM
23
A3022050652
SPACER WASHER BELT TIGHTENER 0.50 MM
23
A3642057152
SPACER WASHER BELT TIGHTENER 0.20 MM
23
A3642057252
SPACER WASHER BELT TIGHTENER 1.00 MM
23
A3642057052
SPACER WASHER BELT TIGHTENER 0.20 MM
23
A3022050752
SPACER WASHER BELT TIGHTENER 1.00 MM
26
N000471020000
LOCK RING BELT TIGHTENER
29
N000472042000
LOCK RING BELT TIGHTENER
32
A3645517076
35
N000933006223
SCREWM 6X12
38
A3645507077
44
A3649907523
47
A3649907623
50
N000934014000
NUT SPARE WHEEL CARRIER
53
N000934014002
NUT STRAP TO SUPPORT
56
A3645517274
59
N000471014001
LOCK RING PAWL TO HAND BRAKE LEVER
62
A6655507038
65
A6655507021
68
A6645507221
BEARING RADIATOR
68
A3015500740
BRACKET
71
A3649887011
BUFFER BEARING BRACKET TO CONSOLE
74
N000960012345
SCREW
77
N913004012006
NUT ALTERNATOR TO SUPPORT
80
N000933010129
SCREW , Replaced By: N304017010002
83
N009021010102
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
86
N000127010202
LOCK WASHER , Replaced By: N912004010102
89
N000934010005
NUT BRACKET TO RETARDER
