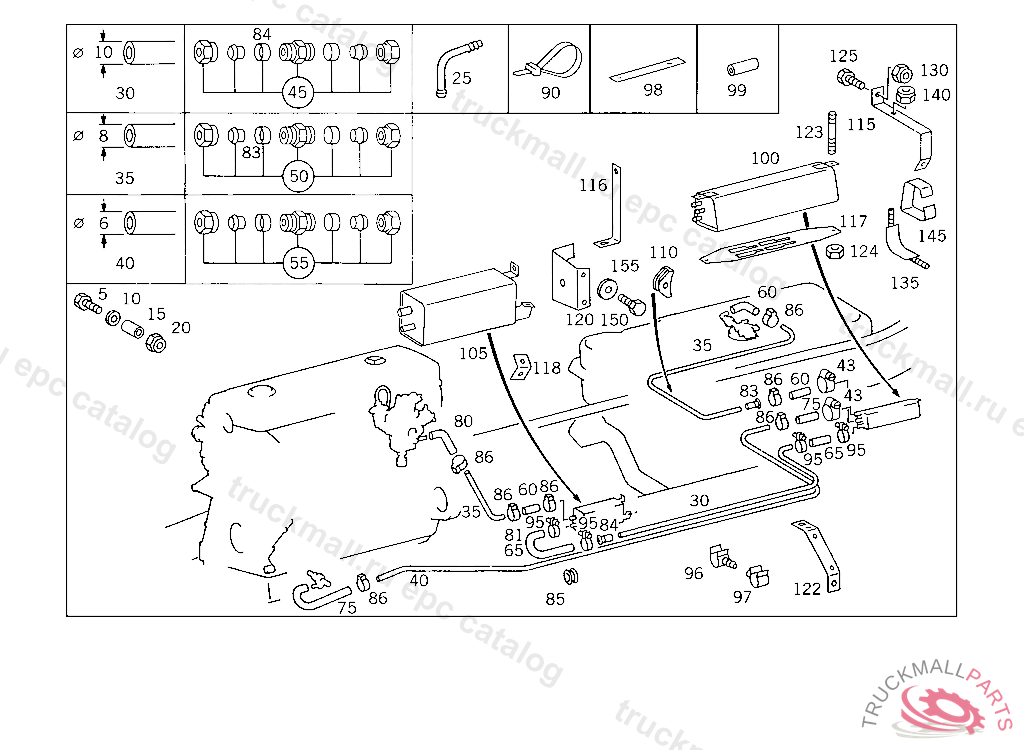

Поз.
Артикул
Описание
5
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
10
WASHER EXHAUST MUFFLER TO STRAP
15
SPACER TUBE BRACKET TO FRAME SIDE MEMBER
20
NUT STRAP TO BRACKET
25
LINE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER
30
HOSETO 346 500 60 03, ORDER BY THE METER
35
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
40
PLASTIC PIPE RISING PIPE 4X6 MM
40
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
43
CLAMP , Replaced By: N000000000671
43
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
45
FITTING (PARTS KIT),LINE RUPTURE
50
FITTING (PARTS KIT),LINE RUPTURE
50
FITTING , Replaced By: A0029905971
55
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
60
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
65
HOSE , Replaced By: A2019970852
65
HOSE FROM ACTIVATED CHARCOAL FILTER TO ACTIVATED CHARCOAL FILTER
75
HOSE , ORDER BY THE METER
75
MOLDED HOSE
75
HOSE ENGINE TO REGENERATION VALVE RECHTS, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
80
HOSE FROM ACTIVATED CHARCOAL FILTER TO CARBURETOR
81
HOSE FROM ACTIVATED CHARCOAL FILTER TO ACTIVATED CHARCOAL FILTER
83
SLEEVE LINE CONNECTION
84
SLEEVE FEED
85
GROMMET BREATHER LINE
86
LOOM TIE VENT VALVE TO FUEL TANK
90
LOOM TIE LINE MOUNTING 280 MM
90
LOOM TIE LINE MOUNTING
95
CLAMP LINE CONNECTION
95
CLAMP , Replaced By: N000000000665
95
CLAMP CHECK VALVE,K 169122
95
HOSE CLAMP HOSE FASTENING 9/13MM
95
CLAMP LINE CONNECTION
95
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
96
CLAMP6/14-15 MM
97
CLAMP HOSE TO HOSE M
98
BRACKET , MODELS 667.000-009,060-069 N 000000 P 019277
99
PLUG. LOCKING CAP , MODELS 667.060-069
100
ACTIVATED CHARCOAL FILTER , A 363212
100
ACTIVATED CHARCOAL FILTER , A 363212
100
ACTIVATED CHARCOAL FILTER , MODELS 667.000-009,060-069 N 000000 P 019277
100
ACTIVATED CHARCOAL FILTER , Replaced By: A1294701259
105
ACTIVATED CHARCOAL FILTER , 023 ONLY APPLICABLE TO RETROFIT AND CATALYST VEHICLES WITH CODE 620 OR 821
110
BRACKET FUEL LINE TO CROSS MEMBER, MODELS 667.000-009,060-069 N 000000 P 019277
115
BRACKET ACTIVATED CHARCOAL FILTER, MODELS 667.000-009,060-069 877503 N 000000 P 000000
116
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
116
BRACKET , Replaced By: A3524920141
117
BRACKET AT TANK,P 153123
118
BRACKET REAR LEFT, Replaced By: A3604280243
118
BRACKET , Replaced By: A4255241340
118
BRACKET , Replaced By: A3604280243
118
ANGLE LINE MOUNTING
120
BRACKET ACTIVATED CHARCOAL FILTER TO SIDE MEMBER, MODELS 667.000-009,060-069 N 000001 P 019278
122
BRACKET FEED LINE AND RETURN LINE
123
STUD BOLT COVER TO CASE
124
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
125
SCREW STRUT TO CROSS MEMBER M 10X25
125
SCREW CABLE HARNESS MOUNTING
125
SCREW BRACKET TO CONSOLE
130
NUT CROSS MEMBER TO SIDE MEMBERS
130
NUT STRAP TO BRACKET
135
STRAP , MODELS 667.000-009,060-069 877503 N 000000 P 000000
140
NUT HEATING PIPE TO BRACKET
145
RUBBER STRIP , MODELS 667.000-009,060-069 877503 N 000000 P 000000
150
SCREW TAIL LAMP TO BRACKET
155
WASHER , Replaced By: N009021006208
155
WASHER COMPRESSED AIR LINE TO BRACKET
999
BRACKET ACTIVATED CHARCOAL FILTER TO SIDE MEMBER, MODELS 667.000-009,060-069 N 000000 P 019277
999
BRACKET CATALYST,REAR, N 000000 P 019277
999
HOSE FROM AIR CLEANER TO INTAKE PIPE
999
GUIDE SIGN FILLER PIPE, SUBSEQUENT INSTALLATION
