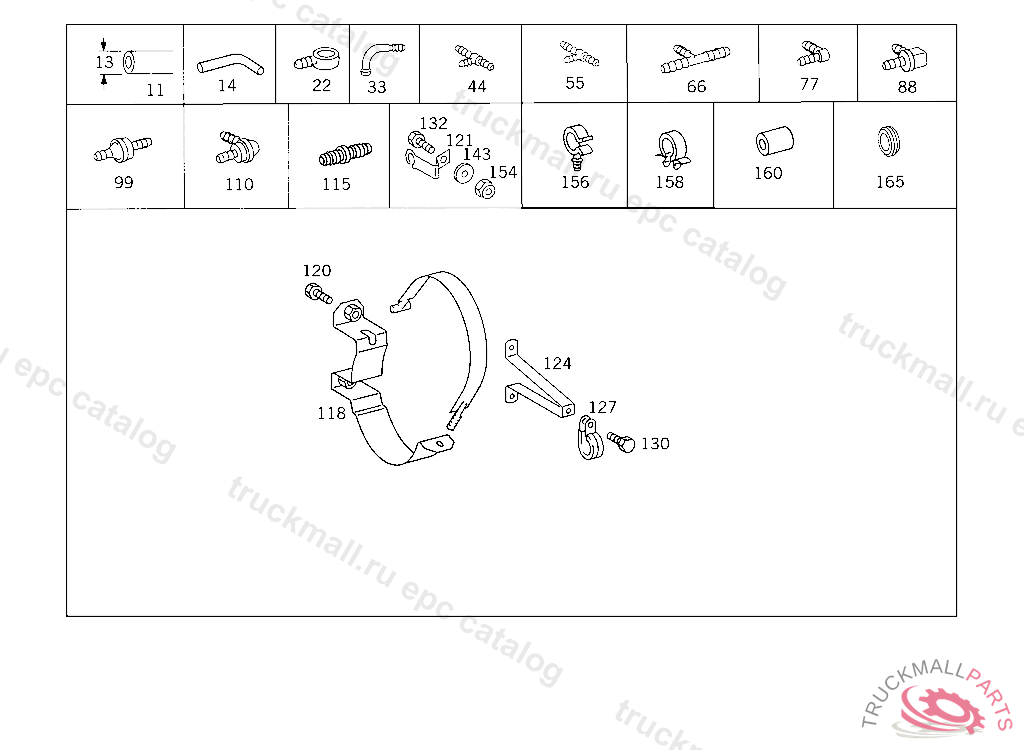

Поз.
Артикул
Описание
11
HOSE , Replaced By: A0139971282
11
HOSE FEED LINE AND RETURN LINE 10,5X13 MM, ORDER BY THE METER
14
HOSE FROM HOSE TO CONNECTION "1", N 000001 P 149402
14
HOSE , Replaced By: A6014351082
22
BANJO UNION FEED LINE,K 169122
33
LINE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER
33
CONNECTOR. LINE FROM INTAKE MANIFOLD TO CHECK VALVE,556499
33
LINE , FROM CHASSIS 500000-513755 + UP TO CHASSIS 187728
44
T-FITTING
55
T-FITTING VACUUM LINE,649390
66
T-FITTING VACUUM LINE
77
ELBOW FITTING VACUUM LINE
88
ELBOW FITTING SHIFTING CYLINDER
99
VALVE , Replaced By: A0004316107
99
VALVE
99
VALVE (CHECK VALVE), FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
99
VALVE (CHECK VALVE)
110
VALVE (CHECK VALVE), FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
110
VALVE
115
THROTTLE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER
118
BRACKET AIR RESERVOIR
120
SCREW BRACKET TO CONSOLE
121
BRACKET LINE MOUNTING, NOT CARRIED AS A SPARE PART
124
BRACKET BRAKE CABLE
127
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
130
SCREW , WITH DIESEL ENGINE
132
SCREW COVER PLATE TO COVER PLATE M 6 X 12
143
WASHER COMPRESSED AIR LINE TO BRACKET
143
WASHER , Replaced By: N009021006208
154
NUT HEATING PIPE TO BRACKET
156
BRACKET OIL LINES
156
CLAMP , Replaced By: A1159950365, +001A0039976090
156
CLAMP. EXTENDABLE SPACER BREATHER LINE
158
CLAMP
158
CLAMP
160
RUBBER RING PROTECTION AGAINST SCORING FOR PIPE LINE
160
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
165
GROMMET ,D 314239
