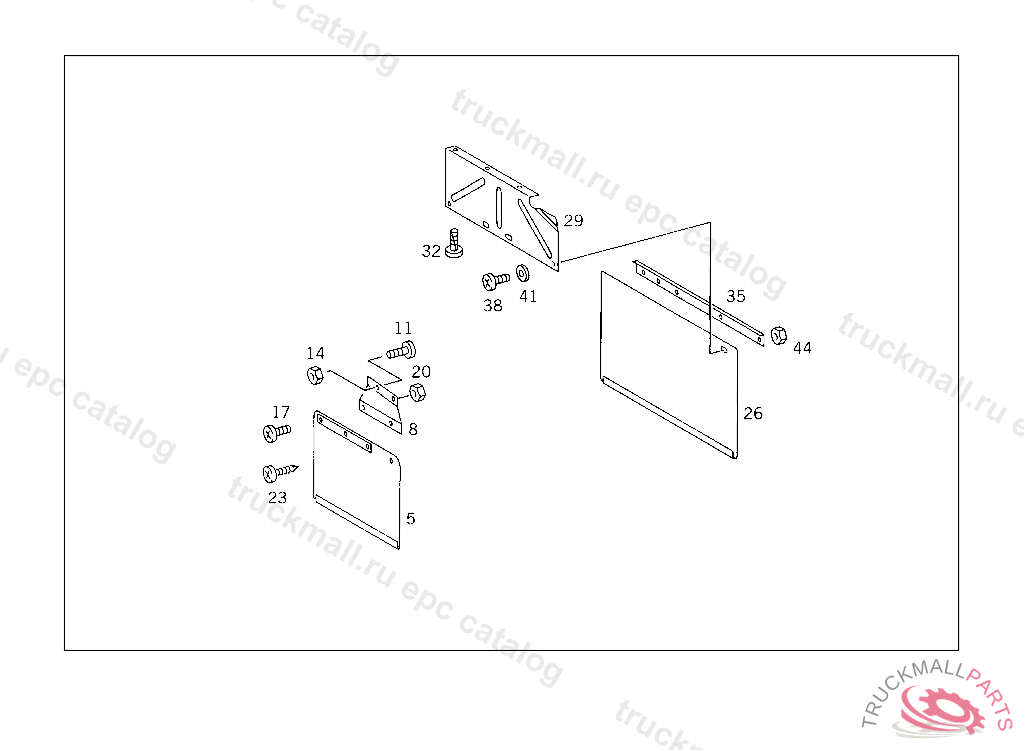

Поз.
Артикул
Описание
5
SPLASH GUARD FRONT,870375 UP TO IDENT NO. 870374, SEE GROUP 88
8
BRACKET RIGHT FRONT,870375 UP TO IDENT NO. 870374, SEE GROUP 88
8
BRACKET LEFT FRONT,870375 UP TO IDENT NO. 870374, SEE GROUP 88
11
SCREW APPARATUS PLATE TO CAB,K 062140
11
SCREW , Replaced By: N007985006580
14
NUT SPRING-LOADED PUSH ROD
17
SCREW STEP SWITCH
20
NUT TACHOGRAPH TO BRACKET
23
TAPPING SCREW COVER AND BRACKET TO CAB CORNER PILLAR
23
SHEET METAL SCREW , Replaced By: N000000000463
26
SPLASH GUARD FRONT FENDER
29
BRACKET REAR LEFT,870375 UP TO IDENT NO. 870374, SEE GROUP 88
29
BRACKET REAR RIGHT,870375 UP TO IDENT NO. 870374, SEE GROUP 88
32
TAPPING SCREW BRACKET TO CAB FLOOR
35
RAIL ,870375 UP TO IDENT NO. 870374, SEE GROUP 88
38
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
41
WASHER SWITCH TO FIRE WALL
44
NUT SPRING-LOADED PUSH ROD
