Mercedes A6139900370 - T-REDUZIERSTUTZEN

O 345,CONECTO C 671.015

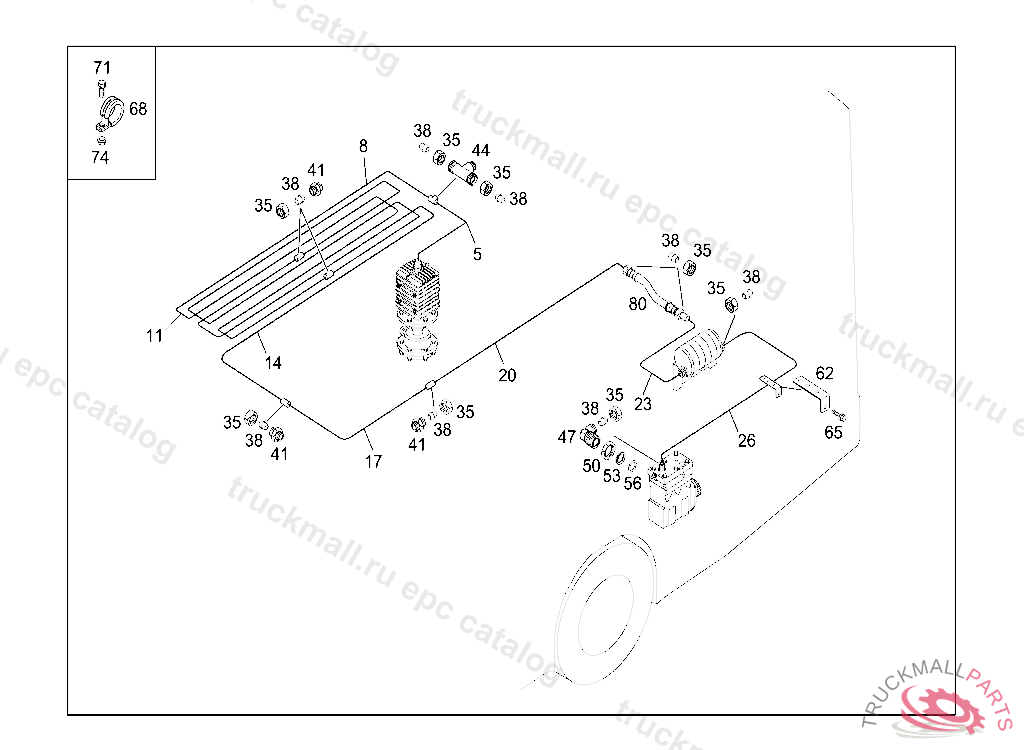

42 BRAKES - 057 18-MM COMPRESSED AIR LINES IL. 1

Поз.
Артикул
Описание
5
A6714208028
8
A6714209729
11
A6714209429
14
A6714209629
14
A6714202928
17
A6714202828
20
A6714202728
23
A6714209029
26
A6714208929
35
N000000006242
NUT COMPRESSED AIR LINES
38
A0019901167
SEAL CONE LINE MOUNTING
41
N003902018002
CONNECTION FITTING LINE CONNECTIONS
44
A6139900370
T-FITTING
47
A6139900170
50
N080705026000
NUT , Replaced By: N080705026003
53
A0004290527
THRUST RING SUCTION LINE TO OIL PUMP
56
A0039973848
SEAL RING LINE CONNECTION
62
A6298321013
BRACKET
68
N000000006234
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 18/15, Replaced By: A0019951142
71
N910105006008
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
74
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
80
A0014292135
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
