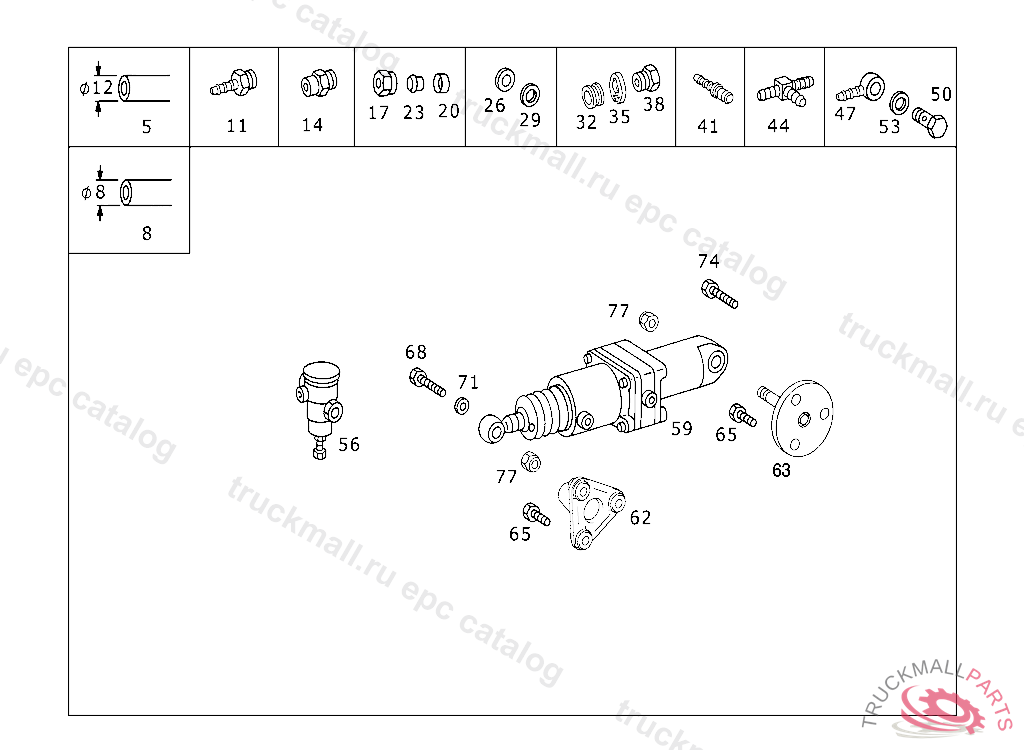

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
8
PLASTIC PIPE AERATION, ORDER BY THE METER
11
FITTING BULKHEAD FITTING
14
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
17
UNION NUT LINE CONNECTION, Replaced By: N000000006239
17
UNION NUT LINE CONNECTION
20
SLEEVE LINE CONNECTION
23
SEAL CONE LINE CONNECTION
26
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
29
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
32
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
35
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
38
SCREW. UNION SCREW LINE CONNECTION
41
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
41
CONNECTOR HOSE WIDTH, 6 MM, TO M22
44
T-FITTING PRESSURE REGULATOR ON GAS MIXER
47
BANJO UNION
50
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
53
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
56
VALVE (PRESSURE RELIEF VALVE)
59
SHIFTING CYLINDER
59
SHIFTING CYLINDER , Replaced By: A0012607163, +002A0009973834
62
BRACKET TRANSMISSION CASE,REAR
63
BRACKET AT TRANSMISSION, Replaced By: A6292600462
63
BRACKET
65
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
65
HEXALOBULAR BOLT , Replaced By: N910105010011
68
SCREW ROD TO TRANSFER CASE M 14X65
68
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
68
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
71
WASHER STRAP TO BRACKET
74
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
74
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
77
NUT STEERING SUPPORT TO FRAME
77
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
77
HEXAGON NUT BRACKET TO SIDE MEMBER M14 X 1,5
77
NUT SUPPORT TO FRAME
999
JOINT
