Поз.
Артикул
Описание

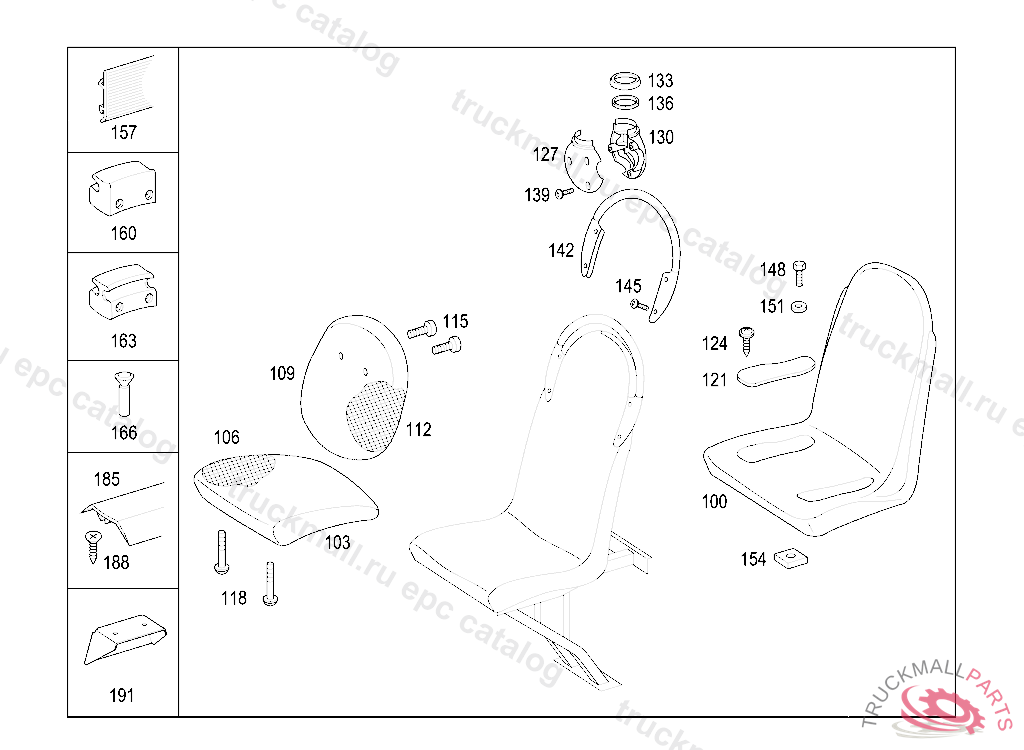

100
100
SEAT SHELLTO A6289400155
100
100
SEAT SHELL
103
SEAT CUSHION REAR SINGLE SEATS, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
106
COVER COVER TO SEAT CUSHION TO A6289400921, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
109
BACKREST REAR SINGLE SEATS, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
112
COVERTO A6289401331, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
115
SCREWM4X12
115
HEXALOBULAR BOLT MOUNTING PARTS M4X16
118
SCREW T-FITTING TO BRACKET
121
121
124
SHEET METAL SCREW PANELLING TO INTERIOR PLATE
127
BRACKET LEFT
127
BRACKET RIGHT
130
BRACKET RIGHT
130
BRACKET LEFT
133
RING
136
RING
139
SCREW
142
HANDLE
145
SCREW
148
SCREW PIPE CLAMP
148
SCREW BRACKET TO CROSS CONNECTION STRUT
151
WASHER BRACKET TO CAB REAR PANEL
154
157
160
163
166
NUT , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.06.2010
185
188
TAPPING SCREW2,9X13
