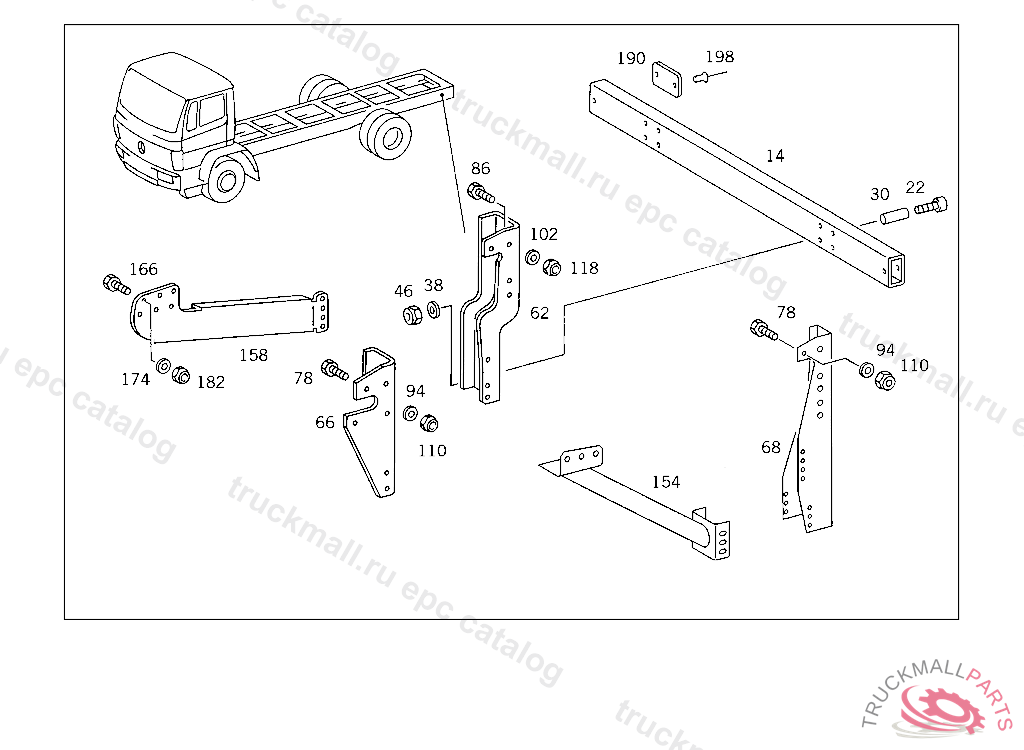

Поз.
Артикул
Описание
14
BUMPER
14
BUMPER
14
BUMPER
22
SCREW , Replaced By: N000912010225
22
CAP BOLT. SCREW BUMPER TO BRACKET,5 398606
30
SPACER TUBE BUMPER TO BRACKET,5 398606
38
WASHER RADIATOR TO RUBBER MOUNTING
38
WASHER , Replaced By: N000125010532
46
NUT , Replaced By: N910113010000
46
NUT STRAP TO BRACKET
62
BRACKET BUMPER,RIGHT
62
BRACKET BUMPER,RIGHT
62
BRACKET BUMPER,LEFT
62
BRACKET BUMPER,LEFT
62
BRACKET BUMPER,LEFT
62
BRACKET BUMPER,LEFT
62
BRACKET BUMPER,RIGHT
62
BRACKET BUMPER,RIGHT
66
BRACKET SHOCK ABSORBER TO CONSOLE AND TO CAB
66
BRACKET BUMPER,RIGHT
68
BRACKET BUMPER,LEFT
68
BRACKET BUMPER,RIGHT
78
SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 391899, Replaced By: A6739900514
78
SCREW END PIECE TO EXHAUST PIPE M 10X25
78
SCREW END PIECE TO EXHAUST PIPE M 10X25
78
SCREW BRACKET TO SIDE MEMBER M 10X30
78
SCREW BRACKET TO SIDE MEMBER M 10X30
78
SCREW REAR EXHAUST PIPE TO MUFFLER
78
SCREW BRACKET TO SIDE MEMBER M 14X33
78
SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 391899, Replaced By: A6739900614
86
SCREW , Replaced By: N308676014020
86
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
86
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
86
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
86
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
86
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
86
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
86
SCREW BRACKET TO SIDE MEMBER
86
SCREW BRACKET TO SIDE MEMBER
86
SCREW BRACKET TO SIDE MEMBER
86
SCREW BRACKET TO SIDE MEMBER
94
WASHER RADIATOR TO RUBBER MOUNTING
94
WASHER , Replaced By: N000125010532
102
WASHER , Replaced By: N000125015019
102
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
102
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
110
NUT , Replaced By: N910113010000
110
NUT STRAP TO BRACKET
110
ANGLE RIGHT
110
ANGLE FRONT LEFT
110
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
110
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
118
NUT , Replaced By: N910113014001
118
NUT BRACKET TO SIDE MEMBER
118
NUT BRACKET TO SIDE MEMBER
118
NUT BRACKET TO SIDE MEMBER
118
NUT STEERING SUPPORT TO FRAME
118
NUT STEERING SUPPORT TO FRAME
118
NUT , Replaced By: N910113014000
154
STAY RIGHT
154
STAY LEFT
158
STRUT , Replaced By: A6745250170
158
STRUT , Replaced By: A6745250170
158
STRUT , Replaced By: A6745250070
158
STRUT RIGHT, TO BE ADAPTED DURING ASSEMBLY
158
STRUT RIGHT, TO BE ADAPTED DURING ASSEMBLY
158
STRUT LEFT
158
STRUT LEFT
158
STRUT , Replaced By: A6745250070
166
SCREW BRACKET TO SIDE MEMBER
166
SCREW BRACKET TO SIDE MEMBER
166
SCREW BRACKET TO SIDE MEMBER
174
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
174
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
174
WASHER , Replaced By: N000125015019
182
NUT , Replaced By: N910113014001
182
NUT BRACKET TO SIDE MEMBER
182
NUT BRACKET TO SIDE MEMBER
190
REFLECTOR
190
REFLECTOR
198
RIVET REFLECTOR TO BUMPER,K 062690
999
SCREW BRACKET TO SIDE MEMBER
999
WASHER STRUT TO CROSS MEMBER
999
WASHER , Replaced By: N007349010007
999
SCREW , Replaced By: N304017010002
999
ANGLE
999
BRACKET TAIL LAMP BRACKET
999
BRACKET
999
STAY RIGHT
999
STAY LEFT
999
ANGLE
999
ANGLE , Replaced By: A6735250341
999
STIFFENING
