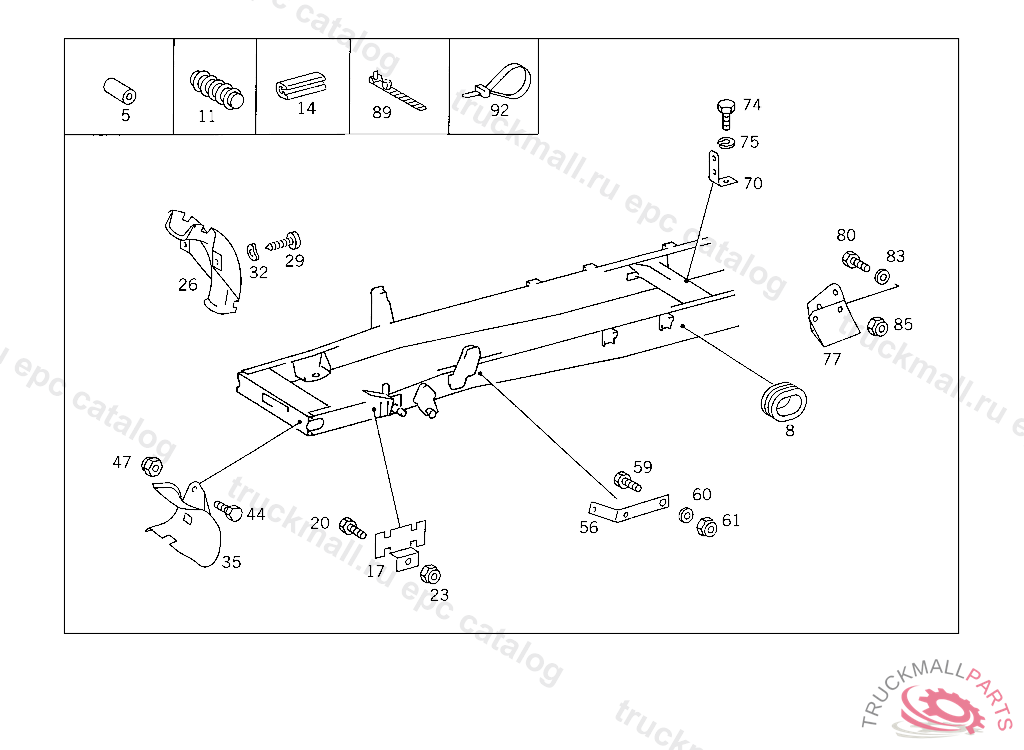

Поз.
Артикул
Описание
5
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
8
GROMMET FOR PASSAGE OF LINE
11
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
14
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
14
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
17
BRACKET BREATHER LINE TO SIDE MEMBER
20
SCREW BRACKET TO CROSS CONNECTION STRUT
20
SCREW , Replaced By: N304017008034
23
NUT , Replaced By: N913004008001
23
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
23
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
26
BRACKET COMPRESSED AIR LINE TO CAB
29
SHEET METAL SCREW BRACKET TO CAB
32
SPRING WASHER LICENSE PLATE TO BRACKET
35
BRACKET CABLE HARNESS
35
BRACKET LEFT
44
SCREW END PIECE TO EXHAUST PIPE M 10X25
47
NUT , Replaced By: N910113010000
47
NUT STRAP TO BRACKET
56
BRACKET LINE MOUNTING
56
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
59
SCREW , Replaced By: N304017010043
59
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
59
SCREW BRACKET TO CONSOLE
59
SCREW , Replaced By: N308676012026
60
WASHER BRACKET TO FRAME
61
NUT SUPPORT TO SIDE MEMBER
61
NUT , Replaced By: N910113010000
61
NUT STRAP TO BRACKET
70
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
74
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
74
SCREW , Replaced By: N304017008039
75
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
77
BRACKET COMPRESSED AIR LINE
80
SCREW END PIECE TO EXHAUST PIPE M 10X25
83
WASHER , Replaced By: N006902011102
83
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
83
WASHER , Replaced By: N006902011100
85
NUT , Replaced By: N910113010000
85
NUT STRAP TO BRACKET
89
LOOM TIE
92
LOOM TIE LINE MOUNTING 280 MM
92
LOOM TIE LINE MOUNTING
999
CLAMP BRAKE HOSE
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
999
CLAMP BRAKE HOSE
