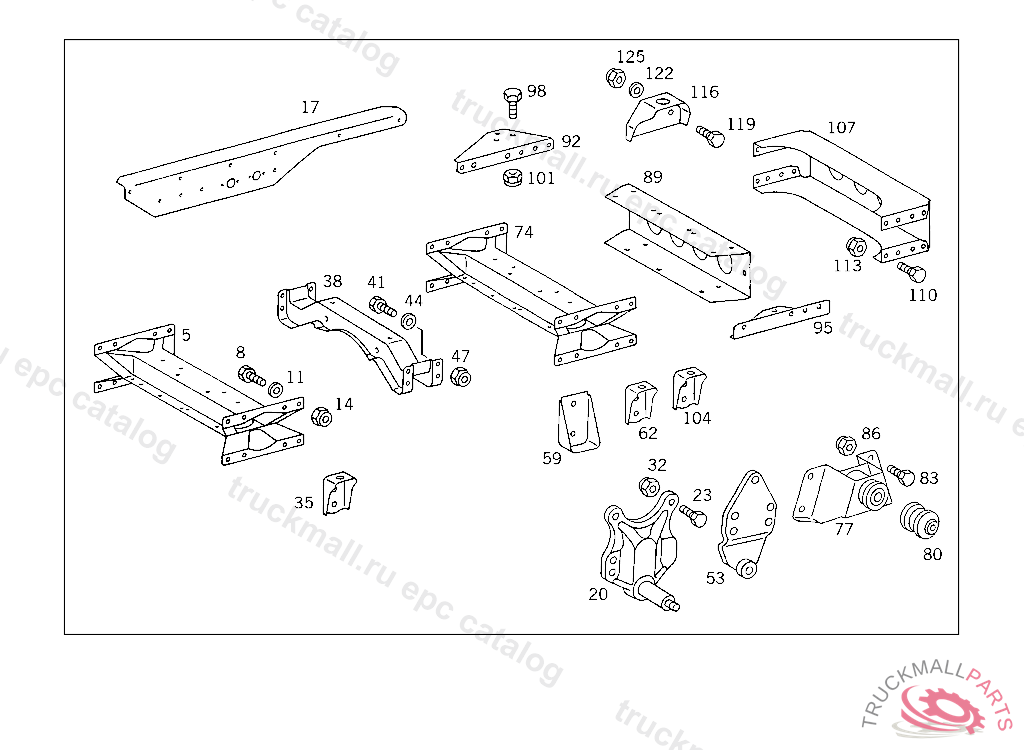

Поз.
Артикул
Описание
5
CROSS MEMBER REAR SPRING BRACKET NO.9
20
SPRING BRACKET REAR SPRING FRONT BRACKET
23
SCREWM 14X15X17X34
23
SCREWM 14X15X21X38
23
SCREWM 14X15X19X36
32
NUT , Replaced By: N910113014000
32
NUT STEERING SUPPORT TO FRAME
35
CONSOLE BODY MOUNTING
38
CROSS MEMBER SHOCK ABSORBER
59
REINFORCEMENT AT SIDE MEMBER
62
CONSOLE BODY MOUNTING
74
CROSS MEMBER IN FRONT OF REAR CROSS MEMBER
77
SPRING BRACKET REAR-SPRING REAR BRACKET
80
BUSHING SPRING EYE,REAR
83
SCREWM 14X15X15X32
83
SCREWM 14X15X17X34
86
NUT STEERING SUPPORT TO FRAME
86
NUT , Replaced By: N910113014000
107
CROSS MEMBER (REAR CROSS MEMBER),H.D., NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
110
SCREW , Replaced By: N308676014008
110
SCREW MOUNTING TO CONSOLE M 14X35
113
NUT , Replaced By: N910113014000
113
NUT STEERING SUPPORT TO FRAME
116
CONSOLE BODY MOUNTING
119
SCREW , Replaced By: N304017010002
119
SCREW BRACKET TO SIDE MEMBER
122
WASHER RADIATOR TO RUBBER MOUNTING
122
WASHER , Replaced By: N000125010532
125
NUT STRAP TO BRACKET
125
NUT , Replaced By: N910113010000
