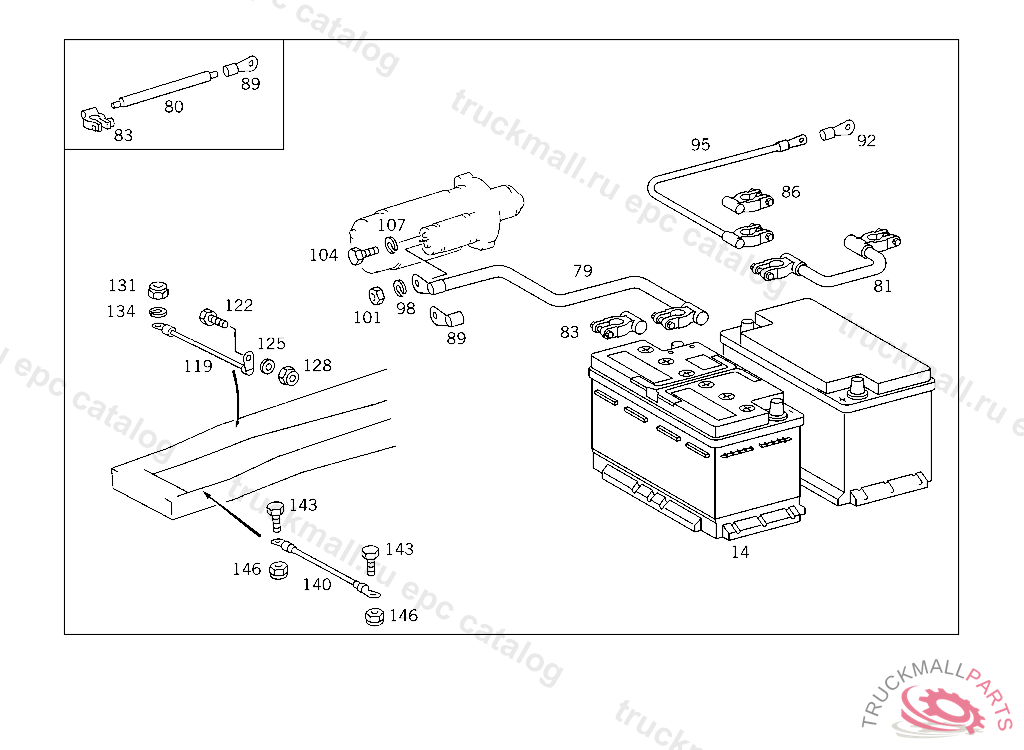

Поз.
Артикул
Описание
14
BATTERY , Replaced By: A0045413101
14
BATTERY12V/88AH, Replaced By: A0009823808
14
BATTERY12V/88AH
14
BATTERY , Replaced By: A0045413001
14
BATTERY FILLED AND CHARGED 12V/88AH
14
BATTERY FILLED AND CHARGED 12V/115AH
14
BATTERY FILLED AND CHARGED 12V/140AH
79
POSITIVE CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
81
POSITIVE CABLE FROM BATTERY I TO BATTERY II
83
SOLDERING TERMINAL POS. POLE
86
SOLDERING TERMINAL POS. POLE
89
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
92
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
95
GROUND STRAP FROM BATTERY TO GROUND AT SIDE MEMBER
98
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
101
NUT , Replaced By: N304035010001
101
NUT
104
SCREW EXHAUST BRAKE SEPARATION POINT
107
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
119
GROUND STRAP FROM STARTING MOTOR TO SIDE MEMBER
122
SCREW END PIECE TO EXHAUST PIPE M 10X25
125
WASHER , Replaced By: N000125010532
125
WASHER RADIATOR TO RUBBER MOUNTING
125
WASHER , Replaced By: N000125015019
125
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
128
NUT , Replaced By: N910113010000
128
NUT STRAP TO BRACKET
131
NUT , Replaced By: N304035010001
131
NUT
134
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
140
ELECTRIC CABLE GROUND CABLE
143
SCREW , Replaced By: A0079900801
143
SCREW REDUCTION VALVE TO BRACKET
143
SCREW , Replaced By: N304017008021
143
SCREW PIPE CLAMP
146
NUT , Replaced By: N913004008001
999
THREADED UNION TERMINAL 30,CABLE TO STARTING MOTOR,K 199371
999
LOCK PLATE RELEASE LEVER TO SHAFT
