Поз.
Артикул
Описание
5

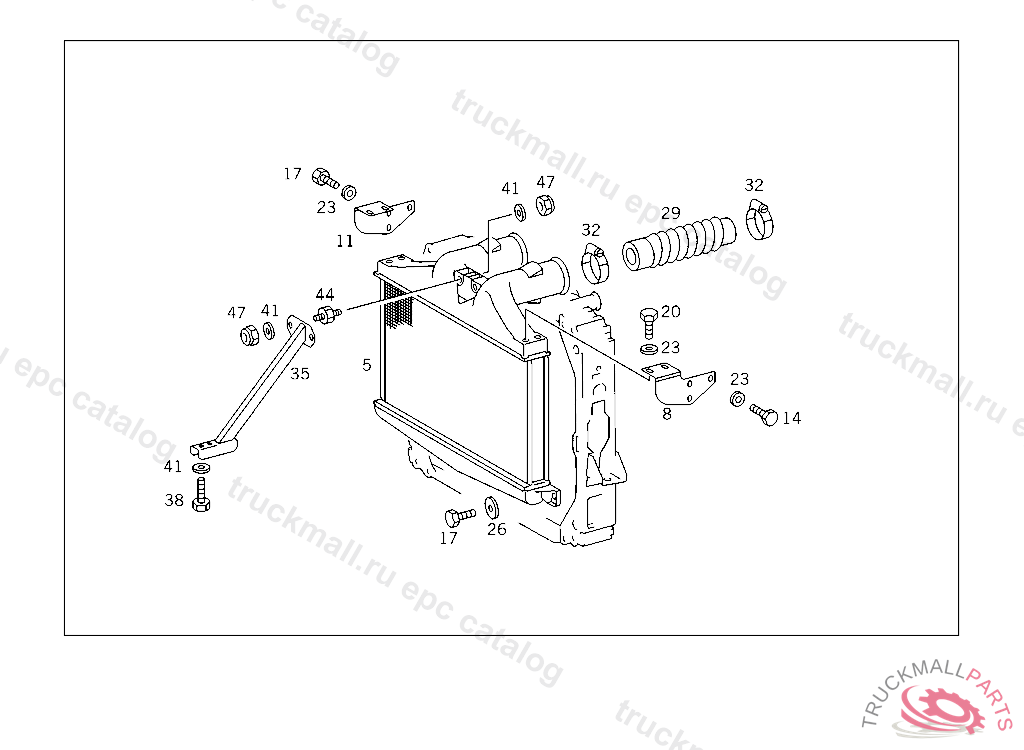

RADIATOR (CHARGING AIR INTERCOOLER)
8
BRACKET RADIATOR,LEFT
11
BRACKET RADIATOR,RIGHT
14
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
14
SCREW , Replaced By: N304017008016
17
SCREW , Replaced By: A0079900801
17
SCREW REDUCTION VALVE TO BRACKET
20
SCREW , Replaced By: N304017008039
20
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
23
WASHER EXHAUST MUFFLER TO STRAP
23
WASHER , Replaced By: N000125008443
26
WASHER BRACKET TO LEFT SIDE MEMBER
26
WASHER , Replaced By: N009021008213
26
WASHER BRACKET TO CAB REAR PANEL
29
HOSE AT CHARGING AIR INTERCOOLER
29
HOSE FROM CHARGING AIR INTERCOOLER TO AIR INTAKE PIPE
32
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
32
CLAMP , Replaced By: N000000000674
32
LOOM TIE. CLAMP HOSE TO RADIATOR AND TO ENGINE
35
RADIATOR STRUT CHARGE AIR INTERCOOLER
38
SCREW , Replaced By: N304017008021
38
SCREW PIPE CLAMP
41
WASHER , Replaced By: N000125008443
41
WASHER EXHAUST MUFFLER TO STRAP
44
RUBBER BUFFER COVERING TO FRAME
47
NUT , Replaced By: N913004008001
999
SCREW WATER DRAIN
