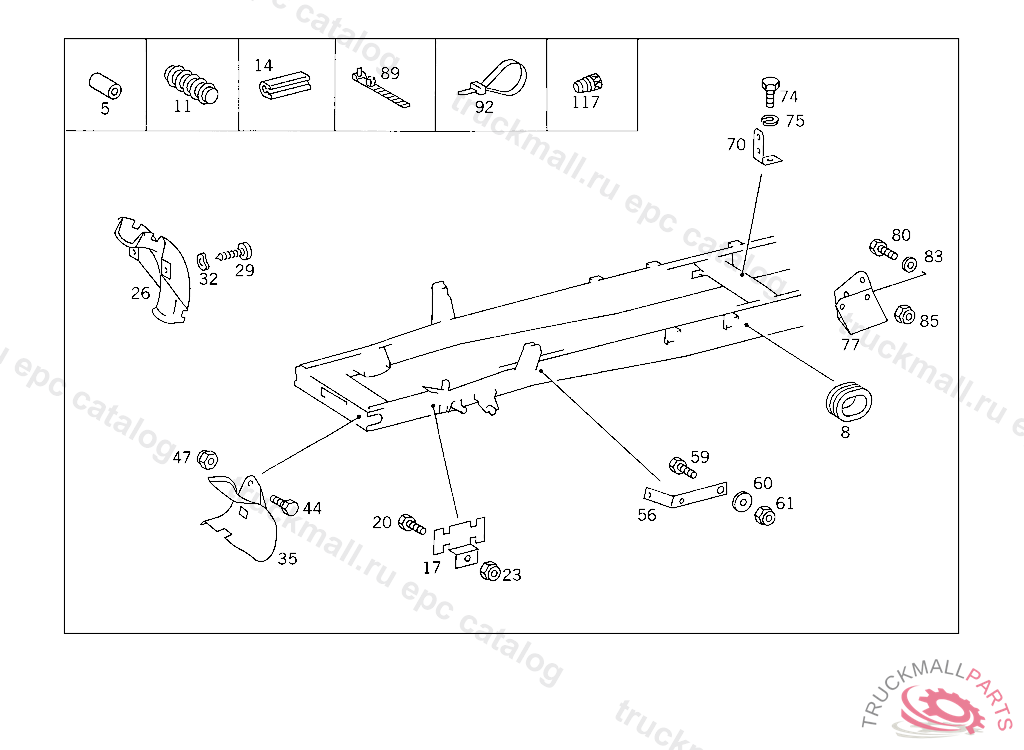

Поз.
Артикул
Описание
5
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
5
GROMMET CABLE HARNESS THRU SIDE MEMBER
8
GROMMET FOR PASSAGE OF LINE
8
GROMMET BATTERY CABLE THRU SIDE MEMBER
11
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
14
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
14
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
14
EDGE GUARD SECTION , Replaced By: A0029873572
17
BRACKET BREATHER LINE TO SIDE MEMBER
20
SCREW BRACKET TO CROSS CONNECTION STRUT
20
SCREW , Replaced By: N304017008034
23
NUT , Replaced By: N913004008001
26
BRACKET COMPRESSED AIR LINE TO CAB
29
SHEET METAL SCREW BRACKET TO CAB
32
SPRING WASHER LICENSE PLATE TO BRACKET
35
BRACKET CABLE HARNESS
35
BRACKET , Replaced By: A6735402673
35
BRACKET LEFT
44
SCREW END PIECE TO EXHAUST PIPE M 10X25
44
SCREW END PIECE TO EXHAUST PIPE M 10X25
47
NUT STRAP TO BRACKET
47
NUT STRAP TO BRACKET
47
NUT , Replaced By: N910113010000
56
BRACKET LINE MOUNTING
56
BRACKET ,5 177249, Replaced By: A6734291840, +002A6739901040, +002N000961012097, +002N913004012008
59
SCREW , Replaced By: N308676012026
59
SCREW BRACKET TO FRAME SIDE MEMBER
59
SCREW PIPE CLAMP
59
SCREW , Replaced By: N304017008021
59
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
59
SCREW , Replaced By: N304017008027
60
WASHER BRACKET TO FRAME
61
NUT SUPPORT TO SIDE MEMBER
61
NUT END PIECE TO EXHAUST PIPE
61
NUT , Replaced By: N913004008001
70
BRACKET FUEL LINES TO TRANSMISSION
70
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
70
BRACKET , Replaced By: A3604292940
70
BRACKET , Replaced By: A3604292440
74
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
74
SCREW , Replaced By: N304017008039
75
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
77
BRACKET COMPRESSED AIR LINE
80
SCREW END PIECE TO EXHAUST PIPE M 10X25
83
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
83
WASHER , Replaced By: N006902011102
83
WASHER , Replaced By: N006902011100
85
NUT STRAP TO BRACKET
85
NUT , Replaced By: N910113010000
89
LOOM TIE
89
LOOM TIE , Replaced By: A1149970590
92
LOOM TIE LINE MOUNTING
92
LOOM TIE LINE MOUNTING 280 MM
117
PLUG
999
CLAMP BRAKE HOSE
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
999
CLAMP BRAKE HOSE
