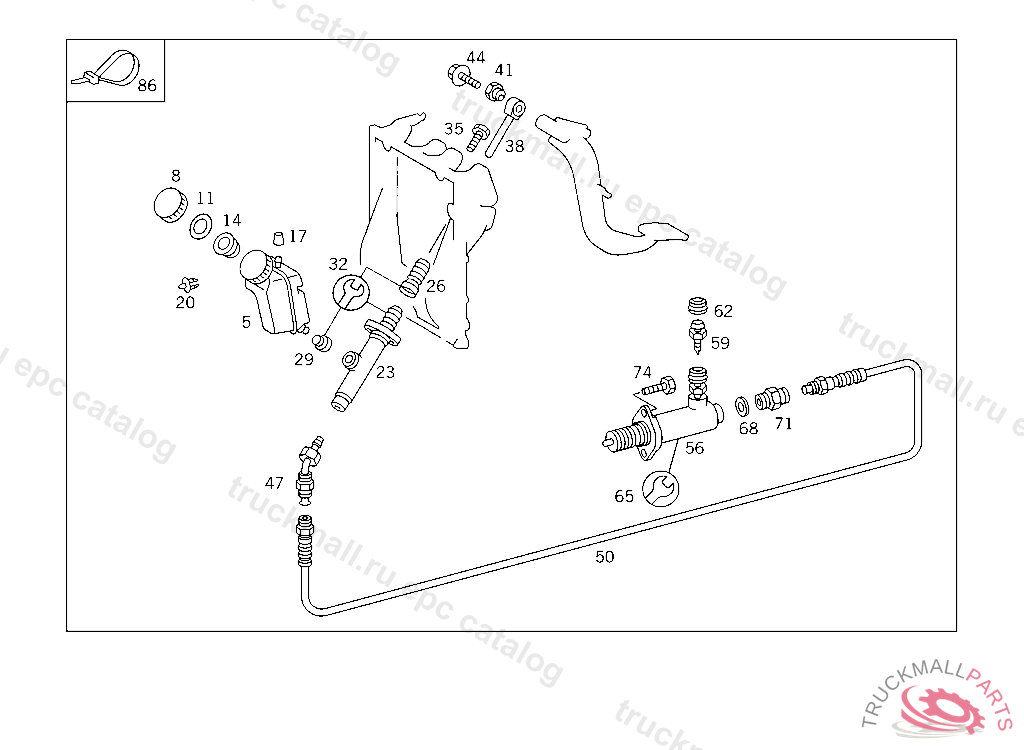

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
RIVET RESERVOIR TO FIRE WALL
23
MASTER CYLINDER CLUTCH
26
BOOT
29
PLUG
32
REPAIR KIT CLUTCH MASTER CYLINDER
35
SCREW AT FILTER BRACKET
38
ROD CLUTCH MASTER CYLINDER,5 366604
41
BUSHING PISTON ROD TO CLUTCH PEDAL
44
SCREW BRACKET TO FRAME M 8X35
47
LINE , Replaced By: A0004290801, +001A0004281072, +001N003861008005, +001N915017008100
47
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
50
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
50
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
56
SLAVE CYLINDER CLUTCH, RECOMMENDED FOR TAKING ON STOCK
56
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 239319, Replaced By: A0022951707
59
VALVE CLUTCH SLAVE CYLINDER
62
PROTECTIVE CAP ,5 962906
62
PROTECTIVE CAP , Replaced By: A0004217187
65
REPAIR KIT CLUTCH SLAVE CYLINDER, RECOMMENDED FOR TAKING ON STOCK
68
SEAL RING LINE CONNECTION
68
SEAL RING LINE CONNECTION
71
SCREW-IN FITTING LINE CONNECTION
74
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
86
LOOM TIE LINE MOUNTING 280 MM
