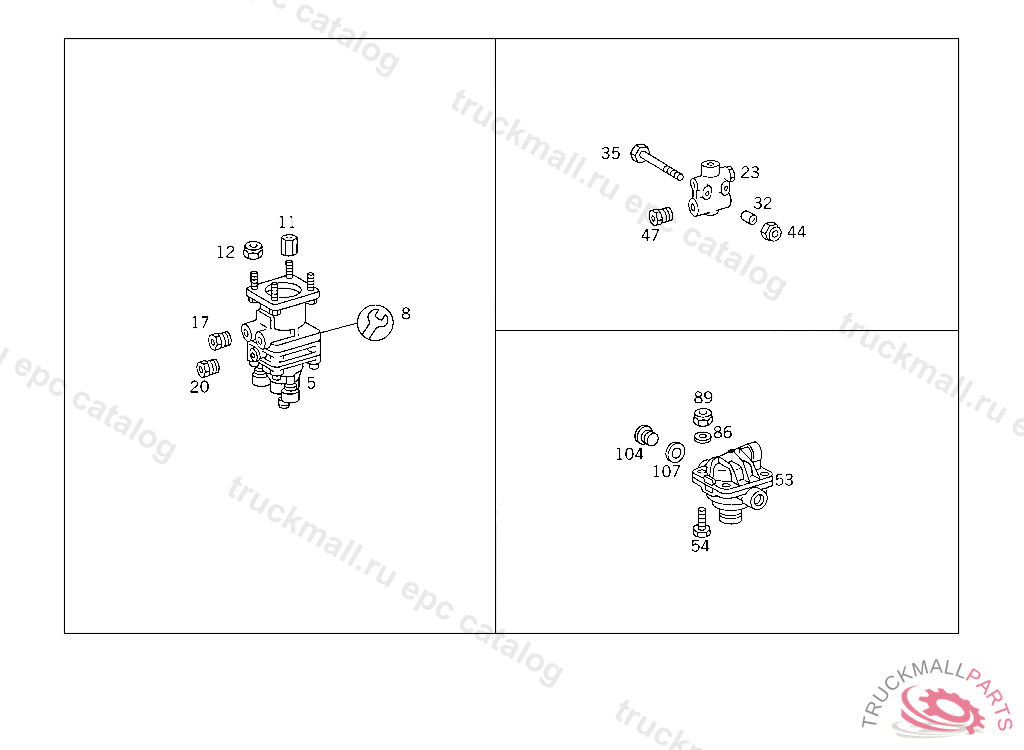

Поз.
Артикул
Описание
5
BRAKE VALVE (TWO-CIRCUIT BRAKE VALVE) KNORR
5
BRAKE VALVE (TWO-CIRCUIT BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE VALVE (TWO-CIRCUIT BRAKE VALVE) WABCO
8
REPAIR KIT SERVICE BRAKE VALVE BOSCH
8
REPAIR KIT SERVICE BRAKE VALVE BOSCH, Replaced By: A0004303506
8
REPAIR KITWABCO
8
REPAIR KIT , Replaced By: A0004308306
11
NUT , Replaced By: N913004008004
12
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
12
NUT , Replaced By: N913004008001
17
SCREW. UNION SCREW LINE CONNECTION
20
SCREW. UNION SCREW LINE CONNECTION
20
SCREW. UNION SCREW , Replaced By: A0009973734
23
DISTRIBUTOR LESS CHECK VALVE
32
GUIDE BUSHING TWO-WAY VALVE TO FRAME
32
SPACER TUBE , Replaced By: A3094310249
35
SCREW DISTRIBUTOR TO FRAME SIDE MEMBER
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT , Replaced By: N913004008001
47
SCREW. UNION SCREW LINE CONNECTION
53
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
53
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
54
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
54
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
54
SCREW BRACKET TO SIDE MEMBER
54
SCREW , Replaced By: N304017008040
86
WASHER EXHAUST MUFFLER TO STRAP
86
WASHER , Replaced By: N000125008443
89
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
89
NUT , Replaced By: N913004008001
104
SCREW. UNION SCREW LINE CONNECTION
104
SCREW. UNION SCREW , Replaced By: A0009973734
104
SCREW. UNION SCREW LINE CONNECTION
104
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
104
SCREW PLUG , Replaced By: N000908022011
107
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
