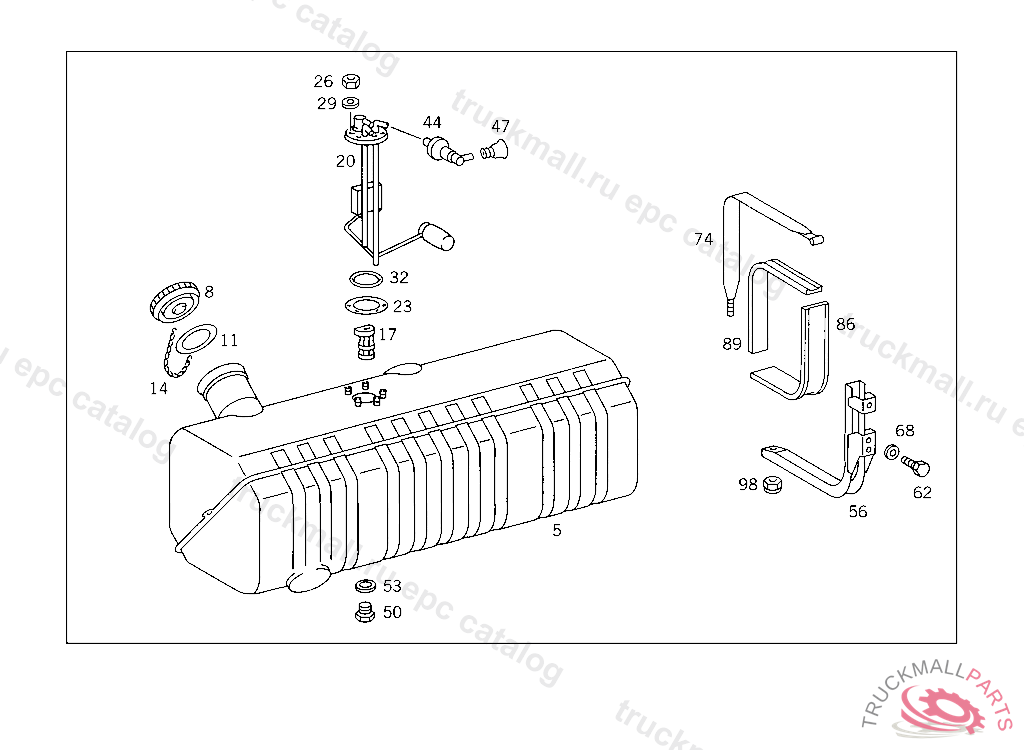

Поз.
Артикул
Описание
5
FUEL TANK105L
5
FUEL TANK , Replaced By: A6734701001
5
FUEL TANK105 L,5 218303
8
FILLER CAP
8
FILLER CAP , Replaced By: A0004700305
8
FILLER CAP , Replaced By: A0004700305
8
FILLER CAP , Replaced By: A0004700305
11
SEAL RING
14
CHAIN FILLER CAP
17
FUEL STRAINER FUEL GAUGE SENDER UNIT TO FUEL TANK
20
SENDER UNIT FUEL GAUGE,5 218304
20
SENDER UNIT FUEL GAUGE,5 218303
23
GASKET SENDER UNIT AND COVER TO FUEL TANK
26
NUT TACHOGRAPH TO BRACKET
29
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
32
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
44
VALVE BREATHER LINE,K 169122
44
VALVE ,K 169122
44
VALVE BREATHER LINE,K 169122
44
VALVE ,K 169122
47
BOOT CHECK VALVE,K 169122
50
SCREW PLUG FUEL TANK
50
SCREW PLUG , Replaced By: N007604014110
53
SEAL RING CLUTCH BOOSTER
56
SUPPORT FRONT AND REAR
62
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
62
SCREW , Replaced By: N308676012026
62
SCREW CONSOLE TO SIDE MEMBER
68
WASHER FRONT CONSOLE
68
WASHER BRACKET TO FRAME
74
STRAP , Replaced By: A6734300040
86
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
89
PAD EXPANSION TANK TO SUPPORT
98
NUT STRAP TO BRACKET
98
NUT , Replaced By: N910113010000
